ADIS16260/PCB
ADIS16260 Daughter Board
トップへ
製品概要
製品概要

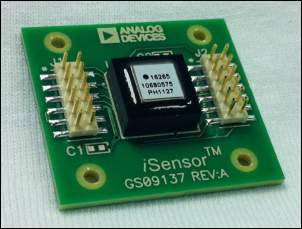

The ADIS16260/PCBZ is a breakout board that provides (1) ADIS16260BCCZ and (1) interface PCB to simplify the process of prototyping during the early stages of system design and evaluation. The ADIS16260BCCZis a fully-calibrated, digital MEMS gyroscope, which provides a serial peripheral interface (SPI) for all digital communications. It is in a 20-lead, LGA package that minimizes board space but does not support typical prototype soldering processes. The interface PCB provides access to the ADIS16260BCCZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.
関連資料
-
UG-363: ADISUSBZ iSensor 評価システム2012/01/18PDF933 kB
-
ADIS16260/ADIS16265/PCBZ Data Sheet (Rev. E)2016/06/14PDF395 K
-
LabVIEW Reference Design for ADIS16260 and ADIS162652016/06/14
-
iSensor® 評価用ツール2016/06/10
-
ADISUSBZ iSensor® PC-USB Evaluation System (Rev. PrA)2014/12/19PDF1 M
-
Linux Reference Design for ADIS162652011/11/10WIKI
-
ADIS1626x Evaluation Board/Tool Overview2009/10/26PDF999 kB
-
iSensor® Evaluation Tools Presentation2008/12/18PDF1405 kB
