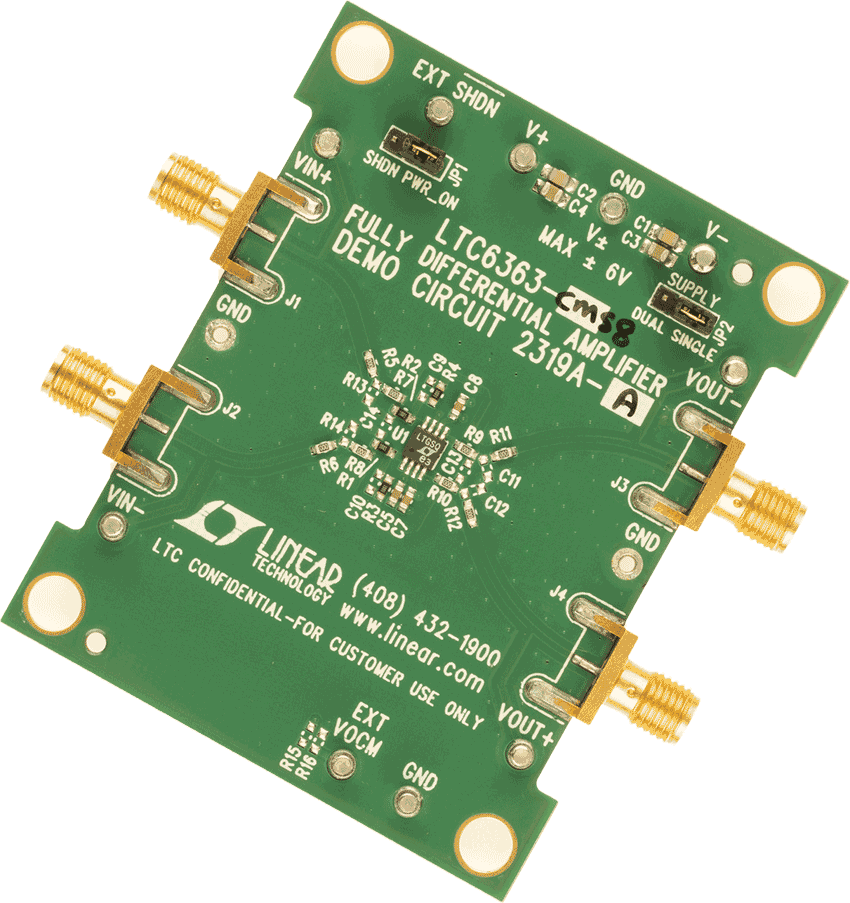

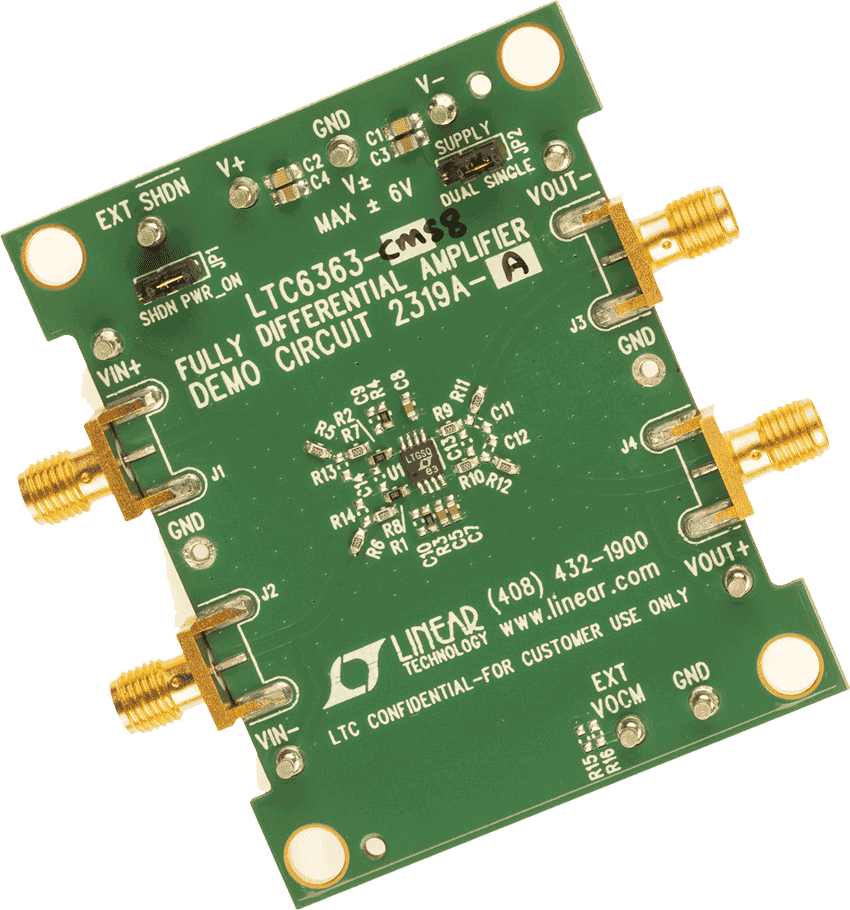

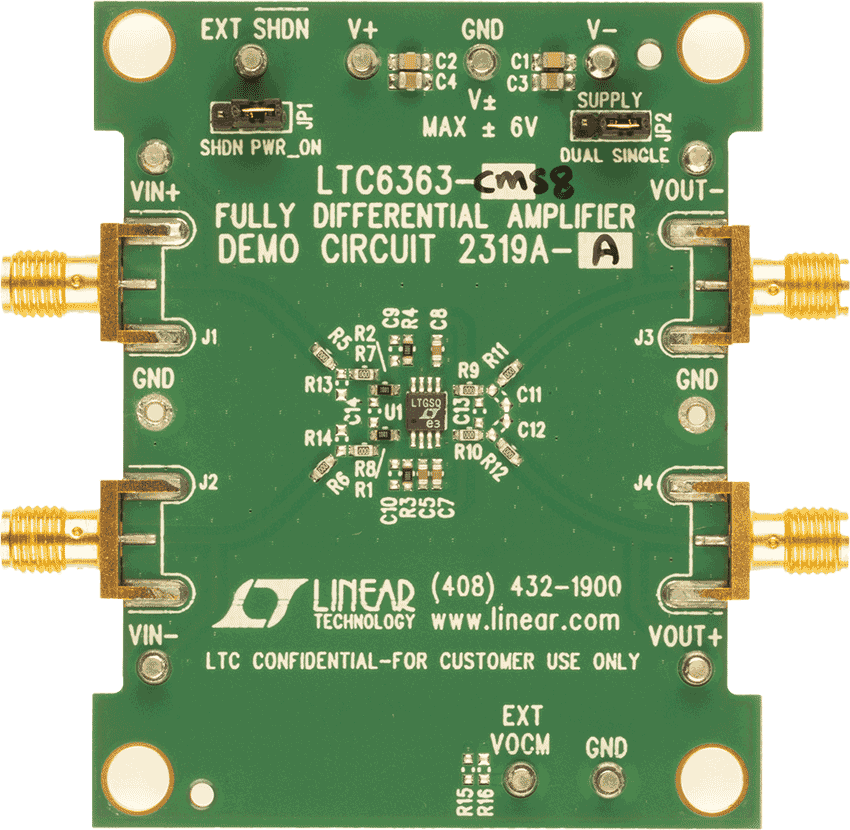

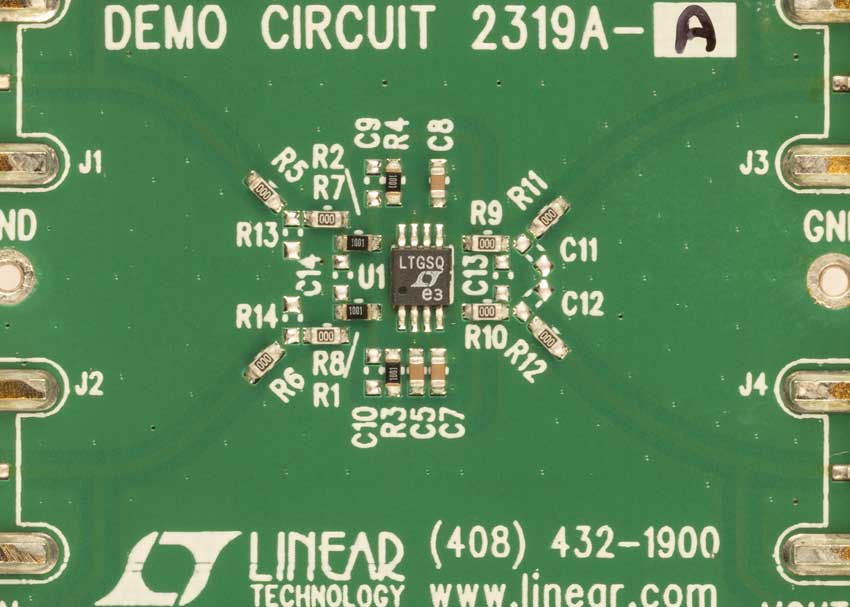

DC2319A-A
LTC6363 Differential Op Amp/ADC Driver Demo Board
トップへ
製品概要
製品概要
The LTC6363 is a low power, low noise differential op amp with rail-to-rail output swing and good DC accuracy. The amplifier may be configured to process a fully differential input signal or to convert a single-ended input signal to a differential output signal. The differential outputs of the DC2319A can be configured with a first order RC network for driving the differential inputs of an ADC.
関連資料
-
DC2319A - Schematic2015/11/10PDF89K
-
DC2319A - Demo Manual2015/11/10PDF447K
-
DC2319A - Design Files2015/11/10ZIP962K
