MAX30210

• Temperature Sensor
  • High Accuracy and Precision
    • ±0.1°C accuracy from +20°C to +50°C
    • ±0.15°C accuracy from -20°C to +85°C
  • Safety and Compliance
    • High and low temperature alarms
• Accelerometer
  • Built-in motion detection features make tap, double-tap, activity, inactivity, and free-fall detection trivial
  • Multipurpose accelerometer with 10- to 13-bit resolution for use in a wide variety of applications
• Inclinometer
  • Digital self-test function
  • Configurable alarm function
  • ±180 output format option

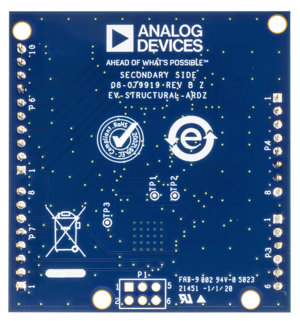

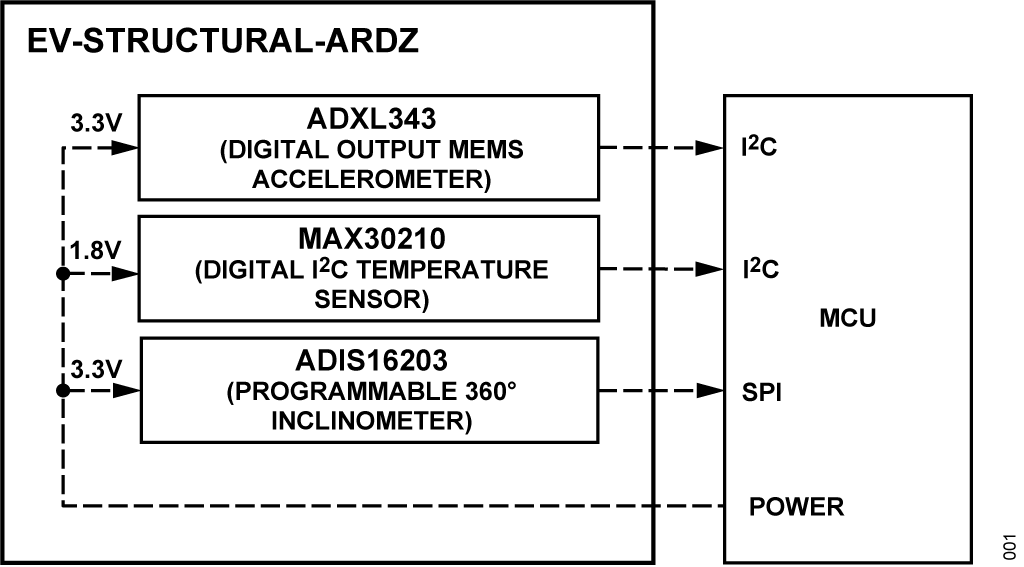

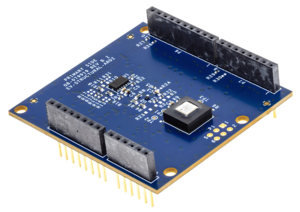

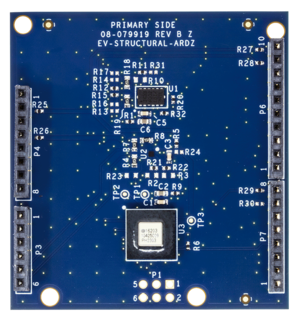

The EV-STRUCTURAL-ARDZ is a vibration sensor that uses the ADXL343 digital output MEMS accelerometer chip and the ADIS16203 programmable 360° inclinometer. Aside from providing vibration data, this sensor node also features the MAX30210 digital temperature sensor which gives the option to shut down sensitive machines and equipment for smart motor sensing applications.

The on-board inclinometer can be used to detect if the horizontal position of the sensor changes, which points towards a collapse of the structure where the sensor was deployed.

APPLICATIONS

• Structural health sensor
• Tilt sensing, inclinometers
• Platform control, stabilization, and leveling
• Motion/position measurement
• Monitor/alarm devices (security, medical, safety)

• Monitors the health and vitality of livestock in real-time, enabling farmers to quickly treat animals and prevent the spread of illness or disease.
• Tracks grazing animals to prevent loss and to identify grazing patterns.
• Gathers and analyzes historical data to identify trends in cattle health or to track the spread of illness.
• Monitors readiness to mate or give birth, preventing the loss of new calves and optimizing breeding practices.

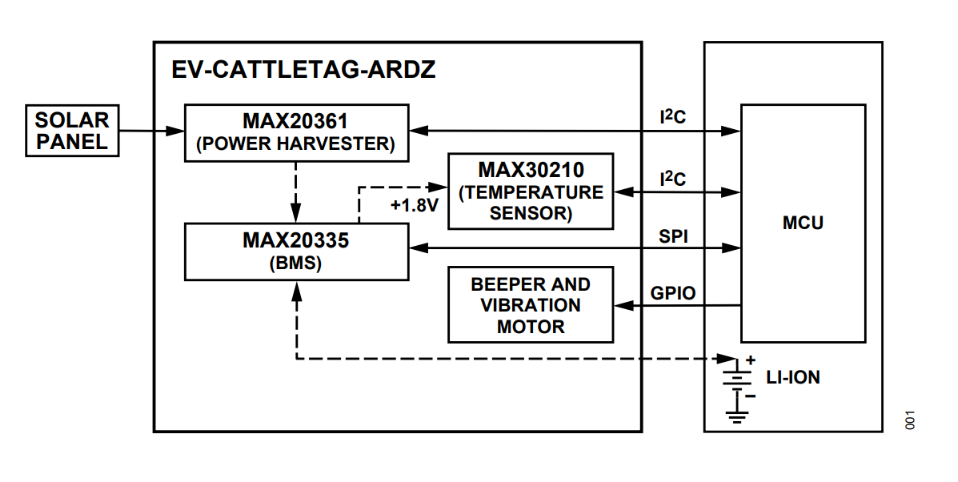

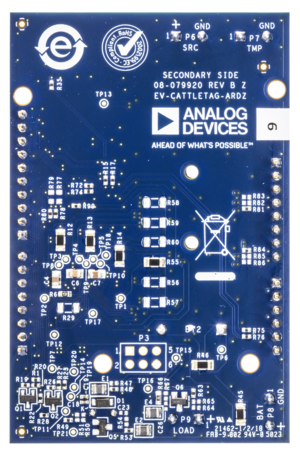

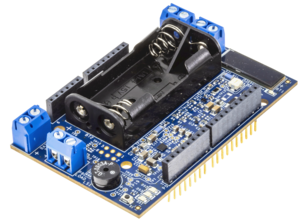

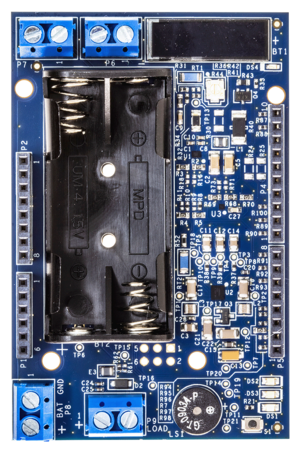

The EV-CATTLETAG-ARDZ is an Arduino board with a fully integrated solution for harvesting energy from single-/multi-cell solar sources. The device includes battery chargers for small lithium-ion systems, and a digital temperature sensor for applications such as Wearables and IoT. The board has an on-board MAX20335 BMS device, a MAX30210 temperature sensor, and a buzzer with a vibration motor option.

APPLICATIONS

• Asset location
• Asset recovery
• Asset traceability
• Inventory management

• フレキシブルPCB設計

  • 低い熱質量で高速な応答時間を実現
  • 外部回路から離れた位置での温度センシング
• テスト・ポイントへの容易なアクセス
• 完全実装および試験済み
• Windows^® 7、8、10互換のソフトウェア

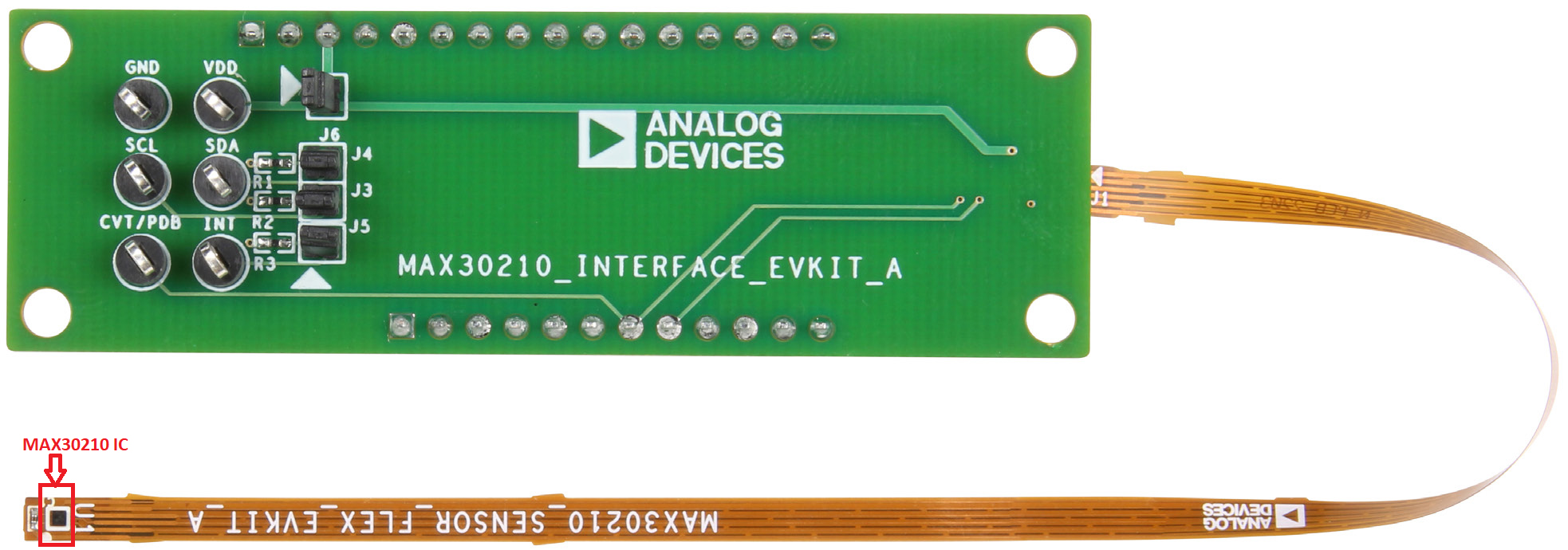

MAX30210評価用キット（EVキット）は、±0.1°C精度の温度センサーMAX30210を評価できる単一のプラットフォームを提供します。このEVキットは、ヘッダを介して接続される2つのボード、MAX32630FTHRマイクロコントローラ・ボードとMAX30210インターフェース・ボードで構成されます。また、MAX30210 ICを保持するフレキシブルPCBも付属しています。MAX32630FTHRには、PC GUIプログラムを使用するために必要なファームウェアが搭載されており、MAX30210インターフェース・ボードに電力を供給します。MAX30210インターフェース・ボードはジャンパが取り付けられた状態で出荷されるため、MAX30210の評価をすぐに開始できます。
