HMC545
HMC545
製造中止SPDT Switch SMT, DC - 3 GHz
Viewing:
製品の詳細
- Low Insertion Loss: 0.25 dB
- High Input IP3: +65 dBm
- Low DC Power Consumption
- Positive Control: 0/+3V to 0/+8V
- Ultra Small Package: SOT26

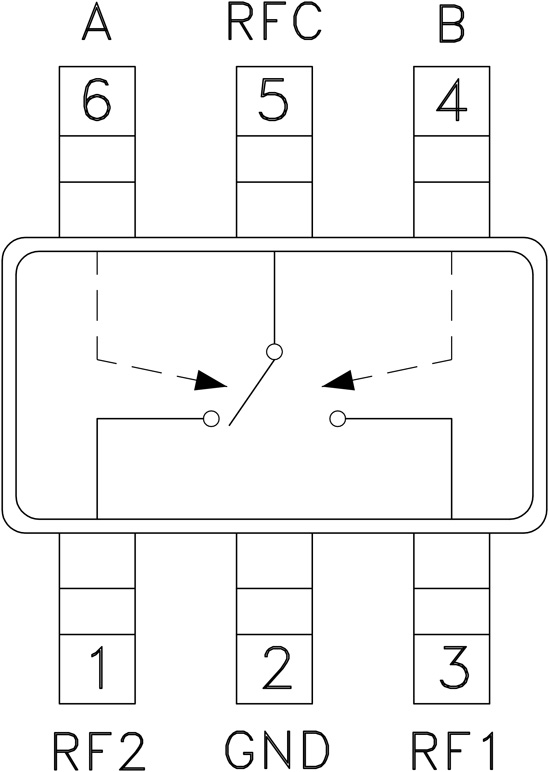

The HMC545(E) is a low-cost SPDT switch in 6-lead SOT26 plastic package for use in general switching applications which require very low insertion loss and very small size. With 0.25 dB typical loss, these devices can control signals from DC to 3.0 GHz and are especially suited for IF and RF applications including Cellular/3G, ISM, automotive and portables. The design provides exceptional insertion loss performance, ideal for filter and receiver switching. RF1 and RF2 are reflective shorts when “Off”. The two control voltages require a minimal amount of DC current and offer compatibility with CMOS and some TTL logic families.
Applications
- Cellular/3G Infrastructure
- Private Mobile Radio Handsets
- WLAN, WiMAX & WiBro
- Automotive Telematics
- Test Equipment
推奨代替製品
スイッチ、GaAs、MMIC、SPDT、DC～3GHz
ドキュメント
製造中止品のデータシート 1
品質関連資料 4
テープ＆リール仕様 1
これは最新改訂バージョンのデータシートです。
ツールおよびシミュレーション
Sパラメータ 1
評価用キット
HMC545 Evaluation Board
