ADSP-2183x/SC83x SHARC-FXシリーズ、ADSP-2156xと比較して3.5倍以上のDSP性能を発揮し、SHARC+コアで3,500MIPSを超える拡張性を実現

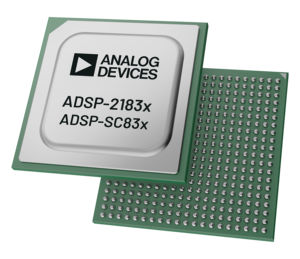

The ADSP-2183x/ADSP-SC83x digital signal processors (DSPs) are members of the SHARC^®-FX family of products. The SHARC-FX core uses a single-instruction, multiple-data (SIMD) vector floating-point architecture and can issue up to four instructions per cycle in most combinations. The SHARC-FX core inside the ADSP-2183x/ADSP-SC83x processors offers processing speeds of up to 1 GHz coupled with up to 2 MB of L2 memory for low latency applications. For applications seeking enhanced connectivity options such as Ethernet, the ADSP-SC834/SC835 includes an Arm^® Cortex^®-M33 in addition to the SHARC-FX core. All members of the SHARC-FX family have on-board IIR and FIR accelerators as well as an efficient auto-vectorizing compiler for C/C++ programming.

The SHARC-FX core supports scalar and vector operations on all data types in vectors up to 256 bits, including integer, fixed-point, floating-point, complex 16-bit/32-bit fixed-point and complex 32-bit/64-bit floating-point. Eight float32 multiply/accumulate operations are allowed per cycle, with no constraints on alignment. The SHARC-FX core also features large register sets (32 data registers), thus reducing the need for stack save and restore. The peripherals and system architecture of the ADSP-2183x/ADSP-SC83x processors are compatible with previous SHARC processors, allowing for easy application porting.

By integrating a set of industry-leading system peripherals and memory, this family of processors is the platform of choice for applications that require leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

Applications

• Automotive:
  • audio for head units and amplifiers, ANC/RNC, digital cockpit, ICC, AEC/Mic beamforming, ADAS
• Consumer:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays

The ADSP-2183x/ADSP-SC83x digital signal processors (DSPs) are members of the SHARC^®-FX family of products. The SHARC-FX core uses a single-instruction, multiple-data (SIMD) vector floating-point architecture and can issue up to four instructions per cycle in most combinations. The SHARC-FX core inside the ADSP-2183x/ADSP-SC83x processors offers processing speeds of up to 1 GHz coupled with up to 2 MB of L2 memory for low latency applications. For applications seeking enhanced connectivity options such as Ethernet, the ADSP-SC834/SC835 includes an Arm^® Cortex^®-M33 in addition to the SHARC-FX core. All members of the SHARC-FX family have on-board IIR and FIR accelerators as well as an efficient auto-vectorizing compiler for C/C++ programming.

The SHARC-FX core supports scalar and vector operations on all data types in vectors up to 256 bits, including integer, fixed-point, floating-point, complex 16-bit/32-bit fixed-point and complex 32-bit/64-bit floating-point. Eight float32 multiply/accumulate operations are allowed per cycle, with no constraints on alignment. The SHARC-FX core also features large register sets (32 data registers), thus reducing the need for stack save and restore. The peripherals and system architecture of the ADSP-2183x/ADSP-SC83x processors are compatible with previous SHARC processors, allowing for easy application porting.

By integrating a set of industry-leading system peripherals and memory, this family of processors is the platform of choice for applications that require leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

Applications

• Automotive:
  • audio for head units and amplifiers, ANC/RNC, digital cockpit, ICC, AEC/Mic beamforming, ADAS
• Consumer:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays

The ADSP-2183x/ADSP-SC83x digital signal processors (DSPs) are members of the SHARC^®-FX family of products. The SHARC-FX core uses a single-instruction, multiple-data (SIMD) vector floating-point architecture and can issue up to four instructions per cycle in most combinations. The SHARC-FX core inside the ADSP-2183x/ADSP-SC83x processors offers processing speeds of up to 1 GHz coupled with up to 2 MB of L2 memory for low latency applications. For applications seeking enhanced connectivity options such as Ethernet, the ADSP-SC834/SC835 includes an Arm^® Cortex^®-M33 in addition to the SHARC-FX core. All members of the SHARC-FX family have on-board IIR and FIR accelerators as well as an efficient auto-vectorizing compiler for C/C++ programming.

The SHARC-FX core supports scalar and vector operations on all data types in vectors up to 256 bits, including integer, fixed-point, floating-point, complex 16-bit/32-bit fixed-point and complex 32-bit/64-bit floating-point. Eight float32 multiply/accumulate operations are allowed per cycle, with no constraints on alignment. The SHARC-FX core also features large register sets (32 data registers), thus reducing the need for stack save and restore. The peripherals and system architecture of the ADSP-2183x/ADSP-SC83x processors are compatible with previous SHARC processors, allowing for easy application porting.

By integrating a set of industry-leading system peripherals and memory, this family of processors is the platform of choice for applications that require leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

Applications

• Automotive:
• audio for head units and amplifiers, ANC/RNC, digital cockpit, ICC, AEC/Mic beamforming, ADAS
• Consumer:
• speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays

The ADSP-2183x/ADSP-SC83x digital signal processors (DSPs) are members of the SHARC^®-FX family of products. The SHARC-FX core uses a single-instruction, multiple-data (SIMD) vector floating-point architecture and can issue up to four instructions per cycle in most combinations. The SHARC-FX core inside the ADSP-2183x/ADSP-SC83x processors offers processing speeds of up to 1 GHz coupled with up to 2 MB of L2 memory for low latency applications. For applications seeking enhanced connectivity options such as Ethernet, the ADSP-SC834/SC835 includes an Arm^® Cortex^®-M33 in addition to the SHARC-FX core. All members of the SHARC-FX family have on-board IIR and FIR accelerators as well as an efficient auto-vectorizing compiler for C/C++ programming.

The SHARC-FX core supports scalar and vector operations on all data types in vectors up to 256 bits, including integer, fixed-point, floating-point, complex 16-bit/32-bit fixed-point and complex 32-bit/64-bit floating-point. Eight float32 multiply/accumulate operations are allowed per cycle, with no constraints on alignment. The SHARC-FX core also features large register sets (32 data registers), thus reducing the need for stack save and restore. The peripherals and system architecture of the ADSP-2183x/ADSP-SC83x processors are compatible with previous SHARC processors, allowing for easy application porting.

By integrating a set of industry-leading system peripherals and memory, this family of processors is the platform of choice for applications that require leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

Applications

• Automotive:
  • audio for head units and amplifiers, ANC/RNC, digital cockpit, ICC, AEC/Mic beamforming, ADAS
• Consumer:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays

The ADSP-2183x/ADSP-SC83x digital signal processors (DSPs) are members of the SHARC^®-FX family of products. The SHARC-FX core uses a single-instruction, multiple-data (SIMD) vector floating-point architecture and can issue up to four instructions per cycle in most combinations. The SHARC-FX core inside the ADSP-2183x/ADSP-SC83x processors offers processing speeds of up to 1 GHz coupled with up to 2 MB of L2 memory for low latency applications. For applications seeking enhanced connectivity options such as Ethernet, the ADSP-SC834/SC835 includes an Arm^® Cortex^®-M33 in addition to the SHARC-FX core. All members of the SHARC-FX family have on-board IIR and FIR accelerators as well as an efficient auto-vectorizing compiler for C/C++ programming.

The SHARC-FX core supports scalar and vector operations on all data types in vectors up to 256 bits, including integer, fixed-point, floating-point, complex 16-bit/32-bit fixed-point and complex 32-bit/64-bit floating-point. Eight float32 multiply/accumulate operations are allowed per cycle, with no constraints on alignment. The SHARC-FX core also features large register sets (32 data registers), thus reducing the need for stack save and restore. The peripherals and system architecture of the ADSP-2183x/ADSP-SC83x processors are compatible with previous SHARC processors, allowing for easy application porting.

By integrating a set of industry-leading system peripherals and memory, this family of processors is the platform of choice for applications that require leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

Applications

• Automotive:
• audio for head units and amplifiers, ANC/RNC, digital cockpit, ICC, AEC/Mic beamforming, ADAS
• Consumer:
• speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays

The ADSP-2183x/ADSP-SC83x digital signal processors (DSPs) are members of the SHARC^®-FX family of products. The SHARC-FX core uses a single-instruction, multiple-data (SIMD) vector floating-point architecture and can issue up to four instructions per cycle in most combinations. The SHARC-FX core inside the ADSP-2183x/ADSP-SC83x processors offers processing speeds of up to 1 GHz coupled with up to 2 MB of L2 memory for low latency applications. For applications seeking enhanced connectivity options such as Ethernet, the ADSP-SC834/SC835 includes an Arm^® Cortex^®-M33 in addition to the SHARC-FX core. All members of the SHARC-FX family have on-board IIR and FIR accelerators as well as an efficient auto-vectorizing compiler for C/C++ programming.

The SHARC-FX core supports scalar and vector operations on all data types in vectors up to 256 bits, including integer, fixed-point, floating-point, complex 16-bit/32-bit fixed-point and complex 32-bit/64-bit floating-point. Eight float32 multiply/accumulate operations are allowed per cycle, with no constraints on alignment. The SHARC-FX core also features large register sets (32 data registers), thus reducing the need for stack save and restore. The peripherals and system architecture of the ADSP-2183x/ADSP-SC83x processors are compatible with previous SHARC processors, allowing for easy application porting.

By integrating a set of industry-leading system peripherals and memory, this family of processors is the platform of choice for applications that require leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

Applications

• Automotive:
  • audio for head units and amplifiers, ANC/RNC, digital cockpit, ICC, AEC/Mic beamforming, ADAS
• Consumer:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays

CrossCore Embedded Studioは、アナログ・デバイセズのBlackfin^®、SHARC^®、Arm^®の各プロセッサ・ファミリ向けに用意された、世界トップクラスの統合開発環境（IDE）です。このEclipse^™ベースのIDEは、アナログ・デバイセズの成熟した最新世代のコード作成ツールを採用しており、C/C++およびアセンブリ言語の編集、コード作成、デバッグを円滑にわかりやすくサポートします。

また、CrossCore Embedded Studioは、Blackfin開発者およびSHARC開発者に対し、ドライバ、サービス、アルゴリズム・ソフトウェア・モジュールについて高度に統合されたアドイン・サポートを提供します。そこには、オンチップおよびオフチップのペリフェラル、イーサネットおよびUSB用スタック、一般的なリアル・タイムのオペレーティング・システムやファイル・システムなどへのドライバ・サポートが含まれています。これによって、統合度の高いマルチコアの開発およびデバッグ・サポートを含む、使いやすい開発フレームワークがもたらされます。

FreeRTOSは、Real Time Engineers Ltdが提供する無償のスケーラブルなリアルタイム・オペレーティング・システムです。この製品によって、アナログ・デバイセズのADSP-BF7xx、ADSP-215xx、ADSP-SC5xx（ARM Cortex-A5およびSHARC+コア）プロセッサ・ファミリに対するサポートがFreeRTOS製品にも付加されます。

FreeRTOSは組み込みシステム用に開発された、メモリ消費の少ないオペレーティング・システムです。タイマー、イベント、ミューテックス、セマフォ・タスク、セマフォなどの多くの一般的なオペレーティング・システム・コンセプトをサポートします。これらはすべて動的または静的に作成できます。プリエンプティブまたは協調型に設定できるスケジューラがあり、オプションでタイム・スライシング機能が付属しています。

FreeRTOSは使用料が無料で、GPLライセンス不要で提供されています。

アナログ・デバイセズのプロセッサ向けFreeRTOSは、CrossCore Embedded Studioの開発環境でサポートされています。

アナログ・デバイセズのプロセッサ向けFreeRTOSには、ADSP-BF7xx、ADSP-215xx、ADSP-SC5xx（ARM Cortex-A5およびSHARC+コア）プロセッサ・ファミリをサポートするFreeRTOSコンテンツが追加されています。アナログ・デバイセズのプロセッサ向けFreeRTOSは、FreeRTOS製品の最上位にインストールされ、サポート対象ファミリの評価用ボードのための、すぐに使えるデモ例を備えています。

HCC EmbeddedのFATは、セクタベース・メディアのどのタイプともインターフェースできます。通常、これは、SD/MMCカード、コンパクト・フラッシュ・カード、USBメモリなどですが、論理セクタのアレイとして配列された任意のデバイスであっても構いません。

詳細については、HCC Embedded FATのページを参照してください。

革新的な設計アプローチにより、きわめて高いデータ転送レートが最小のシステム・リソース条件で実現されました。テストの結果、代表的なアプリケーション・シナリオで、パケット処理は比較対象とした組み込みスタックに比べ最大で4倍高速で、使用したROMは約14kBでした（LPC2468 MCUを使用した測定に基づく）。

RAM条件はアプリケーションのニーズによって大きく異なりますが、代表値としてはわずか12kBです。最小構成のUDPアプリケーションでは、ROMの使用量を5kB未満、RAMの使用量を数百バイト（およびネットワーク・バッファ）とすることが可能です。

詳細についてはHCC Embedded Networkingのページを参照してください。

このUSBホスト・スタックはスケーラブルです。多くのホスト・クラス・ドライバが含まれており、これにより組み込みホストは、メモリ、プリンタ、オーディオ・デバイス、ジョイスティック、仮想シリアル・ポート、ネットワーク・インターフェースなど、様々なUSBデバイスを制御できます。EHCI、OHCI、非標準の各USBホスト・コントローラに対応できます。

USBデバイス・スタックを使用することで、開発者は組み込みデバイスにUSBデバイスの機能を統合することができます。USBデバイス・スタックには多くのデバイス・クラス・ドライバがあり、メモリ、仮想シリアル・ポート、ジョイスティック、オーディオ・システム、またはネットワーク・カードなど、デバイスに複数の機能をもたらします。HCCは多くのUSBデバイス・コントローラを提供しています。

また、HCC Embeddedは、必要な機能をすべて備えたソフトウェアOTGスタックも提供しており、2つの接続デバイス間でどちらがホストとして動作するかを決定できるよう、SRPプロトコルやHNPプロトコルをサポートしています。

詳細については、HCC Embedded USBの概要ページを参照してください。

The ADSP21835W-EV-SOM enables evaluation and rapid prototyping of designs featuring the ADSP-2183x Family (ADSP-21834/ADSP-21835) of SHARC-FX audio processors. It provides an easy-to-use plug-n-play reference design with expansion capabilities to interface to custom hardware ahead of the release of the processor itself. When the ADSP21835-EV-SOM board is plugged into the EV-SOMCRR-EZKIT or EV-SOMCRR-EZLITE carrier board, the resulting EZ-KIT^® evaluation system can be used for fast and easy evaluation of the processor core and system peripherals/interfaces.

The ADSP21835-EV-SOM enables rapid prototyping for a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS) and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players, etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. ADI also offers 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families. Please visit ADI’s Software Solutions page for more information.

The ADSP21835-EV-SOM module utilizes the CrossCore^® Embedded Studio (CCES) development tools to enable developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers

The ADSPSC835W-EV-SOM enables evaluation and rapid prototyping of designs featuring the ADSP-SC83x/2183x Family (ADSP-SC834/ADSP-SC835/ADSP-21836/ADSP-21837) of SHARC-FX audio processors. It provides an easy-to-use plug-n-play reference design with expansion capabilities to interface to custom hardware ahead of the release of the processor itself. When the ADSP21835-EV-SOM board is plugged into the EV-SOMCRR-EZKIT or EV-SOMCRR-EZLITE carrier board, the resulting EZ-KIT^® evaluation system can be used for fast and easy evaluation of the processor core and system peripherals/interfaces.

The ADSP21835-EV-SOM enables rapid prototyping for a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS) and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players, etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. ADI also offers 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families. Please visit ADI’s Software Solutions page for more information.

The ADSP21835-EV-SOM module utilizes the CrossCore^® Embedded Studio (CCES) development tools to enable developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers

EV-SOMCRR-EZKITキャリア・ボードは、（例えばEV-21569-SOMなど）アナログ・デバイセズのいずれのシステム・オン・モジュール（SoM）ボードともプラグアンドプレイ式に使用できます。これを用いることで、アナログ・デバイセズのSHARC+オーディオ・プロセッサを備えた非常に一般的な周辺機器やインターフェース（例えばAudio、Ethernet、MLB、USB、CANなど）を評価できます。また、ICEエミュレータを内蔵しているため、外部エミュレータを用いる必要がなく、コストを更に節約できます。最後に、EV-SOMCRR-EZKITキャリア・ボードは外部のA²Bボードにも接続できるため、ユーザのシステムのアプリケーションを容易に拡張できます。

サポート対象のSOMボードに取り付ける場合、EV-SOMCRR-EZKITキャリア・ボードはCrossCore^® Embedded Studio（CCES）開発ツールを使用しているため、市場投入までの時間を短縮できます。開発環境は、次のような高度なアプリケーションのコード開発とデバッグを容易にします。

• C++、C、およびアセンブリで書かれたアプリケーション・プログラムの作成、コンパイル、アセンブル、およびリンク
• アプリケーション・プログラムのロード、実行、ステップ実行、一時停止、およびブレークポイントの設定
• データおよびプログラム・メモリの読出しと書込み
• コアおよび周辺機器レジスタの読出しと書込み
