MAX1797

PRODUCTION

Low-Supply Current, Step-Up DC-DC Converters with True Shutdown

Low-Supply Current Step-Up DC-DC Converter with True-Shutdown™

Data Sheet (Rev. 0) Product Selection Table
Part Models
2
1ku List Price
Starting From $2.60
Viewing:

Part Details

  • > 95% Efficiency
  • True-Shutdown Circuitry
    • Output Disconnects from Input in Shutdown
    • No External Schottky Diode Needed
  • 25µA Quiescent Supply Current
  • Low-Noise Antiringing Feature
  • LBI/LBO Comparator Enabled in Shutdown
  • 2µA Shutdown Current
  • 8-Pin µMAX Package
MAX1797
Low-Supply Current, Step-Up DC-DC Converters with True Shutdown

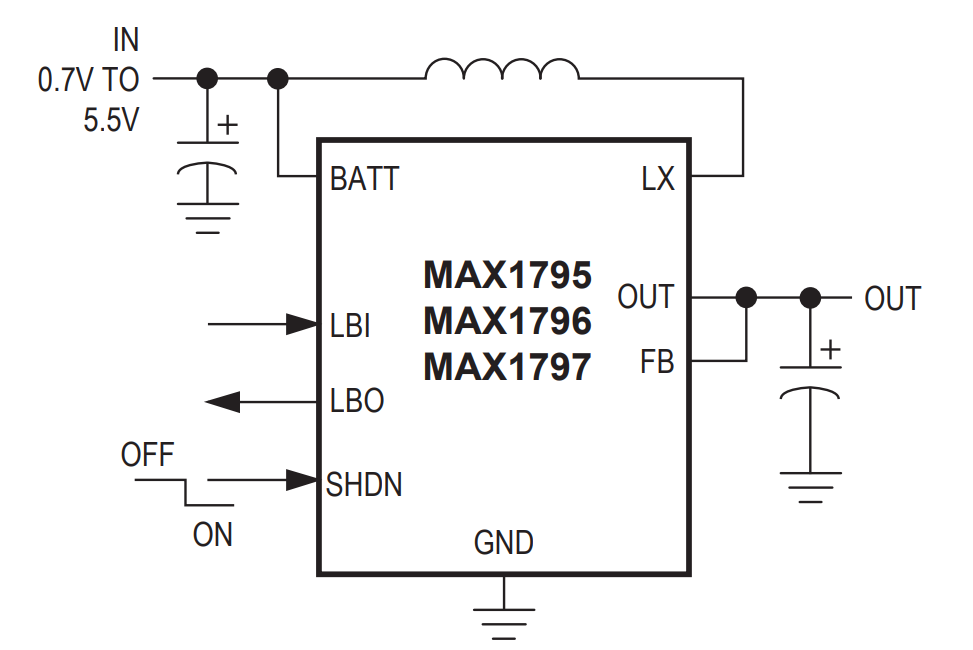

max1797 typical application circuit MAX1795, MAX1796, MAX1797: Functional Diagram
