HMC522

Obsolete

HMC522 / HMC522LC4

GaAs monolithic microwave integrated circuit (MMIC) I/Q mixer, image reject mixer (IRM) chip and surface mount technology (SMT), 11 GHz to 16 GHz

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: price unavailable

Viewing:

Part Details

Wide intermediate frequency (IF) bandwidth: dc to 3.5 GHz
Image rejection: 35 dB
Local oscillator (LO) to radio frequency (RF) isolation:
45 dB

High input IP3: 24 dBm
RoHS compliant 4 mm × 4 mm SMT package
Die size (HMC522): 1.49 mm × 1.14 mm × 0.1 mm

Suggested Replacement Parts

6 GHz to 26.5 GHz, Wideband I/Q Mixer

Part Models: 4
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC522LC4 Data Sheet 04/14/2015

Obsolete Data Sheet 1

HMC522 Die Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

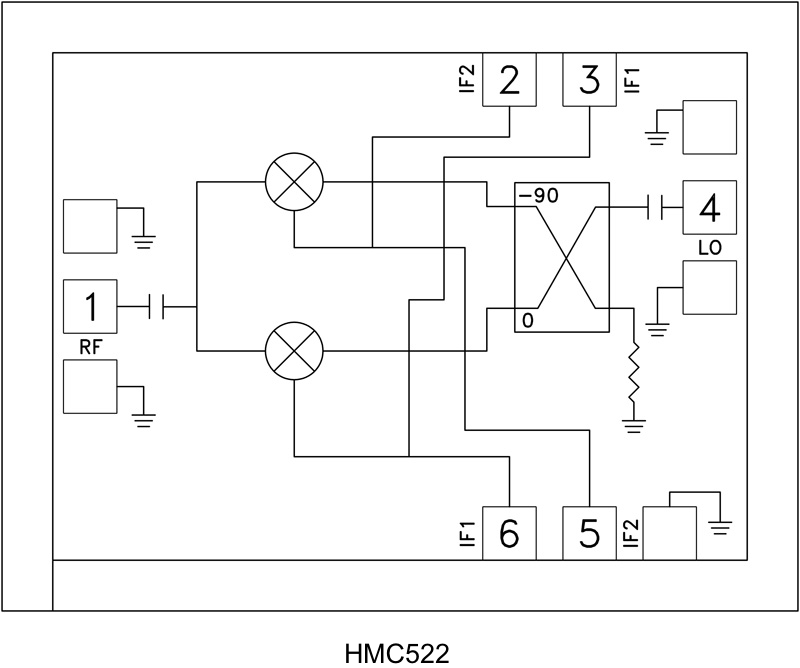

HMC522	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys

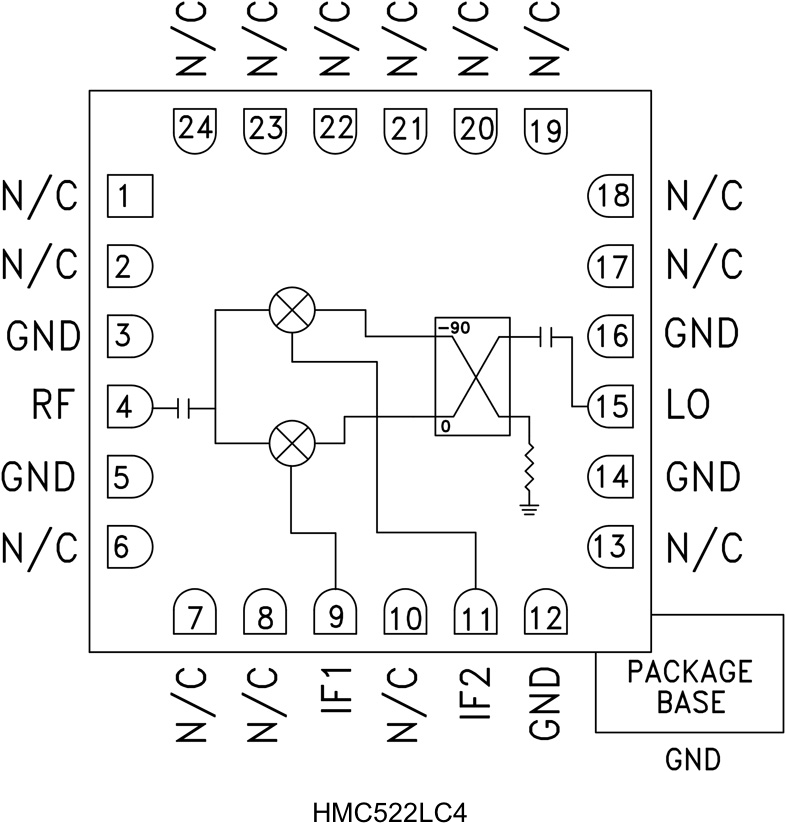

HMC522LC4	24-Lead LCC (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC522LC4TR	24-Lead LCC (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC522LC4TR-R5	24-Lead LCC (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC522	LAST TIME BUY
HMC522LC4	LAST TIME BUY
HMC522LC4TR	LAST TIME BUY

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
HMC8191	RECOMMENDED FOR NEW DESIGNS	6 GHz to 26.5 GHz, Wideband I/Q Mixer

Tools & Simulations

S-Parameter 1

HMC522 S-Parameters
