PD-1161
量产NEMA 23 smart stepper motor 9 to 51V, 55Ncm, 256 µSteps, with USB, S/D and RS485 interface, SensOstep, StallGuard2 and CoolStep
- 产品模型
- 4
产品详情
- Motion profile calculation in real-time
- On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
- High performance microcontroller for overall system control and serial communication protocol handling
- Up to 256 microsteps per full step
- High-efficient operation, low power dissipation
- Dynamic current control
- Integrated protection
- StallGuard2™ feature for stall detection
- CoolStep™ feature for reduced power consumption and heat dissipation
- SensOstep™ magnetic encoder (max. 1024 positions per rotation) e.g. for step-loss detection under all operating conditions and positioning supervision
- Inputs for stop switches (left and right) and home switch
- 1 analog input
- 2 general purpose outputs (open collector with freewheeling diodes)
- IUSB, RS232, and RS485 communication interfaces
- TMCL: standalone operation or remote controlled operation, program memory (non volatile) for up to 2048 TMCL commands, and PC-based application development software TMCL-IDE available for free
- Supply voltage: +24V DC nominal (10 to 30V DC)
- Motor current: up to 2.8A RMS (programmable)
- 0.5 to 3.1Nm max holding torque (depends on motor)
- With NEMA23 (57mm motor flange size) or NEMA24 (60mm motor flange size) stepper motor

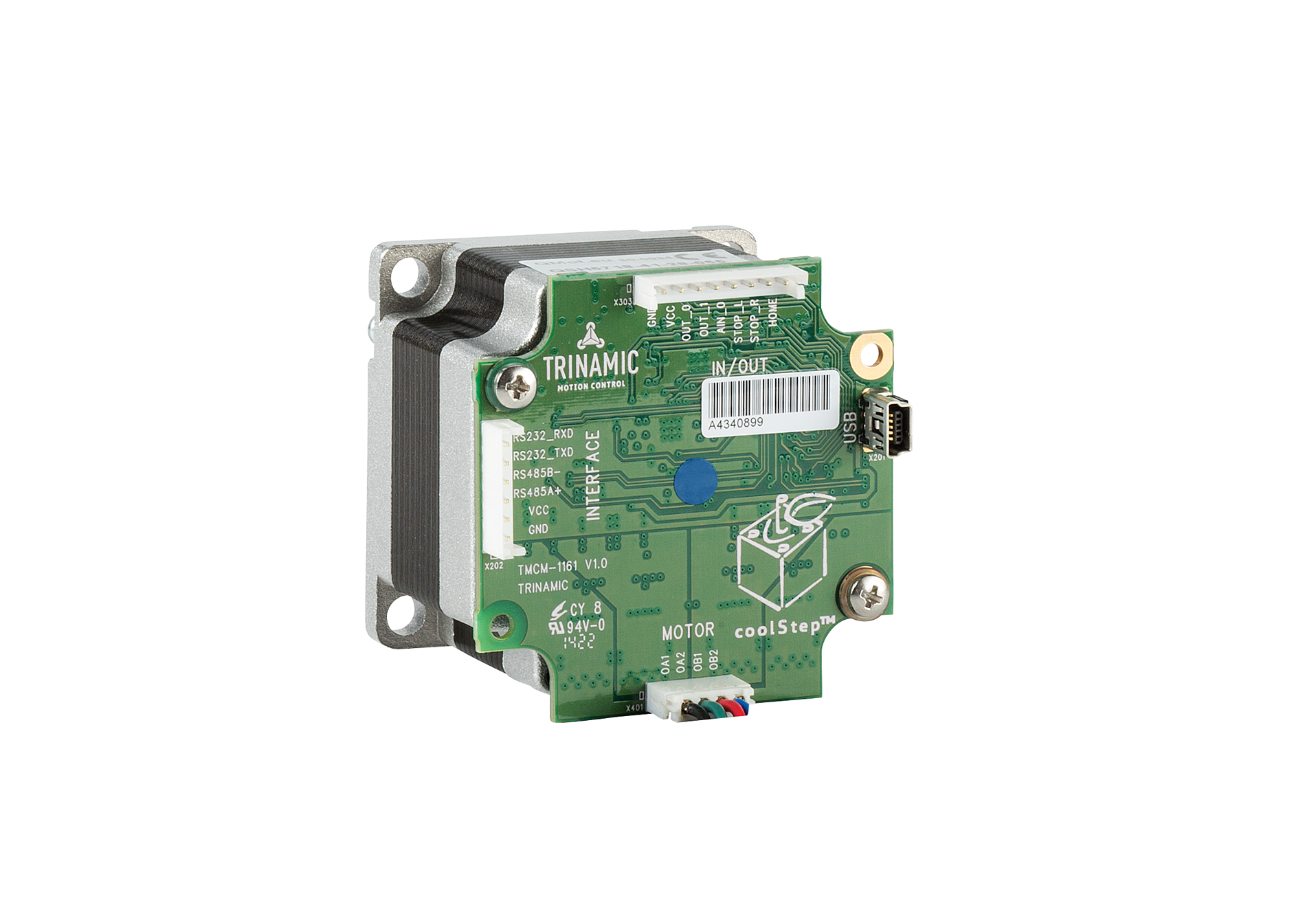

The PANdrive PD57-1161 and PD60-1161 family is a mechatronic solution including a 57mm or 60mm flange motor, a controller board and a SensOstep™ encoder. It can be controlled via serial interface or operated in standalone mode. Power supply, external encoder, interface and I/Os can be connected with JST connectors.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
Technical Details
| PD57-1-1161 | PD57-2-1161 | PD60-3-1161 | PD60-4-1161 | |
| Status | Active | Active | Active | Active |
| Flange NEMA | 23 | 23 | 24 | 24 |
| Flange | 57mm | 57mm | 60mm | 60mm |
| Holding Torque | 55Ncm | 101Ncm | 210Ncm | 310Ncm |
| Motor Supply | 10 to 30V | 10 to 30V | 10 to 30V | 10 to 30V |
| Microsteps | 1 to 256 | 1 to 256 | 1 to 256 | 1 to 256 |
| RS232 | ✓ | ✓ | ✓ | ✓ |
| RS485 | ✓ | ✓ | ✓ | ✓ |
| Step/Dir | ✓ | ✓ | ✓ | ✓ |
| USB | ✓ | ✓ | ✓ | ✓ |
| GPIO | ✓ | ✓ | ✓ | ✓ |
| SensOstep™ | ✓ | ✓ | ✓ | ✓ |
| TMCL™ | ✓ | ✓ | ✓ | ✓ |
| Trapezoidal | ✓ | ✓ | ✓ | ✓ |
| MicroPlyer™ | ✓ | ✓ | ✓ | ✓ |
| StallGuard2™ | ✓ | ✓ | ✓ | ✓ |
| CoolStep™ | ✓ | ✓ | ✓ | ✓ |
| SpreadCycle™ | ✓ | ✓ | ✓ | ✓ |
| Width | 60mm | 60mm | 60mm | 60mm |
| Height | 60mm | 60mm | 60mm | 60mm |
| Length | 58mm | 68mm | 82mm | 103mm |
参考资料
用户手册 2
应用笔记 1
软件手册 2
解决方案设计及宣传手册 1
