OP282

量产

双通道/四通道、低功耗、高速JFET运算放大器

数据手册 (Rev. I) 产品选型表

产品模型: 5

Viewing:

产品详情

高压摆率：9 V/μs
宽带宽：4 MHz
低电源电流：每个放大器250 µA
低失调电压：3 mV
低偏置电流：100 pA
快速建立时间
共模范围包括V+
单位增益稳定

参考资料

数据手册 1

OP282/OP482: Dual/Quad Low Power, High Speed JFET Operational Amplifiers Data Sheet (Rev.I) 09/17/2010

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

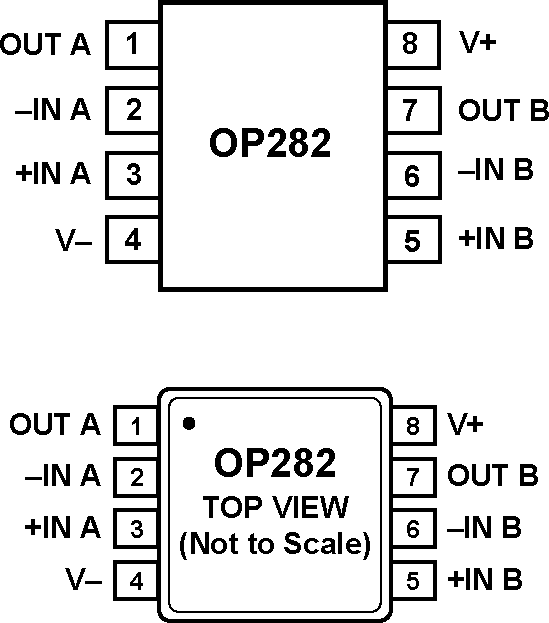

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
OP282ARMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
OP282ARMZ-REEL	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
OP282GSZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
OP282GSZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
OP282GSZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

3月 22, 2021 - 21_0001 Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP
		PCN21_0001_Form Material_Report Other Qualification Results Summary
OP282ARMZ	量产
OP282ARMZ-REEL	量产
1月 5, 2015 - 14_0246 Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
		PCN14_0246_Form Material_Report Detailed Change Description Qualification Results Summary
OP282ARMZ	量产
OP282ARMZ-REEL	量产
5月 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
OP282ARMZ	量产
OP282ARMZ-REEL	量产

这是最新版本的数据手册

工具及仿真模型

OP282 SPICE Macro Models 2

OP282 SPICE Macro Model Rev. A, 8/91
OP282G SPICE Macro Model Rev. A, 4/92

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

打开工具
