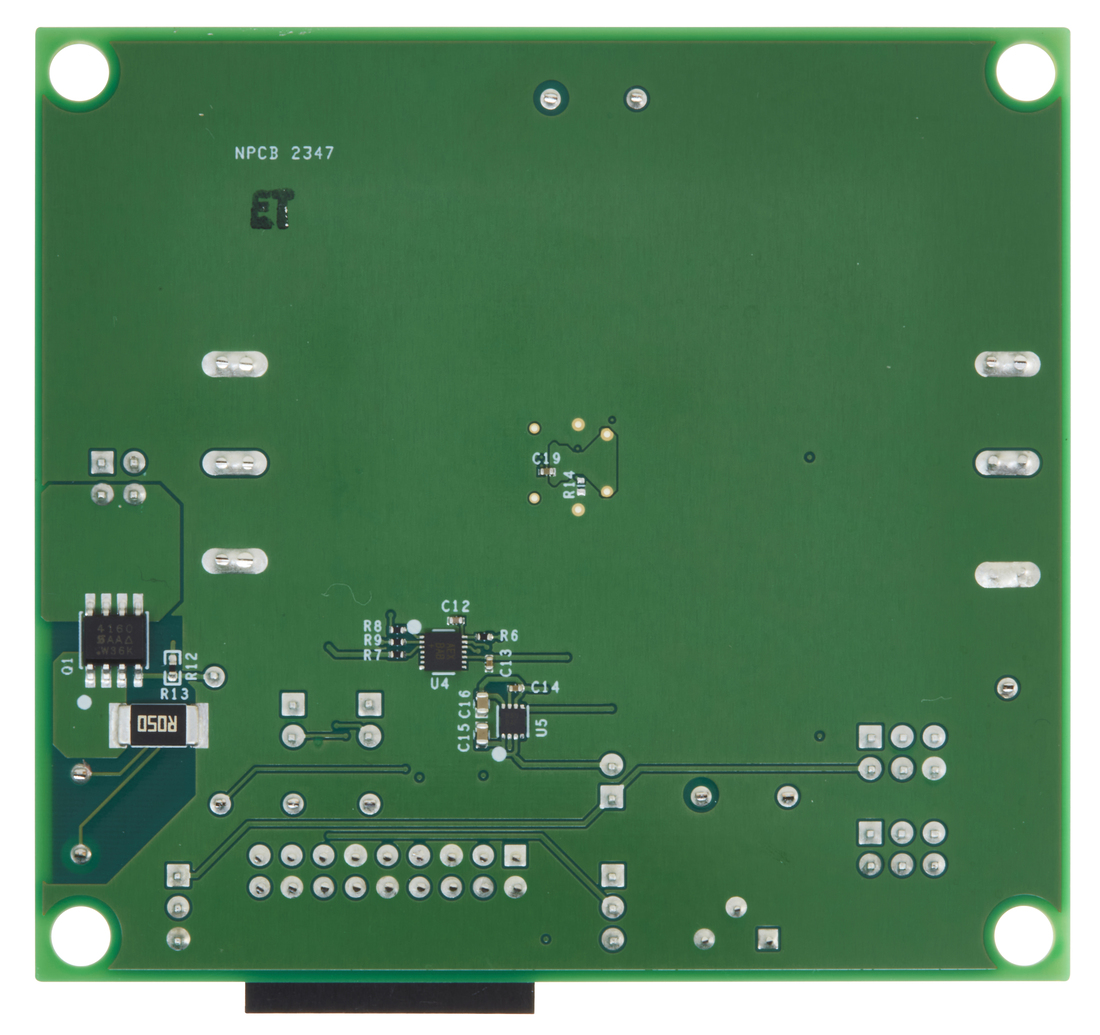

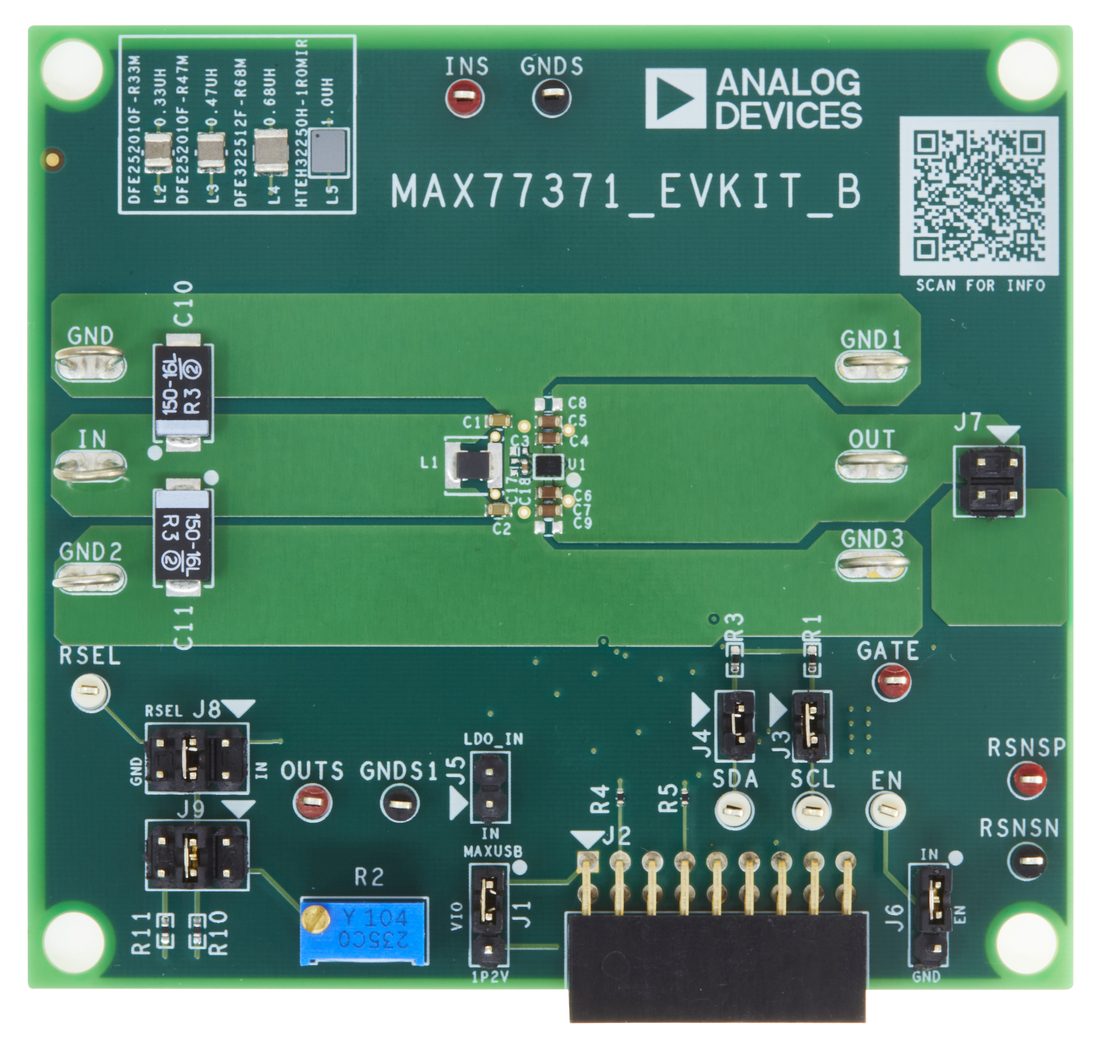

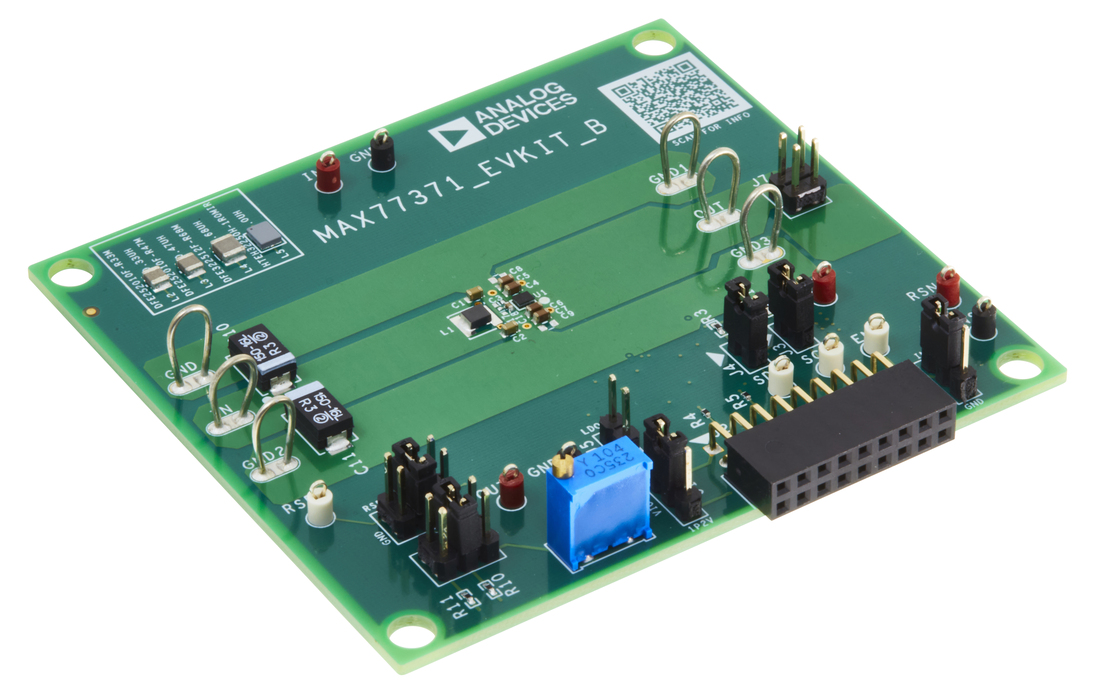

MAX77371
预发布5A Boost Converter with I2C Interface, Dynamic Voltage Scaling, and Short Circuit Protection
- 产品模型
- 4
产品详情
- 2.5V to 5.5V Input Voltage Range
- 4.5V to 10.0V Output Voltage Range
- Up to 5.0A Cycle-by-Cycle Inductor Current Limit
- 95% Peak Efficiency
- I2C Serial Interface Enabling:
- Dynamic Voltage Scaling (DVS)
- Mode Configuration
- Current Limit Adjustment
- Ultrasonic Mode (USM with fSW > 25kHz) to Alleviate Acoustic Audible Interference for Light Load Operation
- 2MHz Switching Frequency
- Forced PWM (FPWM) Operation
- True Shutdown Mode
- Output Disconnects from Input with no Forward or Reverse Current
- Output Short Circuit Protection
- Overcurrent Protection
- Overvoltage Protection
- Thermal Shutdown Protection
- Package:

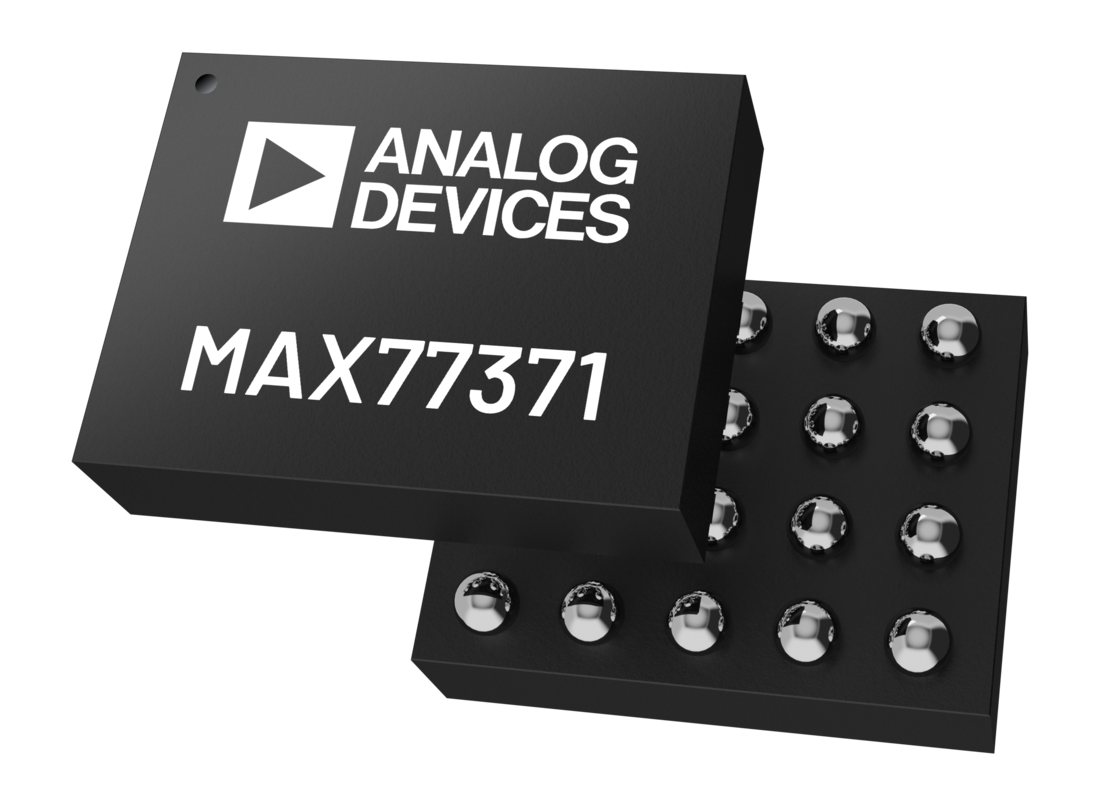

- 1.89mm x 1.46mm, 0.35mm Pitch 20-Bump WLP
- -40°C to +125°C Operating Temperature Range
The MAX77371 is an ultrasonic, high-performance boost converter with an input voltage range from 2.5V to 5.5V and a configurable switching current limit of up to 5.0A. The IC operates in Ultrasonic mode (fSW > 25kHz) at low loads and transitions into Skip and CCM modes of operation at higher load currents. When selected, the device can operate in forced PWM mode.
The output voltage can be widely varied between 4.5V and 10.0V.
The MAX77371 features a true shutdown mode that disconnects VIN and VOUT when the EN pin is pulled low. It also implements short circuit, overcurrent, voltage, and temperature protection features. The MAX77371 is available in a 20-bump, 0.35mm pitch wafer-level package (WLP).
APPLICATIONS
- AR/VR Laser Driver Bias
- Wireless Charging Circuit Bias
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX77371AAWP+ | N/A | ||
| MAX77371AAWP+T | N/A | ||
| MAX77371PAWP+ | N/A | ||
| MAX77371PAWP+T | N/A |
