MAX17853

• 为评估MAX17853的特性和功能提供便利平台
• 支持特性评估的通用GUI接口
• 即插即用架构，快速建立系统原型
• 加载和检测引脚连接头，支持高精度测量评估
• 内置用于仿真电池的电阻堆栈
• 经过验证的PCB布局
• 完全装配并经过测试

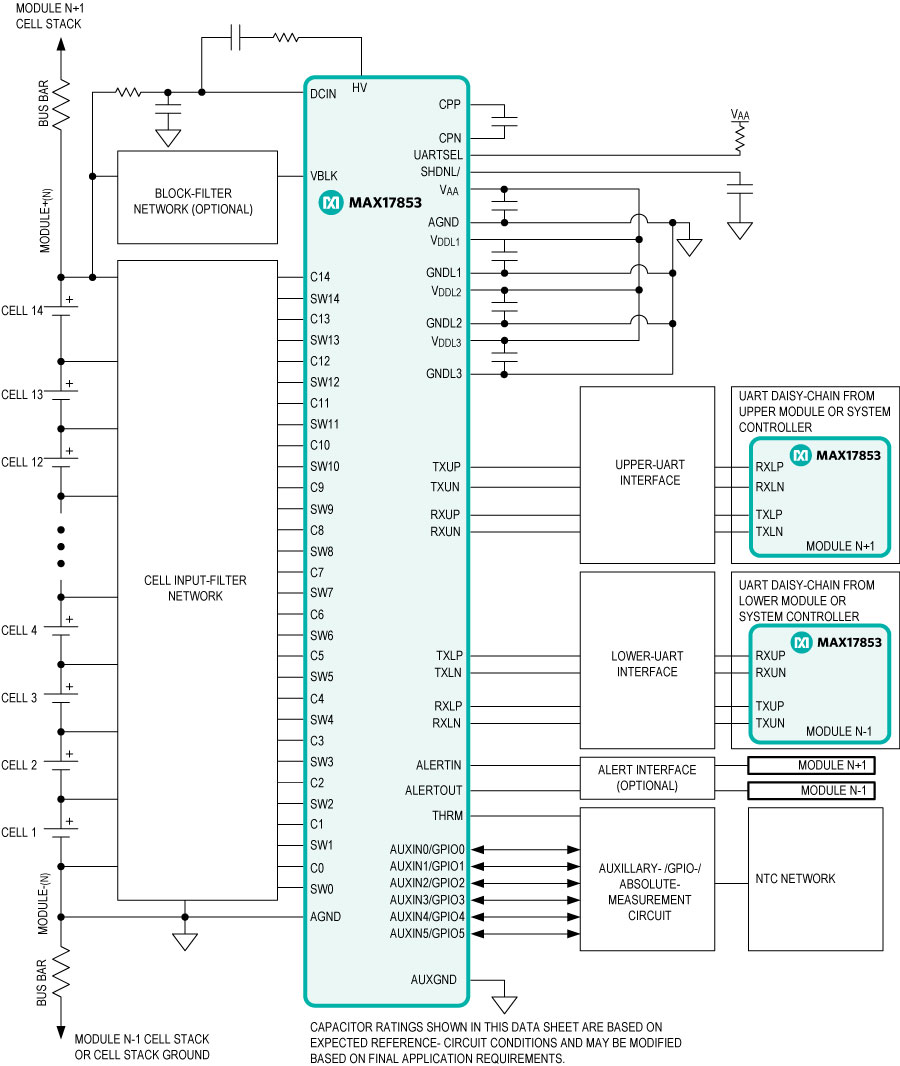

MAX17853评估套件(EV kit)用于演示MAX17853 14通道、高压智能传感器数据采集接口IC的特性和功能。随评估套件提供MAX17841B评估套件，用于建立与主机PC的通信。通信建立后，通过主机PC上的评估套件图形用户界面(GUI)控制MAX17853评估套件。GUI兼容Windows XP^®、Windows Vista^®、Windows^® 7和Windows 10，详细信息请咨询当地的Maxim Integrated销售代表处。注：该数据手册中关于MAX17841B的信息也适用于MAX17841。

MAX17853评估套件设计提供一个便利的平台，用于评估器件的特性和功能，以及IC的电气参数。评估套件带有直插通信连接器(P2、P3、P5和P6)和弹簧锁电池组连接器，使用户能够快速搭建和评估多达32片菊链器件的系统。

应用

• 电池备份系统(UPS)
• 电池供电工具
• 电动自行车
• 电动车(EV)
• 高压电池组
• 混合动力电动车(HEV)
• 超级电容系统

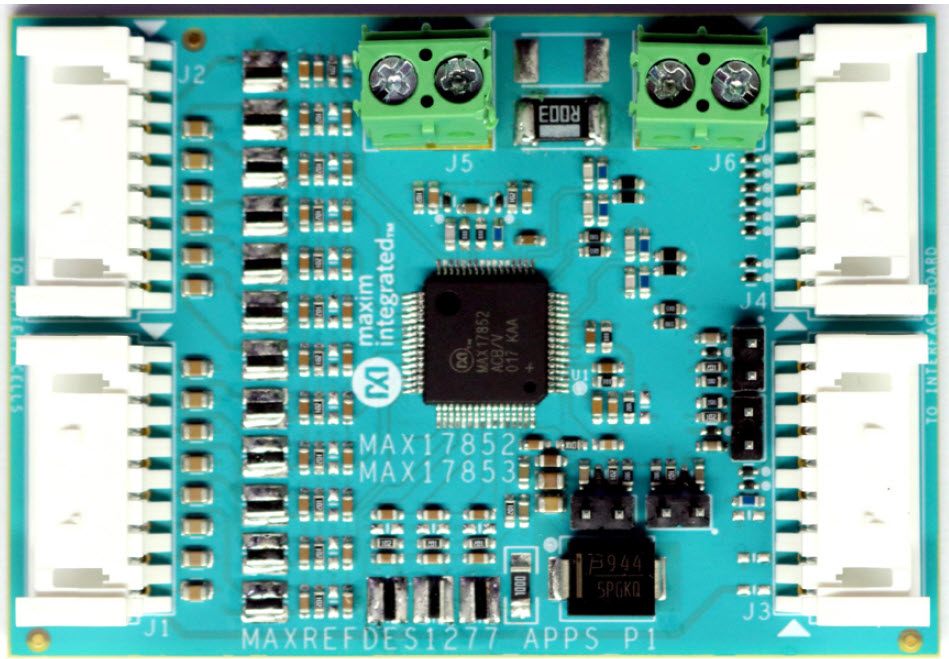

• 3 to 14 cell voltage measurement with ±2mV accuracy at 5°C to 40°C
• Supports flexi pack configuration
• Pack current measurement using external current sense resistor
• Passive cell balancing up to 300mA with internal switch with odd or even cell balancing scheme (single cell or group)
• Auto cell balancing configuration with undervoltage (UV) threshold and timer options
• Manual cell balancing configuration
• Four configurable auxiliary inputs for temperature, voltage, or GPIO
• Internal die temperature measurement
• Individually configurable safety alert
• Overvoltage (OV), undervoltage, overtemperature and undertemperature faults
• One cell-mismatch alert
• Selectable universal asynchronous receiver- transmitter (UART) or serial peripheral interface (SPI)
• UART configurations with packet error checking (PEC)
• Dual UART configuration with redundancy
• Single UART configuration
• Single-side component placement
• Compatible with MAX17852EVKIT software along with MINIQUSB board

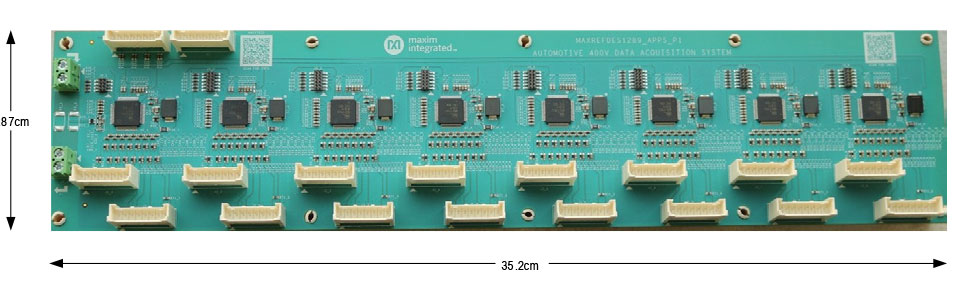

Up to 112 cell voltage measurement with ±2mV accuracy at 5°C to 40°C.

Supports flexi-pack configuration.

Pack-current measurement using external current-sense resistor.

Passive cell balancing up to 300mA with internal switch, with odd/even cell balancing scheme (single cell or group).

• Auto cell balancing configuration with undervoltage (UV) threshold and timer options.
• Manual cell balancing configuration.

Four configurable auxiliary inputs for temperature, voltage, or GPIO.

Internal die temperature measurement. Individually configurable safety alert.

• Overvoltage (OV), undervoltage (UV), overtemperature, and undertemperature faults.
• One cell mismatch alert.

Selectable Universal Asynchronous Receiver-Transmitter (UART) or Serial Peripheral Interface (SPI).

UART configurations with Packet Error Checking (PEC).

• Dual UART configuration with redundancy.
• Single UART configuration.

Single-side component placement.

Compatible with MAX17852EVKIT software along with MINIQUSB board.

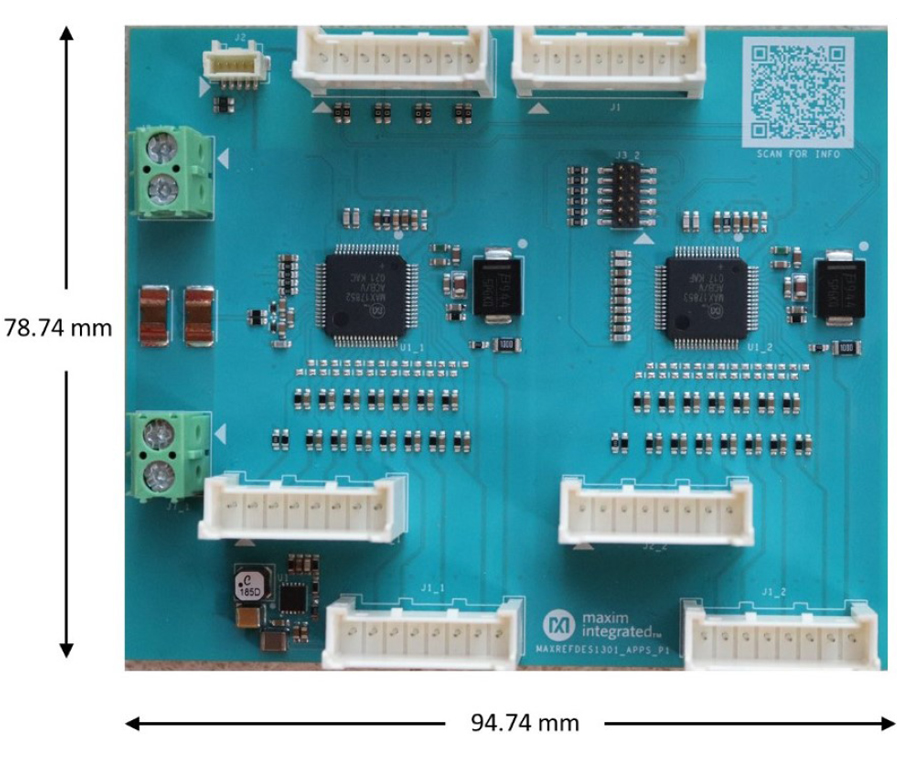

• 6 to 28 cell (minimum 3 cells per pack) voltage measurement with ±2mV accuracy at 5°C to 40°C
• Supports flexi pack configuration
• Pack current measurement using external current sense resistor
• Passive cell balancing up to 300mA with internal switch using odd or even cell balancing scheme (single cell or group)

  • Auto cell balancing configuration with undervoltage (UV) threshold and timer options
  • Manual cell balancing configuration
• Configurable auxiliary inputs

  • Six aux channels for the MAX17853, all configured for temperature measurement
  • Four aux channels for the MAX17852, configured for I²C and GPIO
• Internal die temperature measurement
• Individually configurable safety alert

  • Overvoltage (OV), undervoltage, overtemperature and under temperature faults
  • One cell mismatch alert
• Selectable universal asynchronous receiver-transmitter (UART) or serial peripheral interface (SPI)
• ART configurations with packet error checking (PEC)

  • Dual UART configuration with redundancy
  • Single UART configuration
• Compatible with the MAX17852 and MAX17853 EV Kit software along with MINIQUSB board
