LTC7065

推荐新设计使用

100V Half-Bridge Driver with Adaptive Shoot-Through Protection

数据手册 (Rev. 0) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 100V Maximum Input Voltage Independent of IC Supply Voltage VCC
  • 6V to 14V VCC and Bottom Gate Driver Voltage
  • 4V to 14V Top Gate Driver Voltage
  • 1.3Ω Pull-Down, 1.6Ω Pull-Up
  • Adaptive Shoot-Through Protection
  • Three-State PWM Input with Enable Pin
  • VCC UVLO and Floating Supply UVLO
  • Drives Dual N-Channel MOSFETs
  • Available in Thermally Enhanced 10-LEAD MSOP Package
LTC7065
100V Half-Bridge Driver with Adaptive Shoot-Through Protection

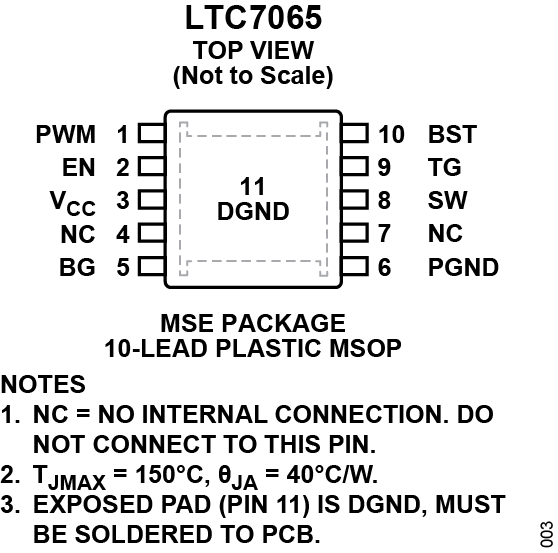

LTC7065 Typical Application Diagram LTC7065 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice 1

LTspice中提供以下器件型号：

  • LTC7065
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
EVAL-LTC7065-AZ

100V Half-Bridge Driver with Adaptive Shoot-Through Protection

立即购买 更多内容

产品详情

The EVAL-LTC7065-AZ evaluation circuit features LTC7065 driving two N-channel MOSFETs in a half-bridge configuration. The PWM input control is 5V logic compatible and controls both gate outputs, with one output being a complement of the other. The evaluation board has several unpopulated PCB pads to help facilitate the user in customizing the board for their application.

The LTC7065 driver has powerful 1.2Ω pull-down and 1.6Ω pull-up MOSFET drivers driving two 100V Nchannel MOSFETs.

EVAL-LTC7065-AZ
100V Half-Bridge Driver with Adaptive Shoot-Through Protection

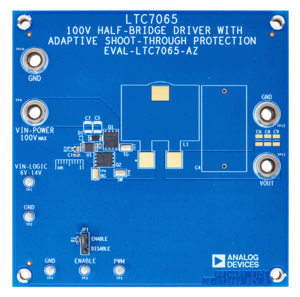

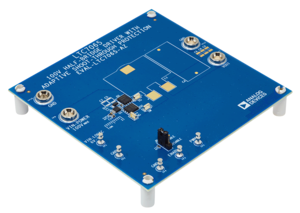

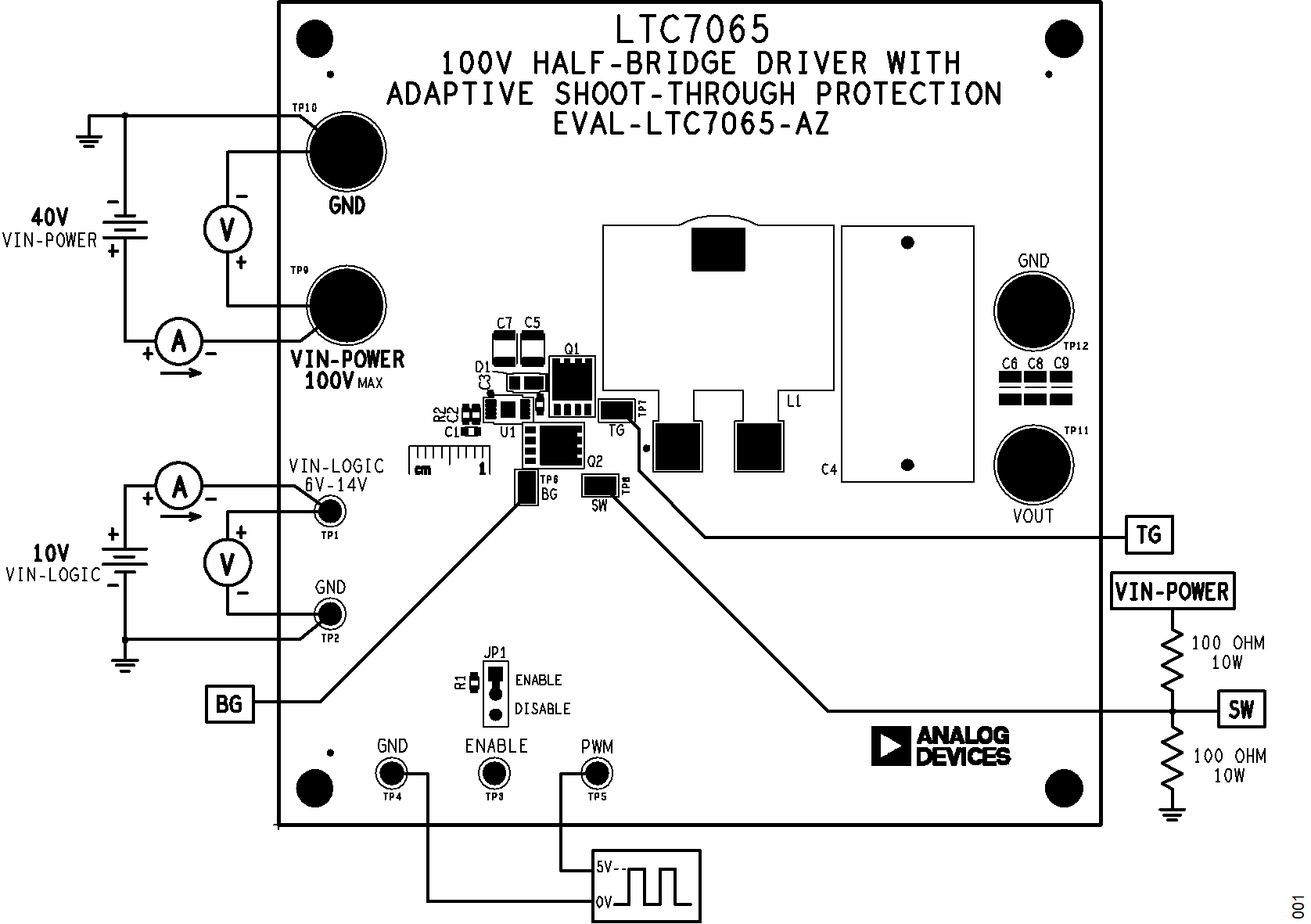

EVAL-LTC7065-AZ Angle View EVAL-LTC7065-AZ Bottom View EVAL-LTC7065-AZ Top View EVAL-LTC7065-AZ Schematic EVAL-LTC7065-AZ Test Setup
