LTC4226

量产

宽工作范围双通道热插拔控制器

数据手册产品选型表

产品模型: 16

Viewing:

产品详情

允许在带电背板上安全地进行电路板的插拔操作
可选的电流限值和双速率定时器可应付负载浪涌
快速响应限制了峰值故障电流
宽工作电压范围：4.5V 至 44V
在过流故障之后可选择执行自动重试或锁断操作
用于外部 N 沟道 MOSFET 的高端驱动器
可针对大电流应用提供并联电源通路

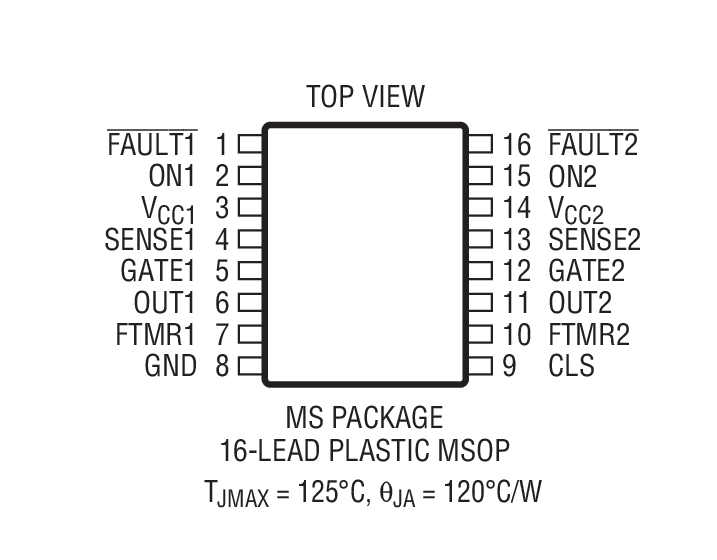

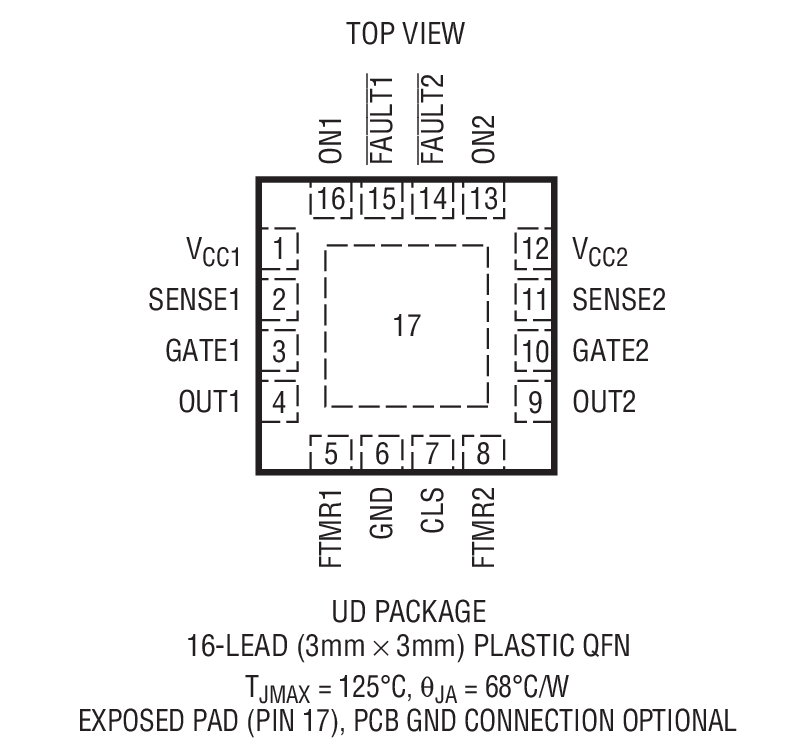

采用 16 引脚 QFN (3mm x 3mm) 封装和 MSOP 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC4226CMS-1#PBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CMS-1#TRPBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CMS-2#PBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CMS-2#TRPBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CUD-1#PBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CUD-1#TRPBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CUD-2#PBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226CUD-2#TRPBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IMS-1#PBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IMS-1#TRPBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IMS-2#PBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IMS-2#TRPBF	16-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IUD-1#PBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IUD-1#TRPBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IUD-2#PBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4226IUD-2#TRPBF	16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

2月 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC4226CMS-1#PBF	量产
LTC4226CMS-1#TRPBF	量产
LTC4226CMS-2#PBF	量产
LTC4226CMS-2#TRPBF	量产
LTC4226CUD-1#PBF	量产
LTC4226CUD-1#TRPBF	量产
LTC4226CUD-2#PBF	量产
LTC4226CUD-2#TRPBF	量产
LTC4226IMS-1#PBF	量产
LTC4226IMS-1#TRPBF	量产
LTC4226IMS-2#PBF	量产
LTC4226IMS-2#TRPBF	量产
LTC4226IUD-1#PBF	量产
LTC4226IUD-1#TRPBF	量产
LTC4226IUD-2#PBF	量产
LTC4226IUD-2#TRPBF	量产
6月 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4226CMS-1#PBF	量产
LTC4226CMS-1#TRPBF	量产
LTC4226CMS-2#PBF	量产
LTC4226CMS-2#TRPBF	量产
LTC4226IMS-1#PBF	量产
LTC4226IMS-1#TRPBF	量产
LTC4226IMS-2#PBF	量产
LTC4226IMS-2#TRPBF	量产
2月 4, 2020 - 20_0132 Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0132_Form Material_Report
LTC4226CMS-1#PBF	量产
LTC4226CMS-1#TRPBF	量产
LTC4226CMS-2#PBF	量产
LTC4226CMS-2#TRPBF	量产
LTC4226IMS-1#PBF	量产
LTC4226IMS-1#TRPBF	量产
LTC4226IMS-2#PBF	量产
LTC4226IMS-2#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
PowerPath、理想二极管和负载开关 1
LTC4228	推荐新设计使用	双通道理想二极管和热插拔控制器
低压热插拔控制器 1
LTC4222	量产	具 I²C 兼容型监视功能的双通道热插拔控制器
