LTC4211

推荐新设计使用

具多功能电流控制的热插拔控制器

数据手册产品选型表

产品模型: 12

Viewing:

产品详情

允许在带电背板上安全地进行电路板的插拔操作
电源电压控制范围：2.5V 至 16.5V
具浪涌电流限制功能的可编程软起动，无需外部栅极电容器
由于无需外部栅极电容器，因而实现了较快的关断时间
双级过流故障保护
用于过流保护的可编程响应时间 (MS 封装)
可编程过压保护 (MS 封装)
自动重试或闭锁模式操作 (MS 封装)
用于外部 N 沟道 FET 的高端驱动器
用户可编程电源电压上电速率
FB 引脚负责监视 V_OUT 并发出 RESET 信号
干扰滤波器可针对杂散 RESET 信号提供保护

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC4211CMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211CMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211IMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211IMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4211IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

2月 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC4211CMS#PBF	量产
LTC4211CMS#TRPBF	量产
LTC4211IMS#PBF	量产
LTC4211IMS#TRPBF	量产
2月 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC4211CMS8#PBF	量产
LTC4211CMS8#TRPBF	量产
LTC4211IMS8#PBF	量产
LTC4211IMS8#TRPBF	量产
11月 14, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4211CS8#PBF	量产
LTC4211CS8#TRPBF	量产
6月 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC4211CS8#PBF	量产
LTC4211CS8#TRPBF	量产
LTC4211IS8#PBF	量产
LTC4211IS8#TRPBF	量产
12月 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4211IS8#PBF	量产
LTC4211IS8#TRPBF	量产

这是最新版本的数据手册

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

LTC4211

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

LTC4211CMS Demo Board | 7A Electronic Circuit Breaker and Hot Swap Controller

立即购买更多内容

产品详情

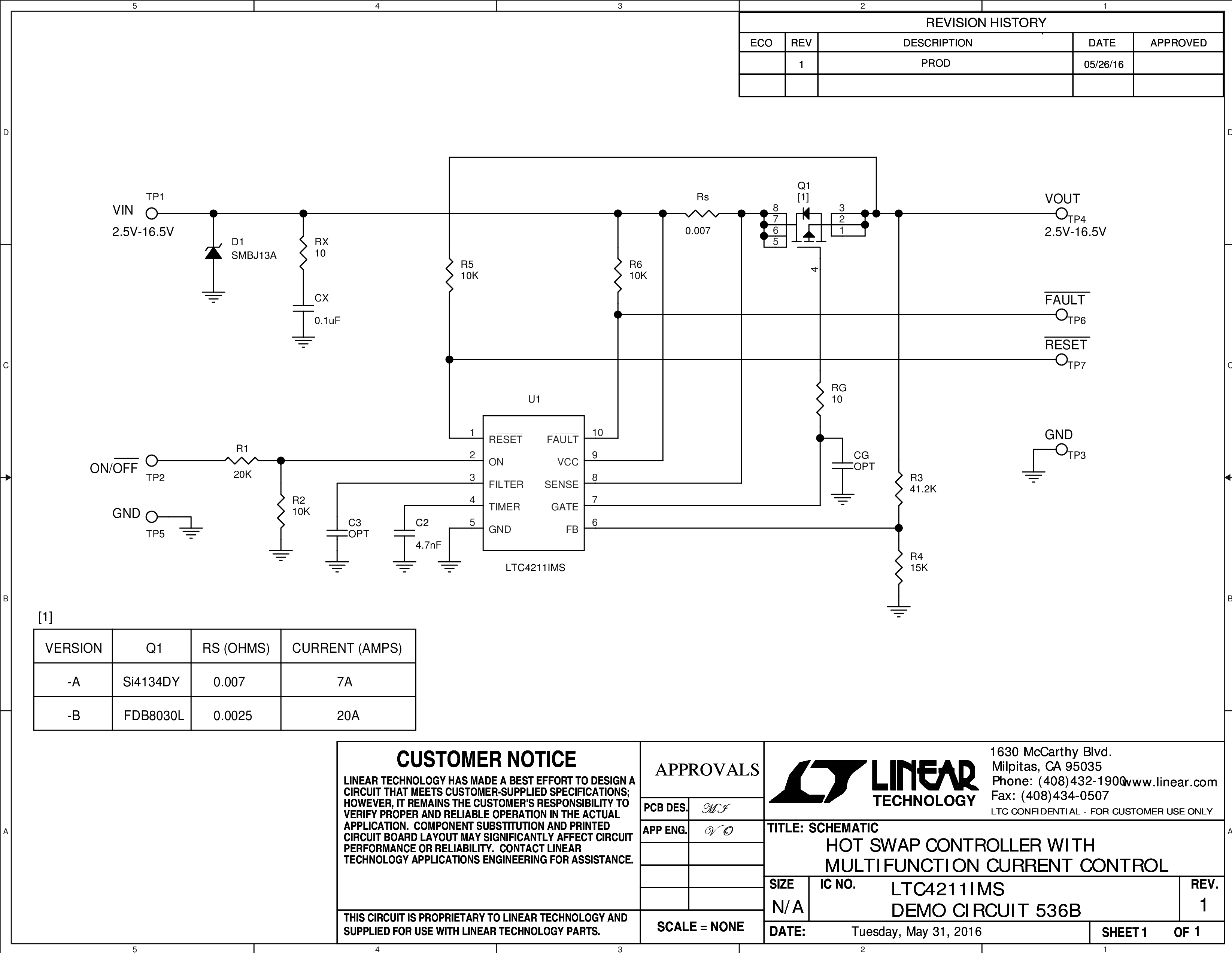

Demonstration circuit 536B is a hot swap controller with multifunction current control featuring the LTC4211. The DC536B-A is configured to operate with up to 7A load and DC536B-B up to 20A load.
