LTC3642

量产

高效率、高电压、50mA 同步降压型转换器

数据手册产品选型表

产品模型: 24

Viewing:

产品详情

宽输入电压范围：4.5V 至 45V
能够承受 60V 的输入瞬态电压
内部高端和低端电源开关
无需进行补偿
50mA 输出电流
低压差操作：100% 占空比
低静态电流：12μA
0.8V 反馈电压基准
可调峰值电流限值
内部和外部软起动
具有可调迟滞的精准 RUN 引脚门限
3.3V、5V 和可调输出版本
对于固定输出版本，只需要 3 个外部元件
扁平 (高度仅 0.75mm)、3mm x 3mm DFN 封装和耐热性能增强型 MS8E 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC3642EDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EDD-3.3#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EDD-3.3#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EDD-5#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EDD-5#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EMS8E#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EMS8E#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EMS8E-3.3#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EMS8E-3.3#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EMS8E-5#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642EMS8E-5#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IDD-3.3#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IDD-3.3#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IDD-5#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IDD-5#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IMS8E#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IMS8E#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IMS8E-3.3#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IMS8E-3.3#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IMS8E-5#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3642IMS8E-5#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

7月 28, 2021 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC3642EDD#PBF	量产
LTC3642EDD#TRPBF	量产
LTC3642EDD-3.3#PBF	量产
LTC3642EDD-3.3#TRPBF	量产
LTC3642EMS8E#PBF	量产
LTC3642EMS8E#TRPBF	量产
LTC3642EMS8E-3.3#PBF	量产
LTC3642EMS8E-3.3#TRPBF	量产
LTC3642IDD#PBF	量产
LTC3642IDD#TRPBF	量产
LTC3642IDD-3.3#PBF	量产
LTC3642IDD-3.3#TRPBF	量产
LTC3642IMS8E#PBF	量产
LTC3642IMS8E#TRPBF	量产
LTC3642IMS8E-3.3#PBF	量产
LTC3642IMS8E-3.3#TRPBF	量产
11月 8, 2021 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC3642EDD-5#PBF	量产
LTC3642EDD-5#TRPBF	量产
LTC3642EMS8E-5#PBF	量产
LTC3642EMS8E-5#TRPBF	量产
LTC3642IDD-5#PBF	量产
LTC3642IDD-5#TRPBF	量产
LTC3642IMS8E-5#PBF	量产
LTC3642IMS8E-5#TRPBF	量产
2月 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC3642EMS8E#PBF	量产
LTC3642EMS8E#TRPBF	量产
LTC3642EMS8E-3.3#PBF	量产
LTC3642EMS8E-3.3#TRPBF	量产
LTC3642EMS8E-5#PBF	量产
LTC3642EMS8E-5#TRPBF	量产
LTC3642IMS8E#PBF	量产
LTC3642IMS8E#TRPBF	量产
LTC3642IMS8E-3.3#PBF	量产
LTC3642IMS8E-3.3#TRPBF	量产
LTC3642IMS8E-5#PBF	量产
LTC3642IMS8E-5#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
PowerPath、理想二极管和负载开关 1
LTC4359	推荐新设计使用	具反向输入保护功能的理想二极管控制器
按钮控制器 1
LTC2955	推荐新设计使用	具自动接通功能的按钮接通 / 关断控制器
浪涌抑制器、过压和过流保护 1
LTC4365	推荐新设计使用	欠压、过压和电源反向保护控制器
双电源监控器 1
LTC2960	推荐新设计使用	36V、纳安级电流、两输入电压监视器

部分模型	产品周期	描述
LTC2960	推荐新设计使用	36V、纳安级电流、两输入电压监视器
LTC4359	推荐新设计使用	具反向输入保护功能的理想二极管控制器
LTC4365	推荐新设计使用	欠压、过压和电源反向保护控制器
LTC2955	推荐新设计使用	具自动接通功能的按钮接通 / 关断控制器

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

LTC3642
LTC3642-3.3
LTC3642-5

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

LTC3642EDD Demo Board | 60V Transients, 4.5V ≤ VIN ≤ 45V, VOUT = 1.8V/3.3V/5V/Adjustable @ 50mA

立即购买更多内容

产品详情

Demonstration circuit DC1429A is a high efficiency step-down DC/DC converter featuring LTC3642 with internal high side and synchronous power switches that draws only 10μA quiescent current. It has a wide 4.5V to 45V input range and internal over voltage monitor capable of protecting the part through 60V surges. The jumper-selectable output is up to 5V. LTC3642 can supply up to 50mA load current with a programmable peak current limit that provides a simple method for optimizing efficiency in lower current applications. With no compensation required, LTC3642 is easily configured with minimal components. Gerber files for this circuit are available.

资料

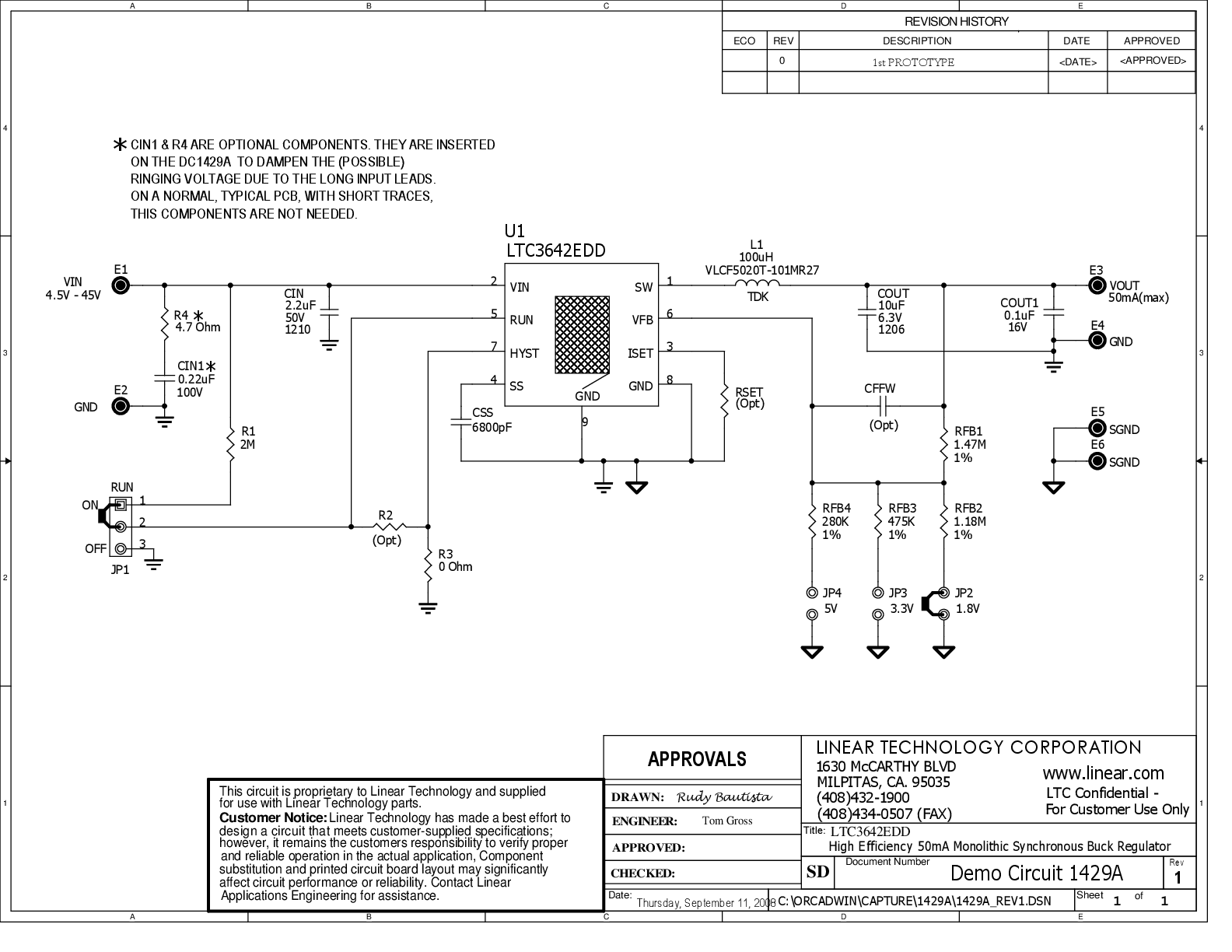

DC1429A - Schematic
