LTC1050

量产

具内部电容器的精准型零漂移运算放大器

数据手册产品选型表

产品模型: 7

Viewing:

产品详情

无需外部组件
噪声指标经过测试并得到保证
低混叠误差
最大失调电压：5μV
最大失调电压漂移：0.05μV/°C

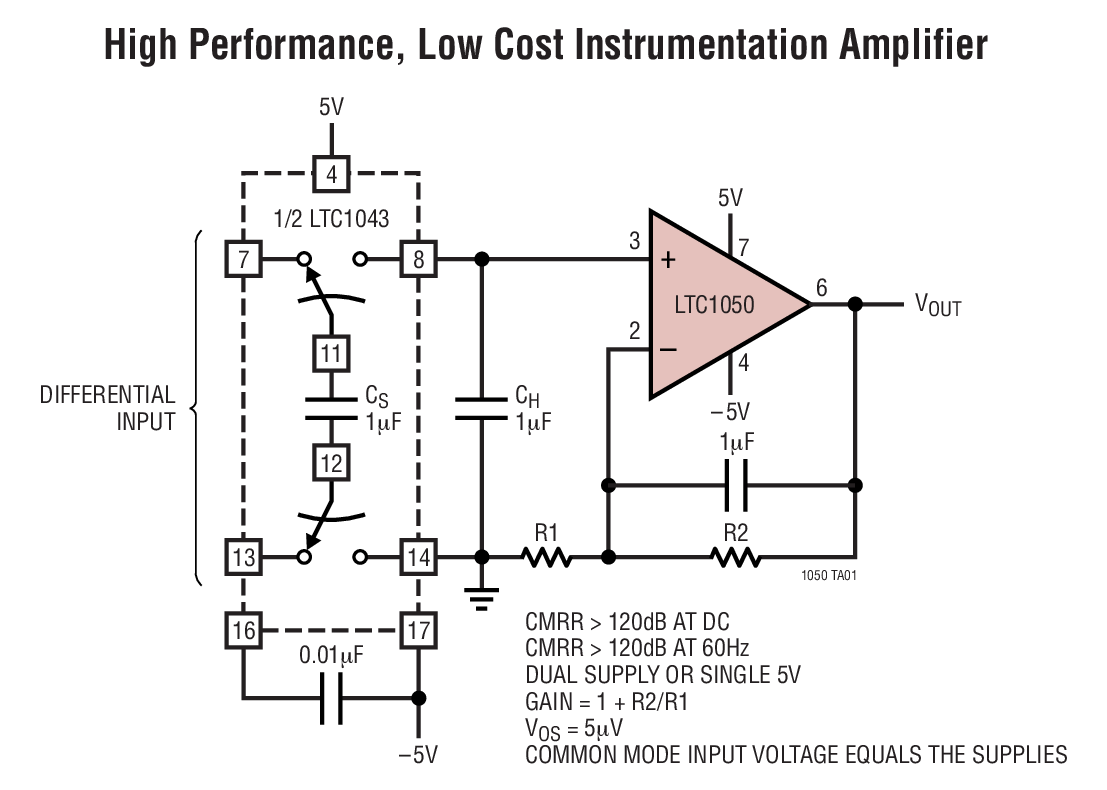

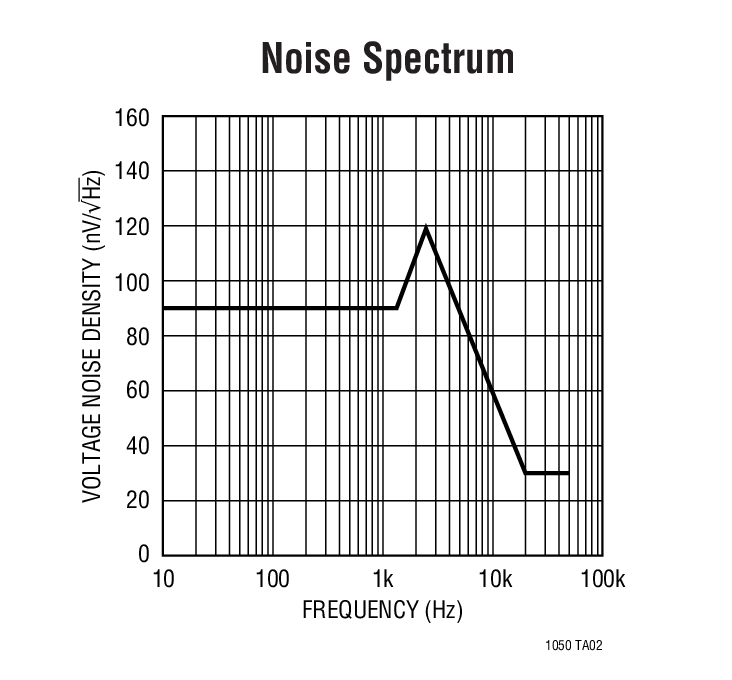

低噪声：1.6μV_P-P (0.1Hz 至 10Hz)
最小电压增益：130dB
最小 PSRR：125dB
最小 CMRR：120dB
低电源电流：1mA
单电源操作：4.75V 至 16V
输入共模范围包括地电位
输出摆动至地电位
典型过载恢复时间：3ms

参考资料

数据手册 1

LTC1050: Precision Zero-Drift Operational Amplifier with Internal Capacitors Data Sheet 08/23/2007

可靠性数据 1

R062 Reliability Data 03/23/2018

用户手册 1

DC417B - Demo Manual 02/01/2012

应用笔记 6

AN28 - Thermocouple Measurement 09/20/2010

AN20 - Application Considerations for an Instrumentation Lowpass Filter 09/27/2010

AN67 - Linear Technology Magazine Circuit Collection, Volume III 08/20/2007

AN48 - Using the LTC Op Amp Macromodels 08/20/2007

AN78 - A Collection of Differential to Single-Ended Signal Conditioning Circuits for Use with the LTC2400, a 24-Bit No Latency Delta Sigma ADC in an SO-8 10/15/2007

AN-28: Thermocouple Measurement 08/07/2023

设计笔记 11

DN42 - Chopper vs Bipolar Op Amps—An Unbiased Comparison 07/24/2014

DN207 - LTC2400 High Accuracy Differential to Single-Ended Converter for ±5V Supplies 06/27/2014

DN5 - Temperature Measurement Using Data Acquisition Systems 07/09/2014

DN219 - 24-Bit ADC Measures from DC to Daylight 06/27/2014

Design Solutions 6 - LTC2400 Differential to Single-Ended Converter for Single 5V Supply This Converter Has High Accuracy, Very Low Offset and Offset Drift, Rail-to-Rail Input Common Mode Range and is Live at Zero 04/08/2010

Design Solutions 1 - LTC2400 High Accuracy Differential to Single-Ended Differential to Single-Ended Converter Has Very High Uncalibrated Accuracy and Low Offset and Drift 08/21/2007

Design Solutions 4 - High Accuracy, Differential to Single-Ended Conversion for Wide Range Bipolar Input Signals Bipolar Differential to Single-Ended Converter 07/11/2022

Design Note 9: Chopper Amplifiers Complement a DC Accurate Low-Pass Filter 11/07/2022

Design note 219: 24-Bit ADC Measures from DC to Daylight 11/07/2022

Design Note 36: Ultra Low Noise Op Amp Combines Chopper and Bipolar Op Amps 01/01/1990

Design Solutions 1 - LTC2400 High Accuracy Differential to Single-Ended Converter for +-5V Supplies. Differential to Single-Ended Converter Has Very High Uncalibrated Accuracy and Low Offset and Drift 11/07/2022

技术文章 2

LTC2050, Zero-Drift Operational Amplifier in SOT-23 Package Minimizes Board Area without Compromising Specs 02/01/2000

LTC2400 Differential Bridge Digitizers 06/01/1999

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型

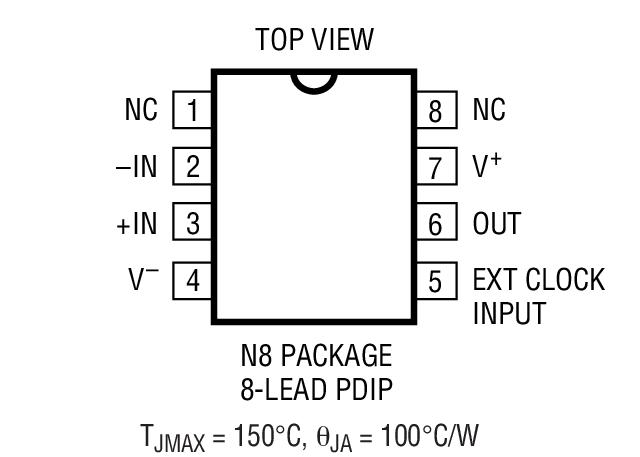

LTC1050ACN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

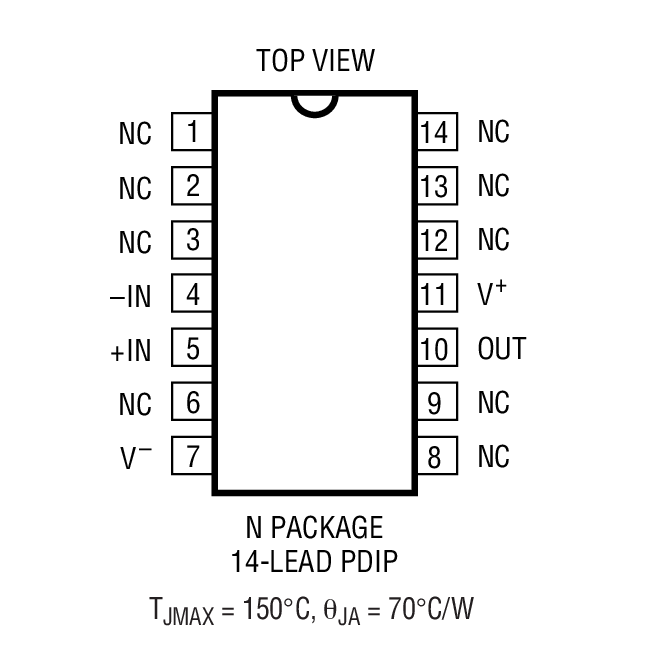

LTC1050CN#PBF	14-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1050CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

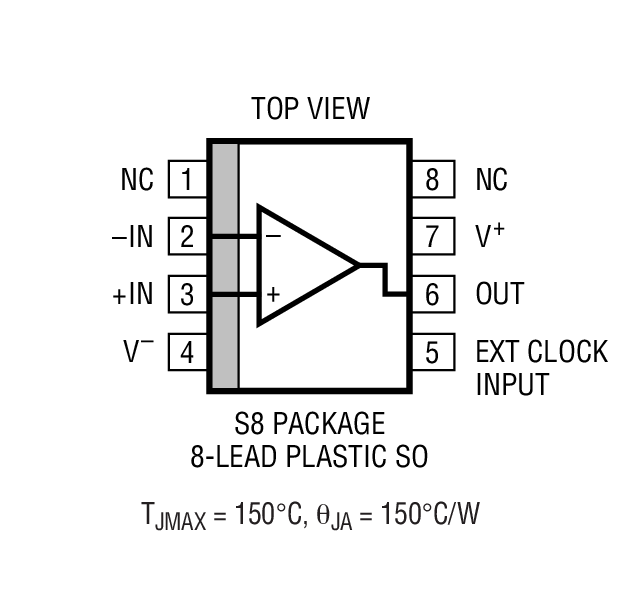

LTC1050CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1050CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1050HS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1050HS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

10月 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LTC1050ACN8#PBF	量产
LTC1050CN8#PBF	量产
10月 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LTC1050ACN8#PBF	量产
LTC1050CN#PBF	量产
LTC1050CN8#PBF	量产
8月 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LTC1050ACN8#PBF	量产
LTC1050CN#PBF	量产
LTC1050CN8#PBF	量产
11月 14, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1050CS8#PBF	量产
LTC1050CS8#TRPBF	量产
6月 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1050CS8#PBF	量产
LTC1050CS8#TRPBF	量产
LTC1050HS8#PBF	量产
LTC1050HS8#TRPBF	量产
12月 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1050HS8#PBF	量产
LTC1050HS8#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
精密电阻网络 1
LT5400	推荐新设计使用	四个匹配的电阻器

部分模型	产品周期	描述
ADA4522-1	推荐新设计使用	55 V、EMI增强型、零漂移、超低噪声、RRO运算放大器
LTC2057	推荐新设计使用	高电压、低噪声、零漂移运算放大器
ADA4638-1	推荐新设计使用	30V自稳零、轨到轨输出精密放大器

工具及仿真模型

LTspice 1

LTC1050 - Operational Amplifiers (Op Amps), LT1009 - Voltage References

LTspice中提供以下器件型号：

LTC1050
LTC1050A

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

schematic 1

DIP8、MS8、S8、SOT23-6|适用于单个运算放大器的多封装通用板

立即购买更多内容

产品详情

DC417B：演示板

资料

DC417B - Schematic
54.00K

DC417B - Demo Manual
137.00K

DC417B - Design Files
695.00K
