ADHV4710
推荐新设计使用110V High Voltage, 1A High Current, Operational Amplifier
- 产品模型
- 2
产品详情
- Wide high voltage supply range: ±12V to ±55V
- Low quiescent current: 12mA
- High output capability
- Output voltage range: Up to ±52V for IOUT = ±100 mA;
- High output current drive: ±1A continuous;
- High slew rate: ±1300V/μs into 1nF load
- Extensive configurability
- Unlimited capacitive loads stability with external compensation and output slew limiting
- Stable for any gain and adjustable slew rate with external transconductance RSLEW
- Programmable supply current with shutdown mode
- Fault protection and monitoring
- Digitally programmable current, voltage, and thermal shutdown limits
- Design-in friendly
- Package: 80-pin, 12mm × 12mm TQFP
- EPAD-up package for mountable heatsink
- Operating temperature range: −40°C to +85°C
The ADHV4710 is a high voltage, high power, high speed operational amplifier optimized for driving up to ±1A at ±1300V/μs into capacitive and resistive loads. Combining a high voltage amplifier with low voltage analog circuitry and an SPI programmable digital engine, the ADHV4710 is ideally suited for high voltage applications such as automated test equipment (ATE), programmable power supplies, and piezo drive.
The ADHV4710 has extensive configurability for high voltage signal chains. The amplifier achieves high slew rate and bandwidth at high gain but can alternatively be configured in low gain for high voltage input and output. External transconductance resistor RSLEW enables stability under any gain and adjustable slew rate. External compensation capacitor CCOMP enables the amplifier output to stably drive unlimited capacitive loads.
A proprietary high voltage BCDMOS process, novel high voltage architecture, and thermally enhanced package from Analog Devices Inc. enable this high-performance amplifier. Fault protection and monitoring are programmable using SPI. Additional analog features extend functionality: junction temperature sensor voltage output and adjustable shutdown delay. The ADHV4710 operates on high voltage dual supplies up to ±55V, asymmetrical dual supplies, or a single supply of 110V.
APPLICATIONS
- High voltage power amplifier (PA)
- High voltage SMU/VI source
- High voltage arbitrary waveform generator (AWG)
- Piezoelectric transducer drive
- Programmable power supplies
参考资料
数据手册 1
用户手册 3
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADHV4710BSVZ | 80-Lead TQFP (12mm x 12mm w/ EP) | ||
| ADHV4710BSVZ-RL | 80-Lead TQFP (12mm x 12mm w/ EP) |
这是最新版本的数据手册
软件资源
找不到您所需的软件或驱动?
申请驱动/软件工具及仿真模型
LTspice 1
LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。
评估套件

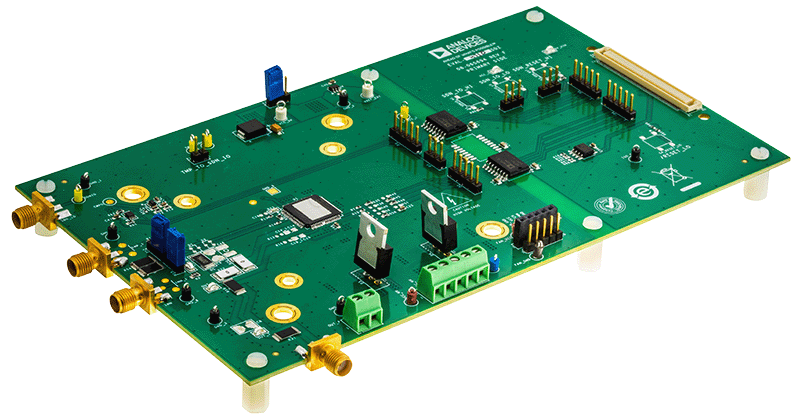

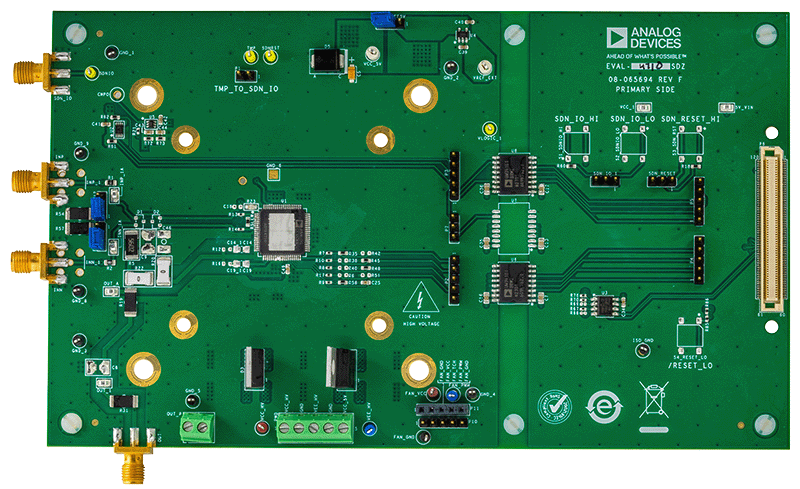

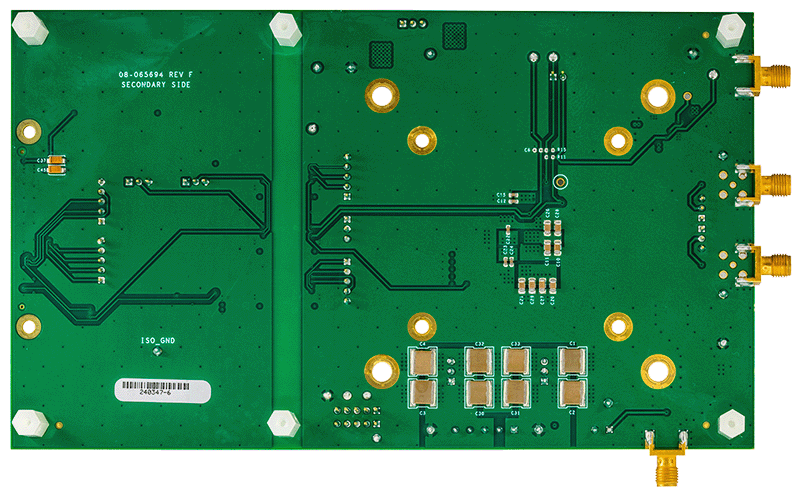

Evaluates the ADHV4710, 110V, High Voltage, 1A Current, Operational Amplifier
