AD8647

量产

24MHz轨到轨放大器，带关断选择（双路提供低功耗关断功能）

数据手册 (Rev. F) 产品选型表

产品模型: 2

Viewing:

产品详情

失调电压：2.5 mV（最大值）
单电源供电：2.7 V至5.5 V
低噪声：8 nV/√Hz
宽带宽：24 MHz
压摆率: 11 V/μs
短路输出电流: 120 mA
无反相
低输入偏置电流: 1 pA
低电源电流：
低电流每个放大器2 mA（最大值）
单位增益稳定

参考资料

数据手册 1

AD8646/AD8647/AD8648: 24 MHz Rail-to-Rail Amplifiers with Shutdown Option Data Sheet (Rev.F) 10/30/2007

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

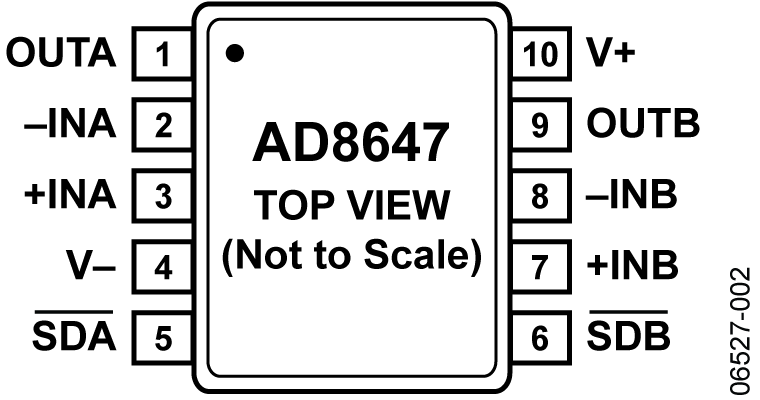

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
AD8647ARMZ	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8647ARMZ-REEL	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

5月 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD8647ARMZ	量产
AD8647ARMZ-REEL	量产
6月 22, 2010 - 09_0217 Addition of Jiangsu Changjiang Electronics Technology (JCET) as an alternate Assembly source for 10L MSOP and 14L TSSOP,and Advanced Semiconductor Engineering (ASE) for 10L MSOP and 14L SOICN package.
		PCN09_0217_Form Material_Report Detailed Parts List Detailed Parts List Detailed Change Description Detailed Change Description Reliability Report Reliability Report
AD8647ARMZ	量产
AD8647ARMZ-REEL	量产

这是最新版本的数据手册
