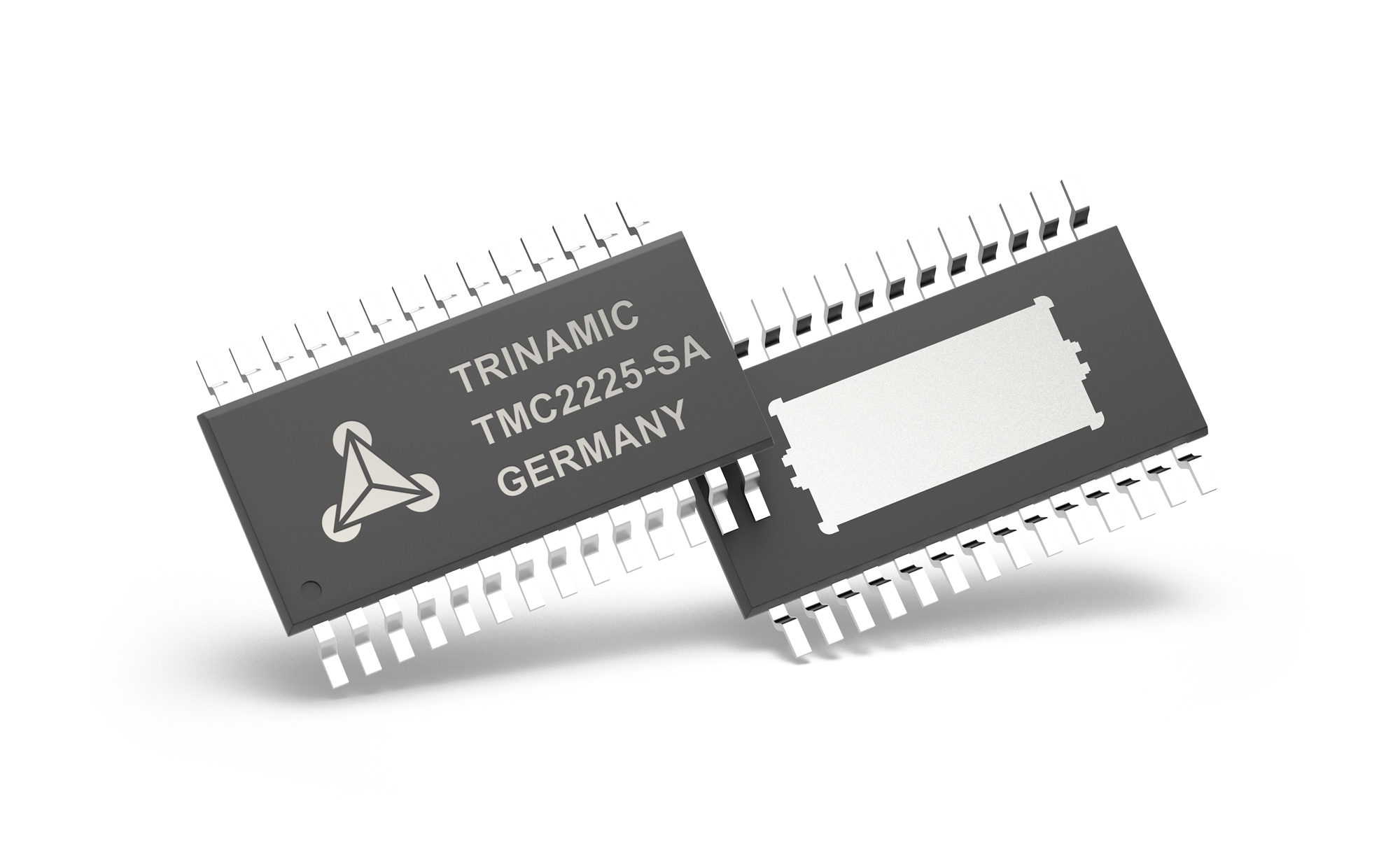

TMC2225

推荐新设计使用

Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop

数据手册 (Rev. 1.15) 产品选型表

产品模型: 2

Viewing:

产品详情

2-phase stepper motors up to 2A coil current (peak)
STEP/DIR Interface with 4, 8, 16 or 32 microstep pin setting
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
SpreadCycle™ highly dynamic motor control chopper
Pin Selection for chopper scheme
Voltage Range 4.75 to 36V DC

Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
Automatic Standby current reduction (option)
Internal Sense Resistor option (no sense resistors required)
Passive Braking and Freewheeling
Single Wire UART & OTP for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics
HTSSOP package for best thermal resistance

参考资料

数据手册 2

TMC2225 Data Sheet (Rev.1.15) 03/15/2023

TMC2225 Data Sheet (Rev.1.14) 08/11/2023

应用笔记 2

AN-047: How to replace DRV8824 by TMC2224 08/09/2023

AN-001: Parameterization of spreadCycle™ 11/21/2016

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
TMC2225-SA	28-TSSOP_4.4_EP-4.4_MM	Material Declaration Reliablity Data	Ultra Librarian SamacSys
TMC2225-SA-T	28-TSSOP_4.4_EP-4.4_MM	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
步进电机驱动器 1
TMC2224	推荐新设计使用	Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop

工具及仿真模型

设计工具 1

TMC220x TMC222x Calculations

评估套件

Evaluation Board for TMC2225

立即购买更多内容

特性和优点

2-phase stepper motor up to 1.35A coil current (2A peak)
Supply Voltage 4.75 to 36V DC
UART
1 to 256 microsteps
Step/Dir interface
StealthChop^™ silent PWM mode
SpreadCycle^™ smart mixed decay
1 to 256 Microsteps
1.35A RMS, 36V

产品详情

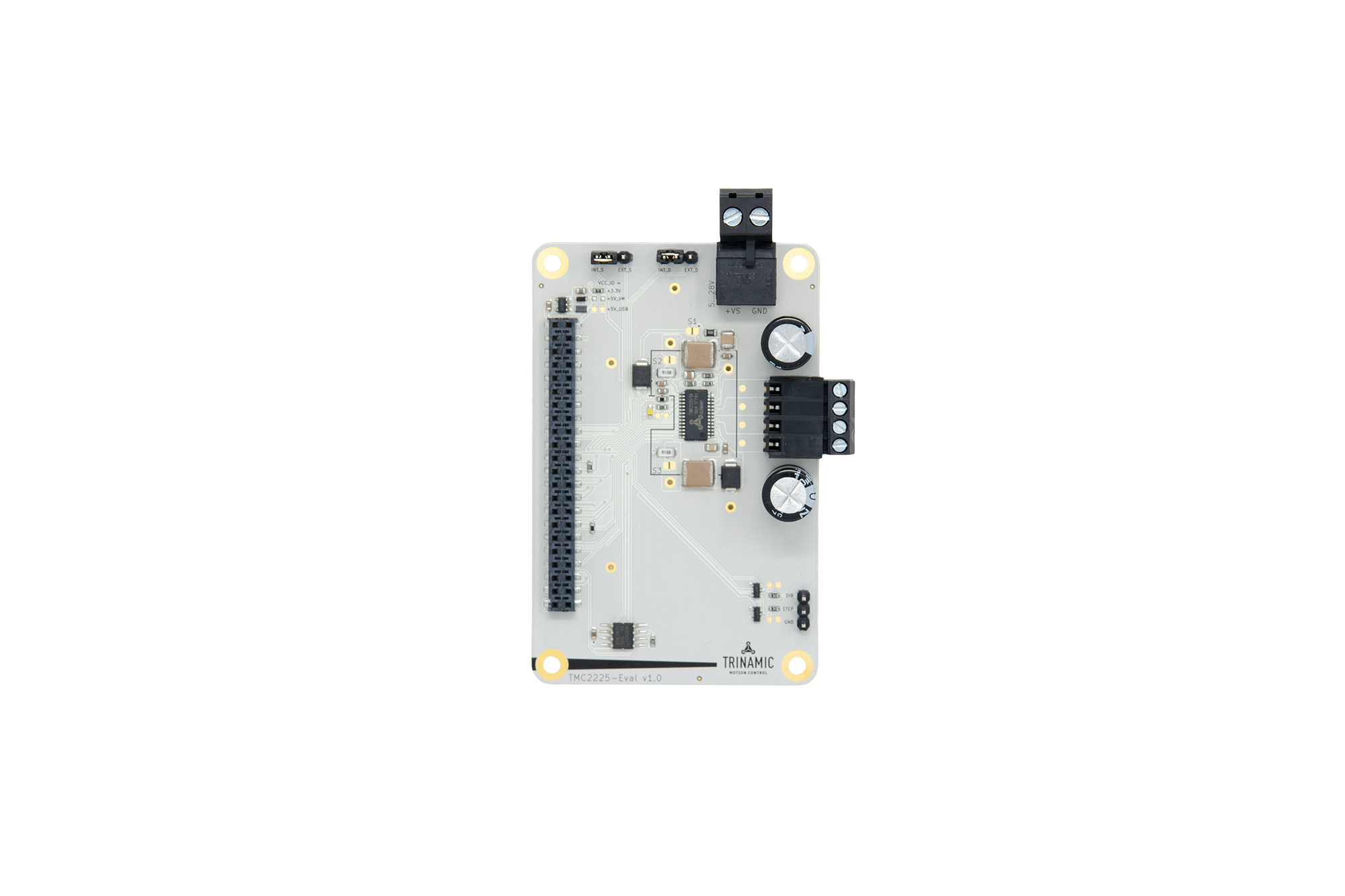

The TMC2225-EVAL allows you to explore all functions of the TMC2225-SA.

The TMC2225-EVAL-KIT is a set of MCU board Landungsbruecke, one Eselsbruecke bridge board and one TMC2225-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2225 are accessible with probes on the bridge board. TMC2225-EVAL can be used with or without the Landungsbrücke MCU board.

资料

Tmc2225 Eval User Manual (Rev.1.10)
1.18M

Tmc2225 Eval Schematic - Schematic (Rev.1.0)
408.01K

Tmc2225 Eval - Design Files (Rev.1.00)
5.04M

软件

TMCL-IDE

Evaluation Board for TMC2225

立即购买更多内容

特性和优点

TMC2225-SA stepper motor driver
Supply voltage 5-28V
I_phase up to 1.4_ARMS
Quiet operation with StealthChop^™
Configuration and extended diagnostics via UART
Control via Step&Dir interface
Board width 1.0", board height 1.0"
2x10 pin 0.1" header rows for pins/connectors
1 to 256 Microsteps
1.4A RMS, 28V

产品详情

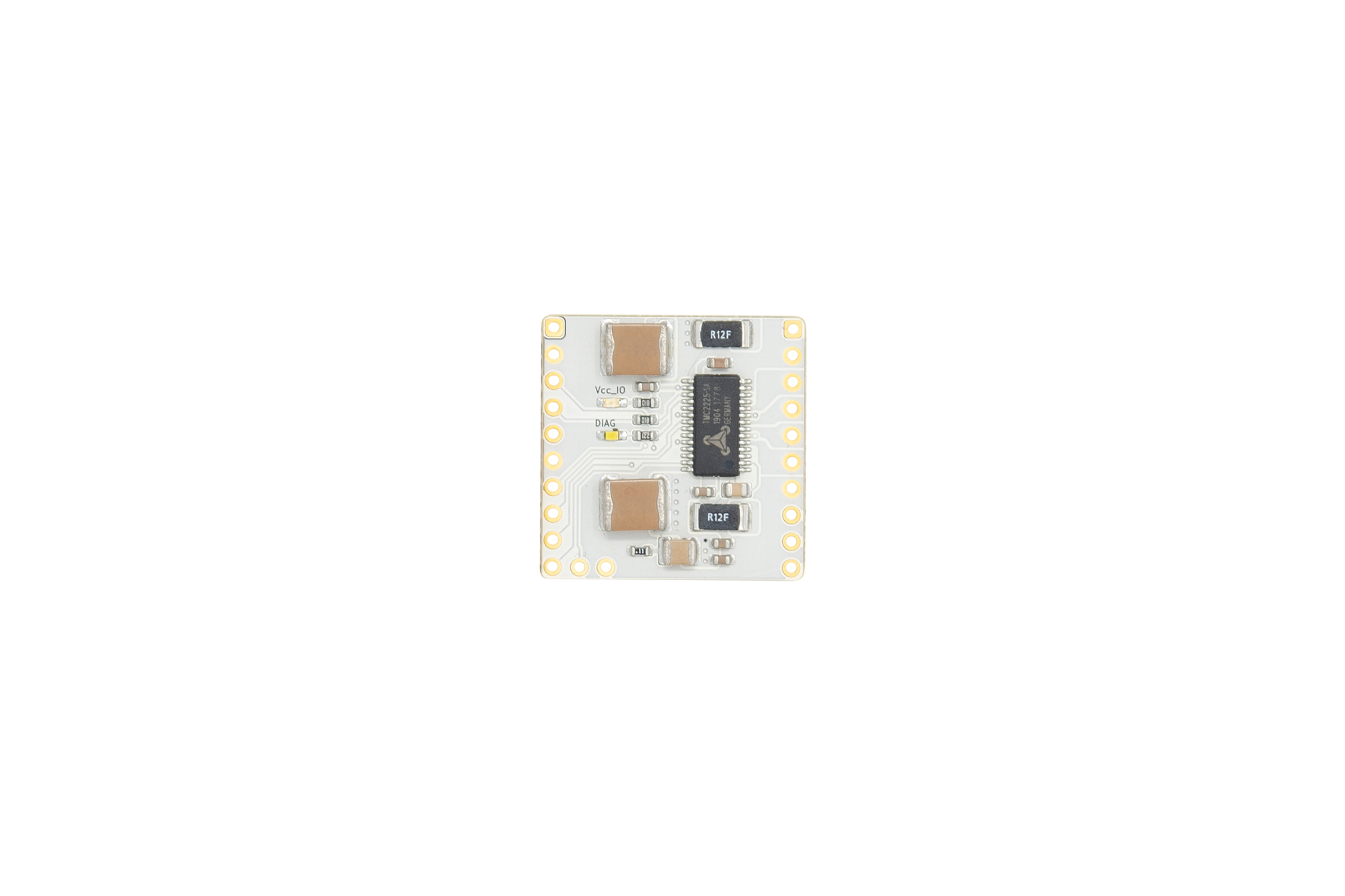

The TMC2225 breakout board is a development board with the dedicated TMC2225-SA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

资料

Tmc2225 Bob - Design Files (Rev.1.00)
185.79K

Tmc2225 Bob Schematics - Schematic (Rev.1.00)
158.76K

Tmc2225 Bob User Manual (Rev.1.02)
364.96K
