EVAL-ADUCRF101
ADuCRF101 Development Systems
Top
Overview
Product Details
The ADuCRF101 is a fully integrated data acquisition solution designed for low power wireless applications. It features a 12-bit ADC, a low power ARM Cortex™-M3 processor, a 431MHz to 464 MHz and 862 MHz to 928 MHz RF transceiver, and Flash/EE memory, in a 9 mm × 9 mm LFCSP package.

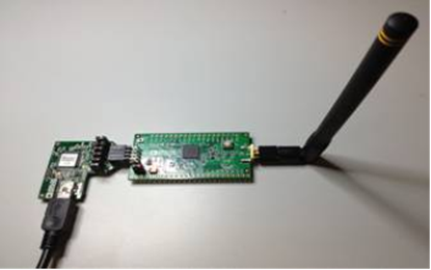

The ADuCRF101 mini board allows a user to program, debug and evaluate the performance of the ADuCRF101. Its small form factor makes it the ideal hardware for evaluation of large wireless sensor network.
Different hardware kits are available, from a mini board on its own, to a combination of emulator and boards.
Software Contents:
- Keil MDKARM evaluation version integrated software development tool.
- IAR EWARM evaluation version integrated software development tool.
- CM3WSD Serial Downloader
- Example Code
- Function Libraries
- Get Started User Guide
- Datasheets, Application Notes, Etc.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
UG-480: ADuCRF101 Evaluation Board User Guide1/23/2015PDF453 K
-
UG-481: ADuCRF101 Development System Getting Started Tutorial1/12/2015PDF900 K
-
MicroConverter® On-Chip Download/Debug Kernel1/17/2024
-
ADuCRF101 Board Outline11/18/2014PDF43 K
-
ADuCRF101 Schematic File11/18/2014PDF241 K
