EVAL-ADP2360
ADP2360 Evaluation Board

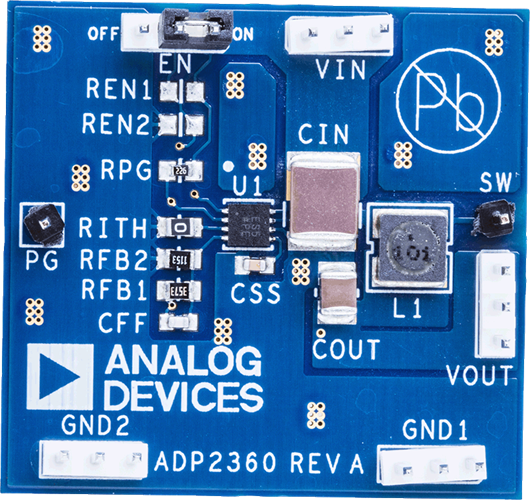

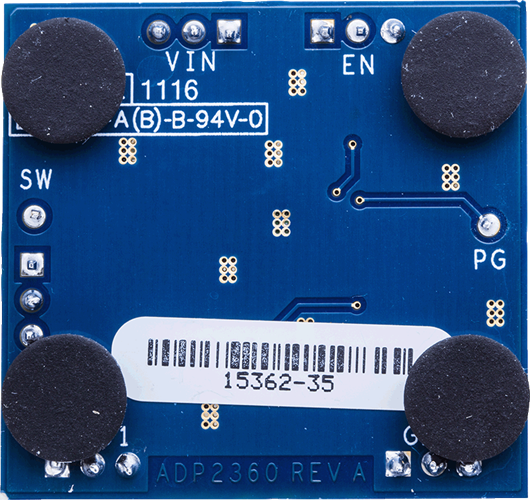

Top
-web.gif?rev=24fc0f8043d844479e3258775d6487bf&sc_lang=en&h=500&thn=1&hash=86DC5D774CF49F629C1AD34EBC20290C)
-web.gif?rev=869f8de04b6f4cd389aa7617f37363c4&sc_lang=en&h=500&thn=1&hash=0E48E20CE45682A03F16687D678DA9D0)
-web.gif?rev=24fc0f8043d844479e3258775d6487bf&sc_lang=en&h=270&thn=1&hash=997C3CD451363F6DD252955955125E35)
-web.gif?rev=869f8de04b6f4cd389aa7617f37363c4&sc_lang=en&h=270&thn=1&hash=B16C0687C57650C862CBD38F3103338E)
Overview
Features and Benefits
- Input voltage range: 4.5 V to 60 V
- Output voltage: 3.3 V
- Power good output
Product Details
The ADP2360CP-EVALZ evaluation board demonstrates the functionality of the ADP2360 dc-to-dc converter.
Use this evaluation board to evaluate simple device measurements, such as line regulation, load regulation, and efficiency. The evaluation board provides a power-good output and other features, such as soft start time. The maximum inductor current can be modified by changing component values.
Full specifications for the ADP2360 dc-to-dc converter are available in the product data sheet, which should be consulted in conjunction with UG-930 when working with the evaluation board.
Markets and Technologies
Applicable Parts
Package Contents
- ADP2360CP-EVALZ evaluation board
Documentation & Resources
-
UG-930: Evaluating the ADP2360 DC-to-DC Switching Regulator (Rev. A)5/31/2016PDF290 K
