MAX77816

PRODUCTION

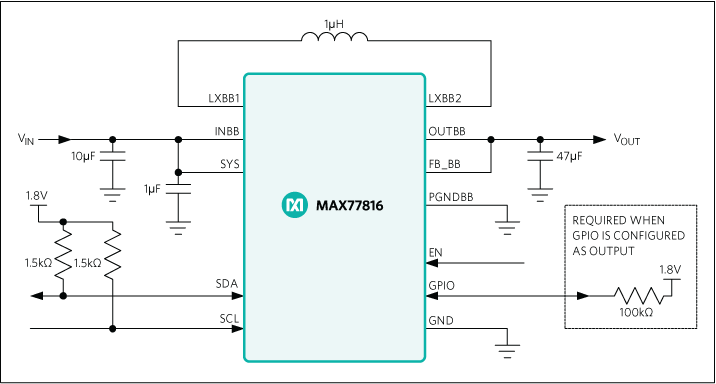

High-Efficiency Buck-Boost Regulator with 5A Switches

98% Efficiency Buck Boost with I²C Interface Delivering >3A of Continuous Output Current

Data Sheet (Rev. 4) Product Selection Table

Part Models: 8
1ku List Price: Starting From $1.38

Viewing:

Part Details

Buck and Boost Operation Including Seamless Transition between Buck and Boost Modes
- 2.3V to 5.5V V_IN Range
- 2.60V to 5.14V V_OUT with 20mV Step
- 3A Minimum Continuous Output Current (V_INBB ≥ 3.0V, V_OUTBB = 3.3V)
- Burst Current: 3.6A Minimum Output Current for 800μs (V_INBB ≥ 3.0V, V_OUTBB = 3.3V)
I²C Serial Interface Allows Dynamic V_OUT Adjustment and Provides Design Flexibility
97.5% Peak Efficiency
40µA Quiescent Current
Safety Features Enhance Device and System Reliability
- Soft-Start
- True Shutdown^™
- Thermal Shutdown and Short-Circuit Protection
Multifunction GPIO Pin
- MAX77816A/F: FPWM Mode Enable
- MAX77816B: Inductor Peak Current-Limit selection
- MAX77816C: Output Voltage Selection
- MAX77816D: Power-OK indicator
- MAX77816E: Interrupt Indicator
Small Size: 1.827mm × 2.127mm, 20-Bump WLP, 0.4mm Pitch

Part Models: 8
1ku List Price: Starting From $1.38

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX77816AEWP+	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816AEWP+T	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816BEWP+	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816BEWP+T	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816CEWP+	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816CEWP+T	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816DEWP+	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77816DEWP+T	Wafer-Level Package 5x4 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 15, 2018 - 1620D WAFER FAB
		pcn_1620d
MAX77816AEWP+	PRODUCTION
MAX77816AEWP+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Internal Power Switch Buck-Boost Regulators 3
MAX77801	RECOMMENDED FOR NEW DESIGNS	5.5V Input, 2A, High-Efficiency Buck-Boost Converter
MAX77813	PRODUCTION	5.5V Input, 2A, High-Efficiency Buck-Boost Converter
MAX8625	PRODUCTION	High-Efficiency, Seamless Transition, Step-Up/Down DC-DC Converter

Tools & Simulations

Software Development 1

MAX77816 Evaluation Kit Software, 1.0.1

EE-Sim Power® Tools 1

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

SIMPLIS Models 1

MAX77816 SIMPLIS Schematic

Evaluation Kits

Evaluation Kit for the MAX77816

Buy Now View Details

Features and Benefits

Buck and Boost Operation Including Seamless Transition between Buck and Boost Modes
- 2.3V to 5.5V V_IN Range
- 2.60V to 5.14V V_OUT with 20mV Step
- 3A Minimum Continuous Output Current (V_INBB ≥ 3.0V, V_OUTBB = 3.3V)
- Burst Current: 3.6A Minimum Output Current for 800µs (V_INBB ≥ 3.0V, V_OUTBB = 3.3V)
I²C Serial Interface Allows Dynamic V_OUT Adjustment and Provides Design Flexibility
97.5% Peak Efficiency
40μA Quiescent Current
Safety Features Enhance Device and System Reliability
- Soft-Start
- True Shutdown™
- Thermal Shutdown and Short-Circuit Protection
Multifunction GPIO Pin
- MAX77816A: FPWM Mode Enable
- MAX77816B: Inductor Peak Current-Limit Selection
- MAX77816C: Output Voltage Selection
- MAX77816D: Power-OK Indicator
- MAX77816E: Interrupt Indicator
Small Size: 1.827mm x 2.127mm, 20-Bump WLP, 0.4mm Pitch

Product Details

The MAX77816 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) for evaluating the IC. The IC is a high-current, high-efficiency buck-boost regulator targeting single-cell Li-ion battery-powered applications. It supports a wide output voltage range from 2.60V to 5.14V. The IC allows 5A (typ) maximum switch current. In buck mode, the output current can go as high as 4A, and in boost mode, the maximum output current can be 3A. A unique control algorithm allows highefficiency, outstanding line/load transient response, and seamless transition between buck and boost modes.

The IC features I²C-compatible serial interface. The I²C interface allows the output voltage to be dynamically adjusted thus enabling finer control of system power consumption. The I²C interface also provides features such as enable control and device status monitoring.

The multifunction GPIO pin is register settable to five different options such as FPWM mode enable and inductor peak current-limit selection. These options provide design flexibility that allows the IC to cover a wide range of applications and use cases.

The Maxim Command Module (MINIQUSB) can be used to enable USB-to-I²C communication between a Windows®-compatible PC and the EV kit. The EV kit software provides a Windows-based graphical user interface (GUI) to exercise the various features of the IC.
