MAX4952A

PRODUCTION

Dual Equalized 1.5/3.0/6.0GT/s SAS/SATA Redriver

Ultra-Small Equalizer/Redriver Supports SAS Data Rates Up to 6.0GT/s (Gigatransfers per Second)

Part Models
2
1ku List Price
Starting From $13.12
Viewing:

Part Details

  • Single +3.3V Supply Operation
  • SAS Gen I/II Up to 6.0GT/s
  • Excellent Return Loss
    • 8dB at 3.0GT/s
  • Supports SAS/SATA OOB (Out-of-Band) Signaling Very Fast Entry and Exit Time
    • 5ns (typ)
  • Internal Input/Output 50Ω Termination Resistors
  • Selectable Input Equalization
    • 0, 3dB
  • Standard 1000mVP-P (typ) Output
  • Selectable Output Preemphasis
    • 0, 3dB
  • Inline Signal Traces for Flowthrough Layout
  • Space-Saving, 3.5mm x 5.5mm TQFN Package
MAX4952A
Dual Equalized 1.5/3.0/6.0GT/s SAS/SATA Redriver

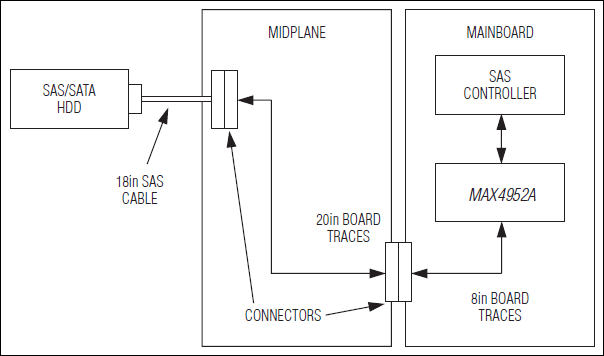

MAX4952A: Typical Application Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

MAX4952AEVKIT

Evaluation Kit for the MAX4952A

Features and Benefits

  • Application Circuit with SAS and SATA Input/Output
  • Eye Diagram Test Circuit with SMA Inputs/Outputs
  • Calibration Traces (50Ω Single-Ended Load Trace and 50Ω Single-Ended Through Trace)
  • Lead(Pb)-Free and RoHS Compliant
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX4952A evaluation kit (EV kit) provides a proven design to evaluate the MAX4952A dual-channel buffer. The EV kit contains four sections: an application circuit, characterization circuit, and two calibration traces.

The application circuit (Figure 1a) is designed to demonstrate the MAX4952A IC's use in redriving Serial-Attached SCSI (SAS) and Serial ATA (SATA) signals. This section of the EV kit operates from an external +5V supply that is regulated by an on-board LDO to +3.3V, which powers the MAX4952A (U1) device. All traces in the application circuit are 100Ω differential controlled-impedance traces.

The characterization circuit (Figure 1b) is provided for eye diagram evaluation using SMA connectors and 50Ω single-ended controlled-impedance traces. This section is powered by an external +3.3V supply.

Applications

  • Data Storage/Work Stations
  • Docking Stations
  • Servers

MAX4952AEVKIT
Evaluation Kit for the MAX4952A
