MAX4564
PRODUCTIONLow-Voltage, Dual-Supply, SPDT Analog Switch with Enable
Low-Voltage, Dual-Supply SPDT Analog Switch in SOT-23-8
- Part Models
- 4
- 1ku List Price
- Starting From $1.17
Part Details
- 60Ω max (40Ω, typ) On-Resistance (RON)
- 3Ω max (0.75Ω, typ) RON Matching Between Channels
- 10Ω (max) RON Flatness
- Low Charge Injection: 3pC (typ)
- Low ±1nA Leakage Current at +25°C
- Fast Switching
- tON = 60ns (max)
- tOFF = 40ns (max)
- Guaranteed Break-Before-Make Switching
- TTL/CMOS-Logic Compatible
- Low Crosstalk: -72dB (1MHz)
- High Off-Isolation: -77dB (1MHz)
- Bandwidth -3dB: > 450MHz (typ)

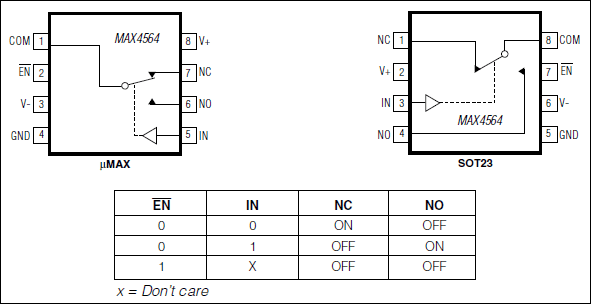

- Available in an 8-Pin SOT23 Package
The MAX4564 is a low-voltage, dual-supply, single-pole/double-throw (SPDT) analog switch designed to operate from dual ±1.8V to ±6V or single +1.8V to +12V supplies. The low on-resistance (RON = 40Ω at ±5V) and low power consumption (5µW) make this part ideal for audio, video, and battery-powered applications. This switch offers low leakage currents (1nA max) and fast switching speeds (tON = 60ns and tOFF = 40ns at ±5V, max).
The MAX4564 is available in 8-pin SOT23 and µMAX® packages.
Applications
- Audio and Video Switching
- Battery-Operated Systems
- Communication Systems
- Communications Circuits
- Sample-and-Hold Circuits
- Test Equipment
Documentation
Data Sheet 1
Reliability Data 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX4564EKA+ | Small-Outline Transistor Package | ||
| MAX4564EKA+T | Small-Outline Transistor Package | ||
| MAX4564EUA+ | Micro-MAX, Thin Shrink Small-Outline | ||
| MAX4564EUA+T | Micro-MAX, Thin Shrink Small-Outline |
