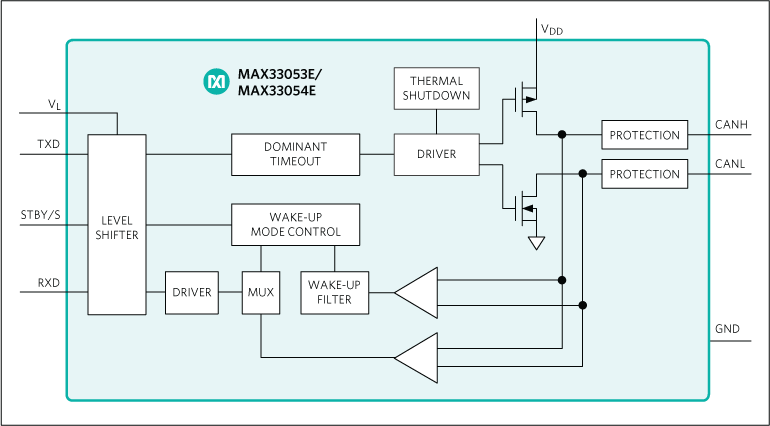

MAX33054E

• Integrated Protection Increases Robustness
  • ±65V Fault Tolerant CANH and CANL
  • ±25kV ESD HBM (Human Body Model)
  • ±25V Extended Common Mode Input Range (CMR)
  • Transmitter Dominant Timeout Prevents CAN Bus Lockup
  • Short-Circuit Protection
  • Thermal Shutdown
• MAX33053E Provides Flexible Design Options
  • Silent Mode S Enables/Disables Transmitter
  • 1.62V to 3.6V Logic-Supply (V_L) Range
• High-Speed Operation of Up to 2Mbps
• Operating Temperature Range of -40ºC to +125ºC in 8-pin SOIC Package

The MAX33053E Shield is a fully assembled and tested PCB that demonstrates the functionality of the MAX33053E fault-protected with extended common mode input range and ±25kV ESD Human Body Model (HBM) controller area network (CAN) transceiver. The shield features a digital isolator, used as a level translator (between the controller and the transceiver) and operates from a range of 1.71V to 5.5V supply.

Applications

• Building Automation
• Drone
• Industrial Automation
• Instrumentation
• Motor Control
• Programmable Logic Controller
• Smart Grid Equipment

• Integrated Protection Increases Robustness
  • ±65V Fault Tolerant CANH and CANL
  • ±25kV ESD HBM (Human Body Model)
  • ±25V Extended Common Mode Input Range (CMR)
  • Transmitter Dominant Timeout Prevents CAN Bus Lockup
  • Short-Circuit Protection
  • Thermal Shutdown
• MAX33054E Provides Flexible Design Options
  • STBY Input for Low-Current Mode, Slow Slew Rate, Normal Operating Mode
  • 1.62V to 3.6V Logic-Supply (V_L) Range
• High-Speed Operation of Up to 2Mbps
• Operating Temperature Range of -40ºC to +125ºC in 8-pin SOIC Package

The MAX33054E Shield is a fully assembled and tested PCB that demonstrates the functionality of the MAX33054E fault-protected with extended common mode input range and ±25kV ESD Human Body Model (HBM) controller area network (CAN) transceiver. The shield features a digital isolator, used as a level translator (between the controller and transceiver) and operates from 1.71V to 5.5V supply.
