MAX2880

PRODUCTION

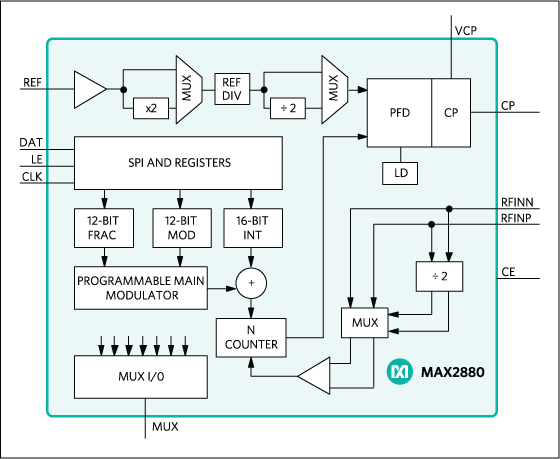

250MHz to 12.4GHz, High-Performance, Fractional/Integer-N PLL

High-Frequency PLL Breaks New Performance Barriers

Data Sheet (Rev. 2) Product Selection Table

Part Models: 2
1ku List Price: Starting From $7.29

Viewing:

Part Details

Integer and Fractional-N Modes
250MHz to 12.4GHz Broadband RF Input
Normalized In-Band Noise Floor
- -229dBc/Hz in Integer Mode
- -227dBc/Hz in Fractional Mode
-10dBm to +5dBm Wide Input Sensitivity
Low-Noise Phase Frequency Detector
- 125MHz in Fractional Mode
- 140MHz in Integer Mode
Reference Frequency Up to 210MHz
Operates from +2.8V to +3.6V Supply
Cycle Slip Reduction and Fast Lock
Software and Hardware Shutdown
Software Lock Detect
On-Chip Temperature Sensor
Compatible with +1.8V Control Logic
Phase Adjustment

Part Models: 2
1ku List Price: Starting From $7.29

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX2880ETP+	20-LFCSP-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX2880ETP+T	20-LFCSP-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 14, 2023 - 2275A WAFER FAB
		pcn_2275a
MAX2880ETP+	PRODUCTION
MAX2880ETP+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

Software Development 1

MAX2880 PLL EV Kit Software, 2.0.1

Evaluation Kits

Evaluation Kit for the MAX2880

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX2880
All Critical Peripheral Components Included
PC-Based Control Software
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX2880 evaluation kit (EV kit) facilitates the evaluation of the MAX2880 wide-band phase-locked loop (PLL). It is a fully assembled and tested frequency synthesizer consisting of the IC, 5840MHz to 6040MHz external VCO, 50MHz TCXO, passive-loop filter, and low-dropout regulators.

A software application, running on a PC with Windows XP^® or later Windows^® operating system, simplifies the control of the IC in various operating modes and features.

Applications

Microwave Point-to-Point Systems
RF DAC and ADC Clocks
Satellite Communications
Test and Measurement
Wireless Infrastructure

Resources

MAX2880EVKIT Gerber Files
423.47K
