LT5558

LAST TIME BUY

600MHz to 1100MHz High Linearity Direct Quadrature Modulator

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

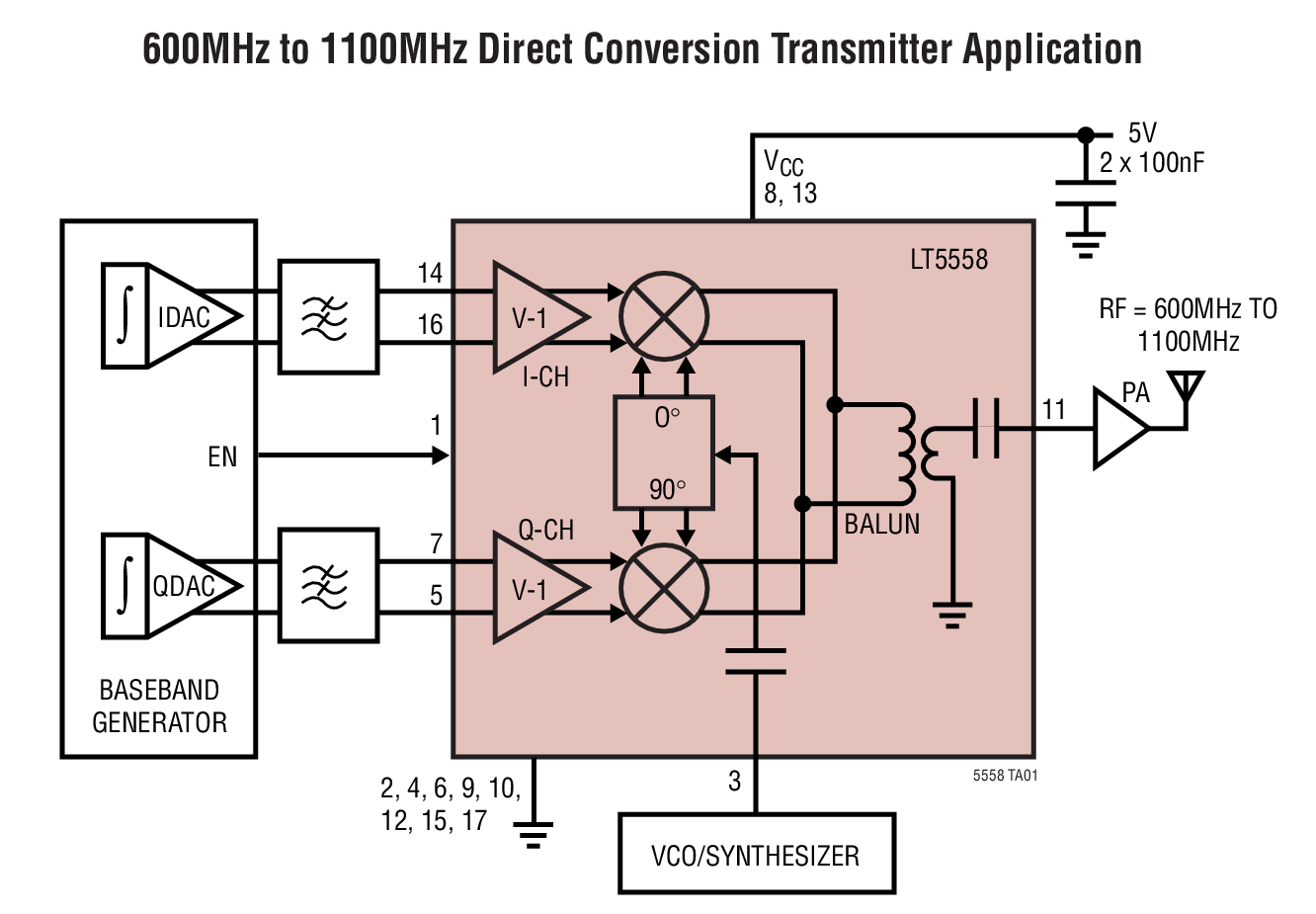

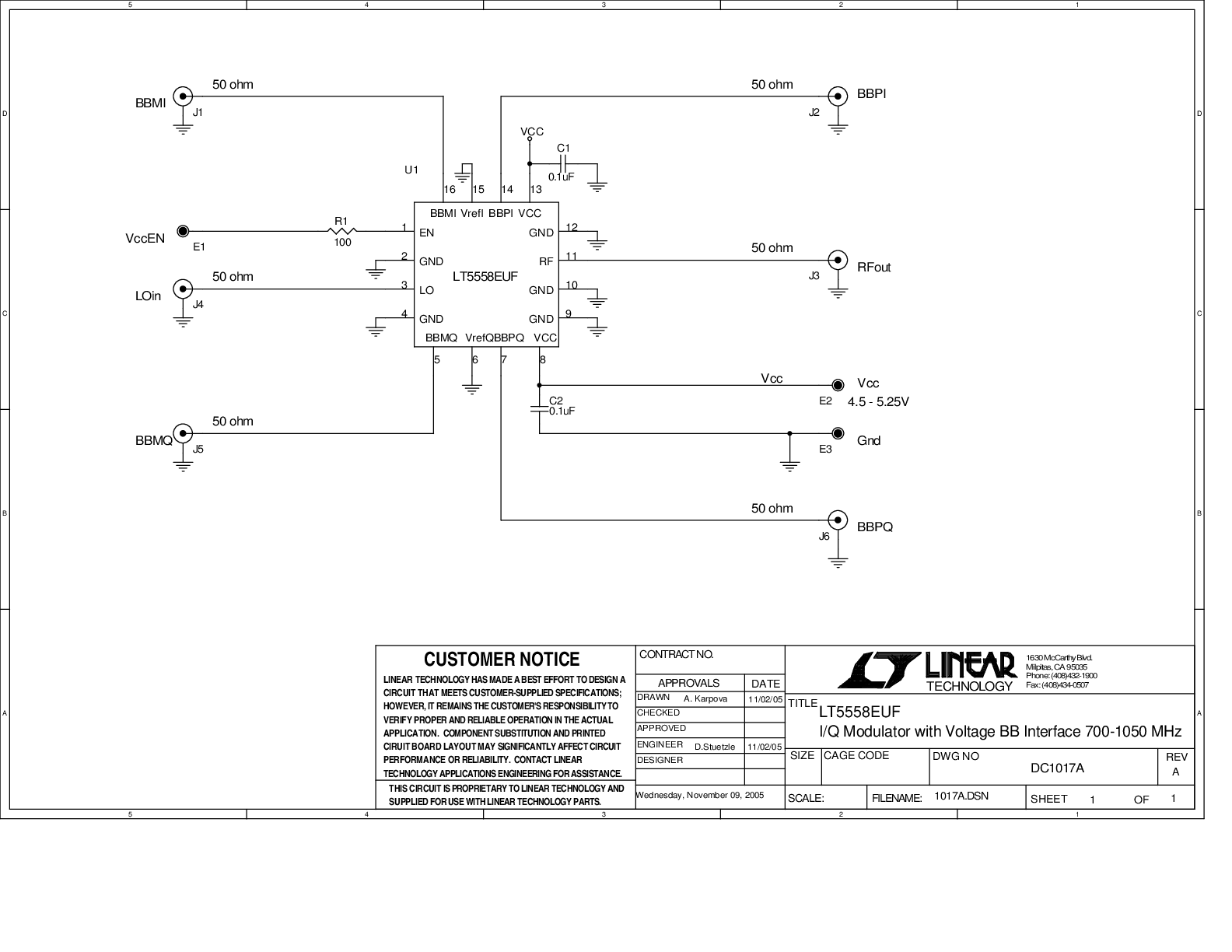

Direct Conversion from Baseband to RF
High OIP3: + 22.4dBm at 900MHz
Low Output Noise Floor at 20MHz Offset:
- No RF: –158dBm/Hz
- P_OUT = 4dBm: –152.7dBm/Hz
Low Carrier Leakage: –43.7dBm at 900MHz
High Image Rejection: –49dBc at 900MHz

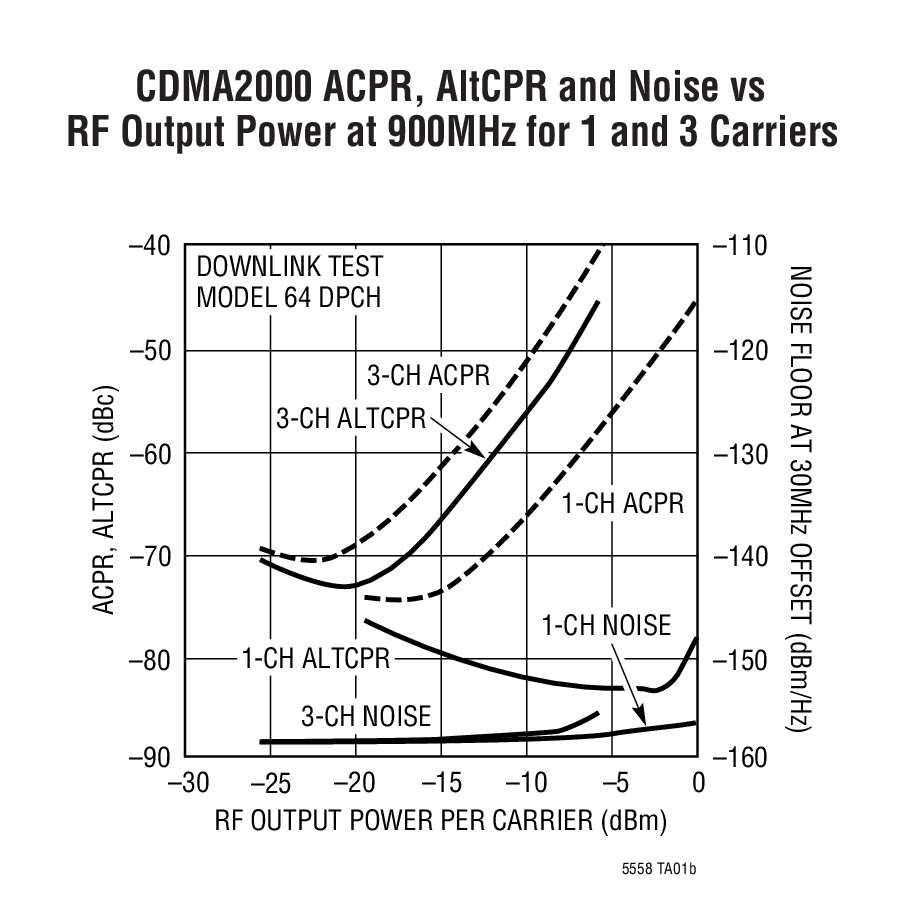

3 Channel CDMA2000 ACPR: –70.4dBc at 900MHz
Integrated LO Buffer and LO Quadrature Phase Generator
50Ω AC-Coupled Single-ended LO and RF Ports
High Impedance Interface to Baseband Inputs with 2.1V Common Mode Voltage

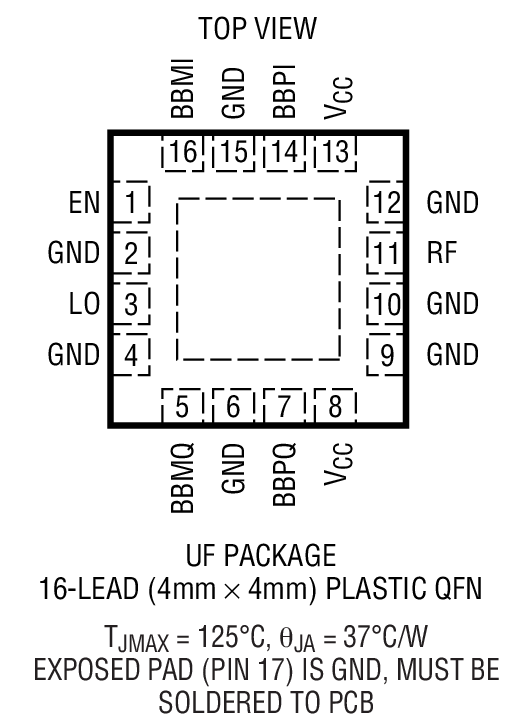

16-Lead QFN 4mm × 4mm Package

Part Models: 2
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT5558EUF#PBF	16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT5558EUF#TRPBF	16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 28, 2022 - 22_0058 Obsolescence of Generics LT5500/LT5511/LT5515/LT5518/LT5528/LT5558/LT5571/LTC5544
		PDN22_0058_Form Material_Report
LT5558EUF#PBF	LAST TIME BUY
LT5558EUF#TRPBF	LAST TIME BUY
