HMC881A

RECOMMENDED FOR NEW DESIGNS

2.4 GHz to 4 GHz, Tunable Low-Pass Filter

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Amplitude settling time: 200 ns (typical)
Wideband rejection: ≥35 dB
Single-chip replacement for mechanically tuned designs

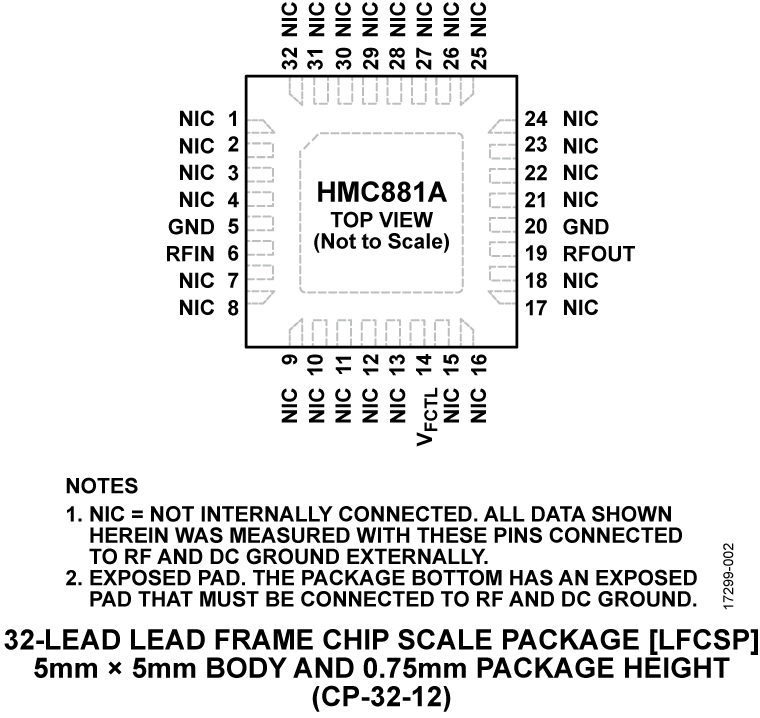

RoHS compliant, 32-lead, 5 mm × 5 mm LFCSP package

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC881A: 2.4 GHz to 4 GHz, Tunable Low-Pass Filter Data Sheet (Rev.0) 05/02/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC881ALP5E	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC881ALP5ETR	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

S-Parameter Files (S2P)

S-Parameters for RF and Microwave Tunable Filters

Open Tool

Evaluation Kits

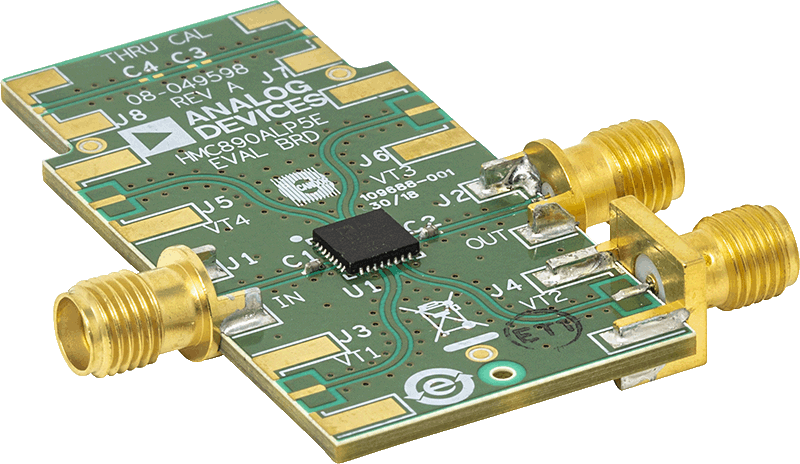

HMC881A Evaluation Board

Buy Now View Details

Product Details

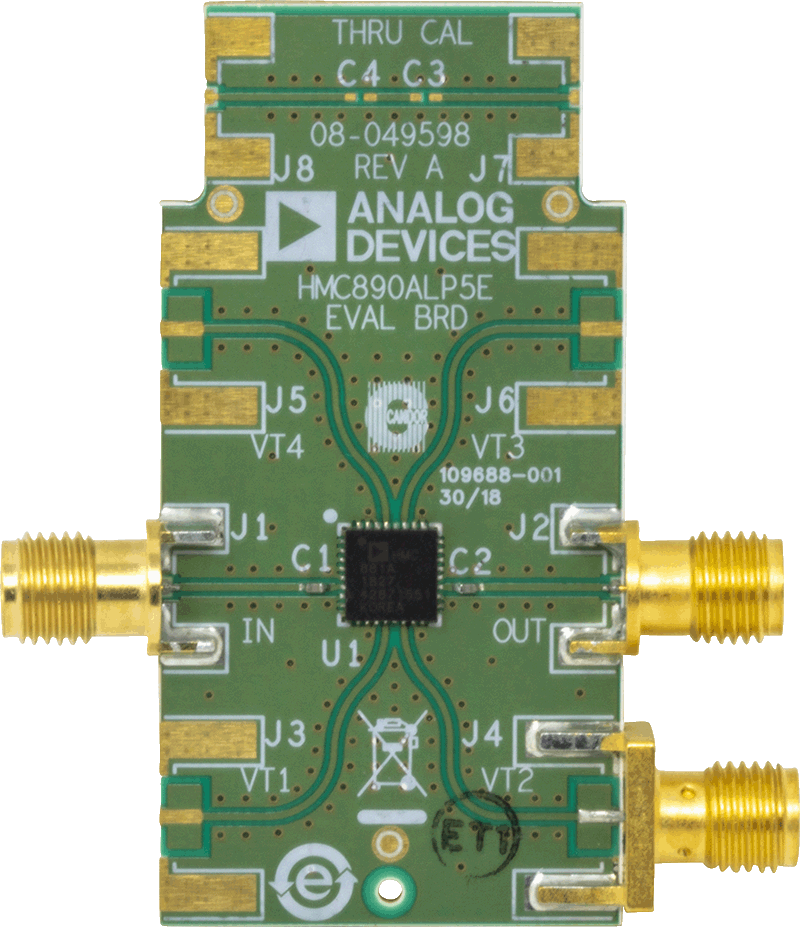

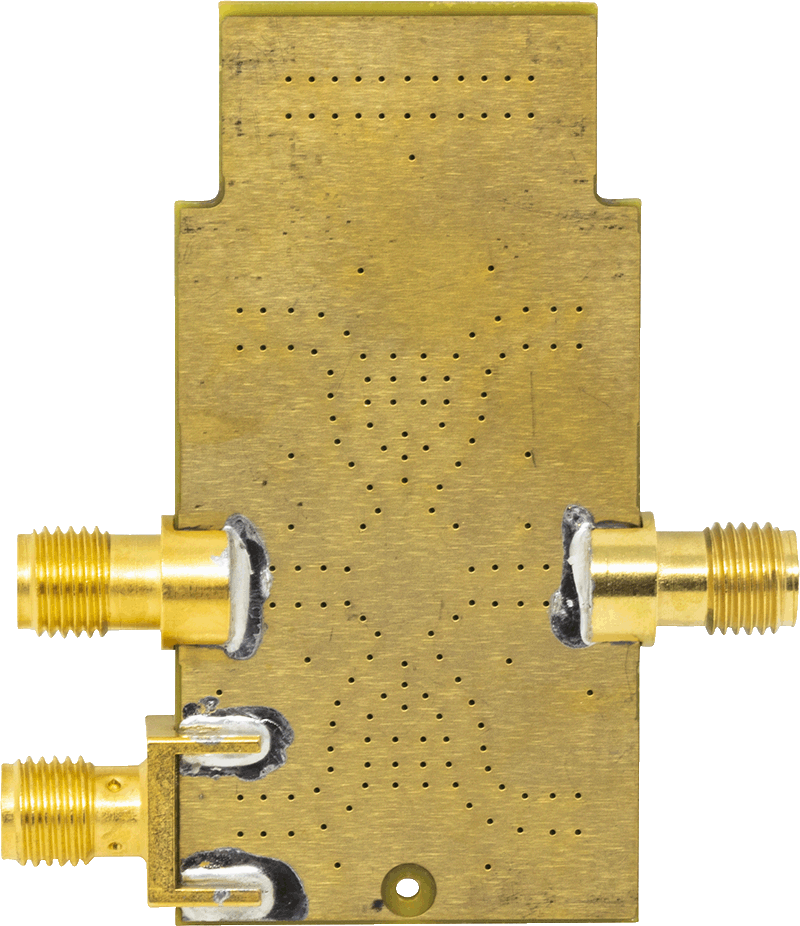

All RF traces are routed on Layer 1 (primary side) and the remaining three layers are ground planes that provide a solid ground for RF transmission lines. The top dielectric material is Rogers 4350, which offers low loss performance. The prepreg material in Layer 2 attaches the Isola 370HR core layer with copper traces layers above and below the core layer. Both prepreg material and the Isola 370HR core layer are used to achieve the required board finish thickness.

The circuit board in this application uses RF circuit design techniques. Signal lines must have 50 Ω impedance and the package ground leads and exposed pad must be connected directly to the ground plane. Use a sufficient number of via holes to connect the top and bottom ground planes.

For additional evaluation board information please see the data sheet.
