HMC376

RECOMMENDED FOR NEW DESIGNS

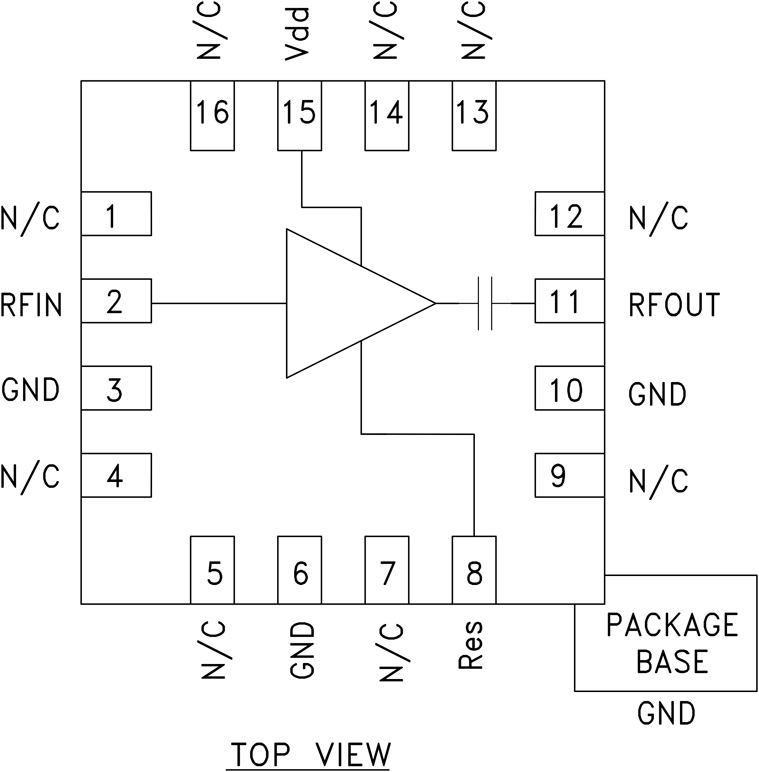

Low Noise Amplifier SMT, 0.7 - 1.0 GHz

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Noise Figure: 0.7 dB
Output IP3: +36 dBm
Gain: 15 dB
Externally Adjustable Supply Current
Single Positive Supply: +5V
50 Ohm Matched Input/Output

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC376 Data Sheet 04/22/2015

Application Note 3

Thermal Management for Surface Mount Components General Application Note 11/11/2015

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC376LP3E	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC376LP3ETR	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 29, 2023 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products
		PCN22_0048_Form Material_Report Qualification Results Summary Detailed Change Description
HMC376LP3E	PRODUCTION
HMC376LP3ETR	PRODUCTION
Aug 28, 2019 - 19_0204 Moisture Sensitivity Level Rating Change for Select Packaged Products
		PCN19_0204_Form Material_Report Qualification Results Summary Qualification Results Summary
HMC376LP3E	PRODUCTION
HMC376LP3ETR	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool

S-Parameter 1

HMC376 S-Parameters

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
