HMC-C045

Obsolete

Low Noise Amplifier Module, 1.8 - 4.2 GHz

Viewing:

Part Details

  • Noise Figure: 0.7 dB @ 2.4 GHz
  • Gain: 26 dB
  • OIP3: +26 dBm
  • P1dB Output Power: +15.5 dBm
  • 50 Ohm Matched Input/Output
  • Hermetically Sealed Module
  • Field Replaceable SMA Connectors
  • -55 to +85°C Operating Temperature
HMC-C045
Low Noise Amplifier Module, 1.8 - 4.2 GHz

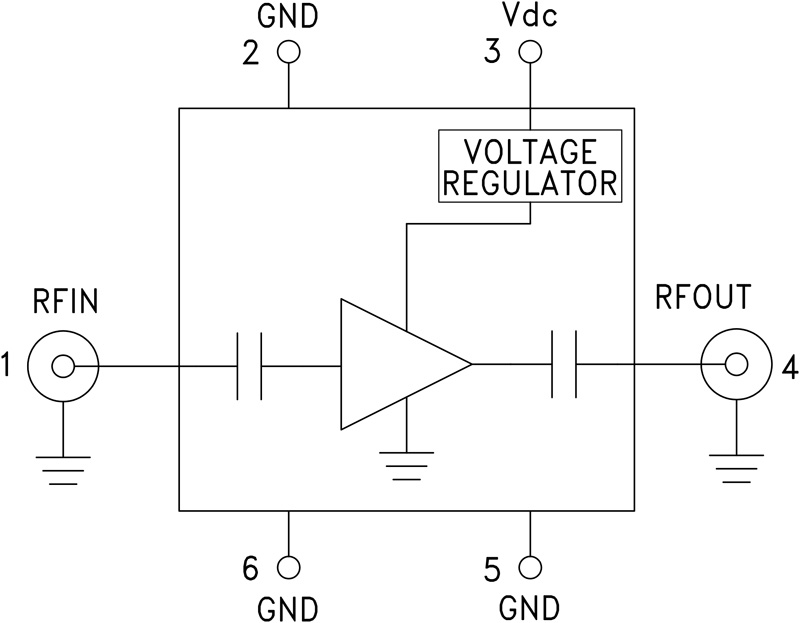

hmc-c045_fbl
