ADRF5130

RECOMMENDED FOR NEW DESIGNS

High Power, 44 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 3.5 GHz

Data Sheet (Rev. C) Product Selection Table

Viewing:

Part Details

Reflective, 50 Ω design
Low insertion loss:
- 0.6 dB typical to 2.0 GHz
- 0.7 dB typical to 3.5 GHz
High isolation
- 50 dB typical to 2.0 GHz
- 46 dB typical to 3.5 GHz
High power handling
- RF input power, continuous wave (CW) at T_CASE = 85°C
  - 43 dBm maximum operating
  - 46.5 dBm absolute maximum rating

High linearity
- 0.1 dB compression (P0.1dB): 46 dBm typical
- Input third-order intercept (IP3)
  - 68 dBm typical to 2 GHz
  - 65 dBm typical to 3.5 GHz
ESD ratings
- Human body model (HBM): 2 kV, Class 2
- Charged device model (CDM): 1.25 kV
Single positive supply: V_DD = 5 V
Positive control, TTL-compatible: V_CTL = 0 V or V_DD

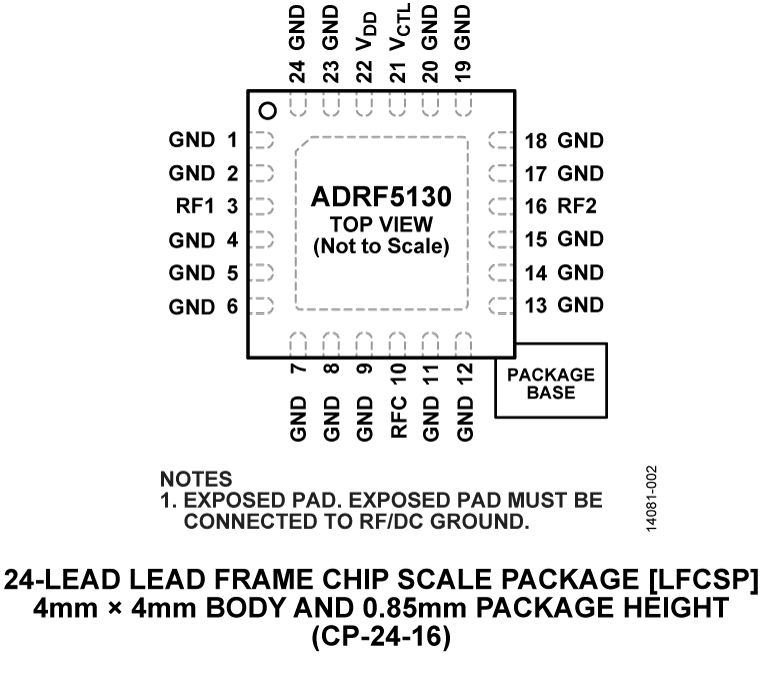

24-lead, 4 mm × 4 mm LFCSP package (16 mm²)

Documentation

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

S-Parameter 1

ADRF5130 S-parameters

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

Evaluation Kits

ADRF5130 Evaluation Board

Buy Now View Details

Product Details

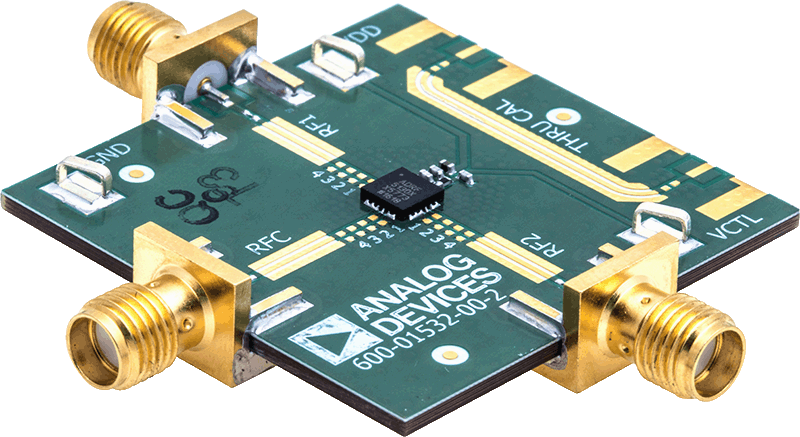

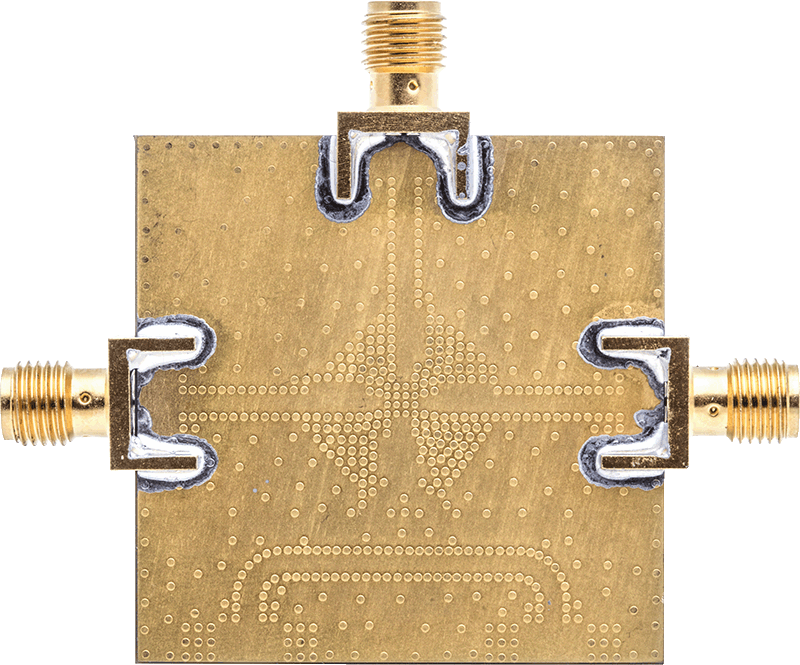

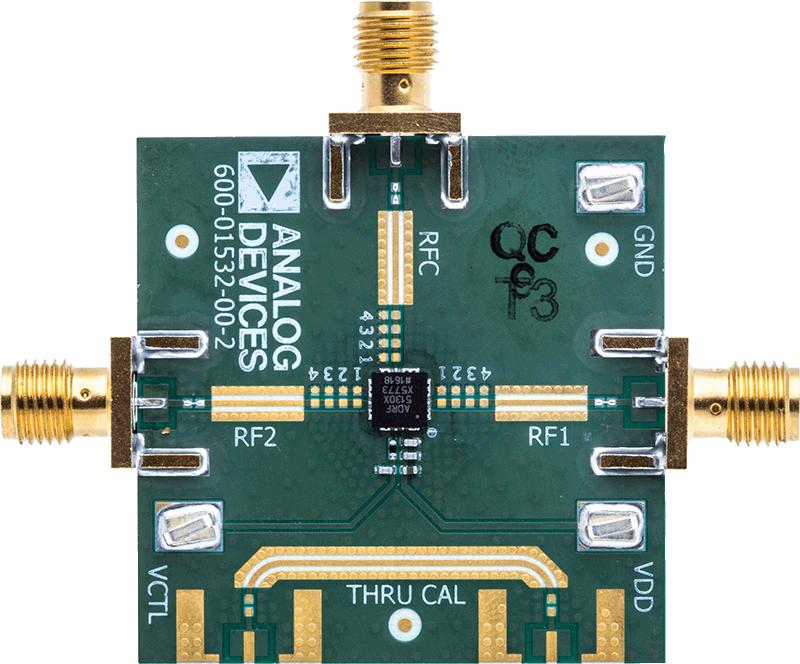

The ADRF5130-EVALZ is a fully populated, RO4350 based evaluation board and it is constructed of an 8-layer material for thermal management. A single power supply of 5 V should be applied to the VDD test point while ground reference is connected to the GND test point.

A single control voltage of 0/+5 V that select the switch state is applied to the VCTL test point. The RF input signal can be applied to the PC mount SMA RF connector labeled RFC and the RF output signals can be measured on the PC mount SMA RF connectors labeled RF1 and RF2.
