ADM3490E

PRODUCTION

3.3 V, ±15 kV ESD-Protected, RS-485/RS-422 Transceiver (Full Duplex, 12Mbps)

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.73

Viewing:

Part Details

TIA/EIA RS-485/RS-422 compliant
±15 kV ESD-protection on RS-485 input/output pins
Data rates - ADM3490E/ADM3491E: 12 Mbps
Full duplex
32 nodes on the bus

Receiver open-circuit, fail-safe design
Outputs high-Z when disabled or powered off
−7 V to +12 V common-mode input range
Thermal shutdown and short-circuit protection

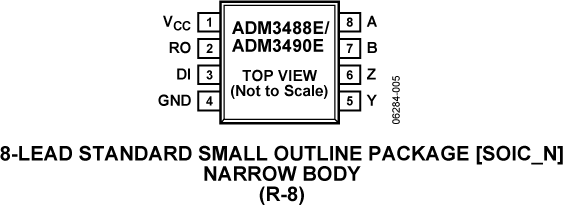

Industry-standard 75176 pinout
8-lead SOIC package

Part Models: 2
1ku List Price: Starting From $1.73

Documentation

Data Sheet 1

ADM3483E/ADM3486E/ADM3488E/ADM3490E/ADM3491E: 3.3 V, ±15 kV ESD-Protected, Half- and Full-Duplex, RS-485/RS-422 Transceivers Data Sheet (Rev.A) 12/02/2010

Application Note 2

AN-1176: Component Footprints and Symbols in the Binary .Bxl File Format 02/07/2014

AN-960: RS-485/RS-422 Circuit Implementation Guide 07/09/2020

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM3490EARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADM3490EARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 1

ADM3490E IBIS Model

Evaluation Kits

Standard RS-485 Full-Duplex (8-lead SOIC) Evaluation Board, EVAL-RS485FD8EBZ

Buy Now View Details

Product Details

The EVAL-RS485FD8EBZ allows quick and easy evaluation of full-duplex RS-485 transceivers with standard 8-lead SOIC footprints. The evaluation board allows interfacing via screw terminal block to digital I/O for driver input (DI) and receiver output (RO). Bus signals A, B, Y and Z (full-duplex bus) can be connected to a bus screw terminal block. Termination resistors are fitted across A and B, as well as Y and Z. These can be connected in half-duplex configuration (A to Y, B to Z), in order to evaluate the RS-485 driver. Footprints are provided for pull-up and pull-down (biasing resistors) on the receiver inputs in order to provide the option to evaluate an RS-485 receiver with this configuration.

Devices for evaluation on the board must be ordered separately.

Resources

UG-543:Evaluation Boards for Full-Duplex and Half-Duplex RS-485 Transceivers (Rev.A)
783 kB
