ADH463S
RECOMMENDED FOR NEW DESIGNSAerospace GaAs, Low Noise AGC Amplifier 2 to 20 GHz, LH250 Package
- Part Models
- 2
- 1ku List Price
- Starting From $510.78
Part Details
- Gain: 15dB
- Low Noise Figure: 2.5dB @ 10GHz
- RF Input Power: +18dBm
- Optional Vgg2 for Automatic Gain Control
- Only draws 60mA at 5Vdc

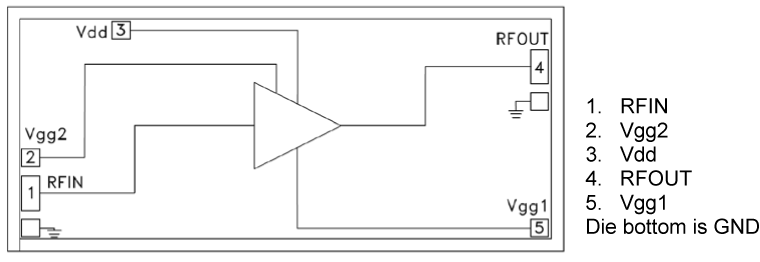

The ADH463S is a low noise automatic gain control (AGC) amplifier utilizing GaAs PHEMT technology. The LNA provides 15 dB of typical gain from 2 GHz to 20 GHz. The ADH463S is ideal for use in converters as a LNA or driver amplifier in EW and phased array applications. The low noise figure of 2.5 dB helps maintain good system noise performance.
APPLICATIONS
- Space & Military
- Converters
- Point-to-Point & VSAT Radios
- Test Instrumentation
- EW
- Phased Array
Documentation
Data Sheet 2
Application Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADH463-000C | CHIPS OR DIE | ||
| ADH463-701LH250 | 12-Lead LCC (6.35mm x 6.35mm x 1.12) |
This is the most up-to-date revision of the Data Sheet.
