ADMV8502

RECOMMENDED FOR NEW DESIGNS

90 MHz to 225 MHz, Digitally Tunable, Band-Pass Filter

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $44.13

Viewing:

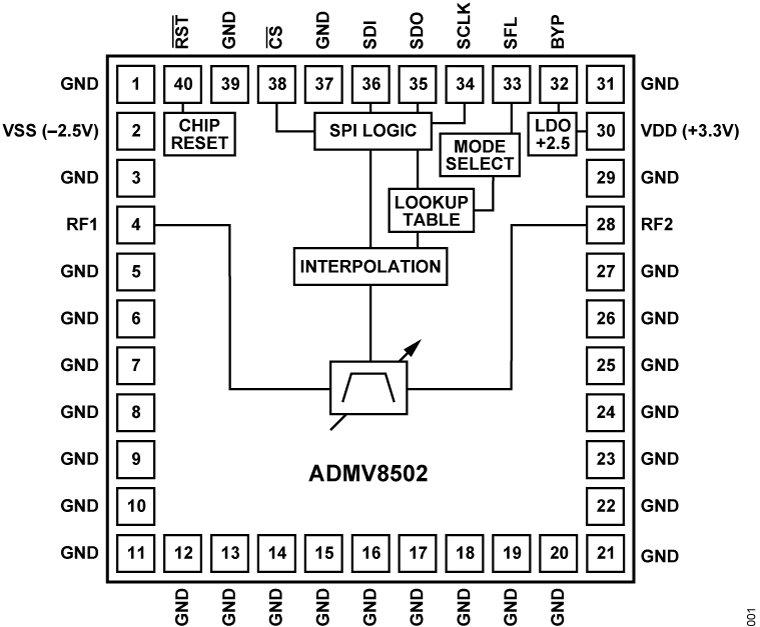

Part Details

Digitally tunable, octave, band-pass tuning
3 dB bandwidth: 9% ± 2%
Rejection (20 dB): 17% away from f_CENTER
Single chip replacement for discrete filter banks
Compact 10 mm × 10 mm LGA package

Part Models: 2
1ku List Price: Starting From $44.13

Documentation

Data Sheet 1

ADMV8502: 90 MHz to 225 MHz, Digitally Tunable, Band-Pass Filter Data Sheet (Rev.0) 02/21/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

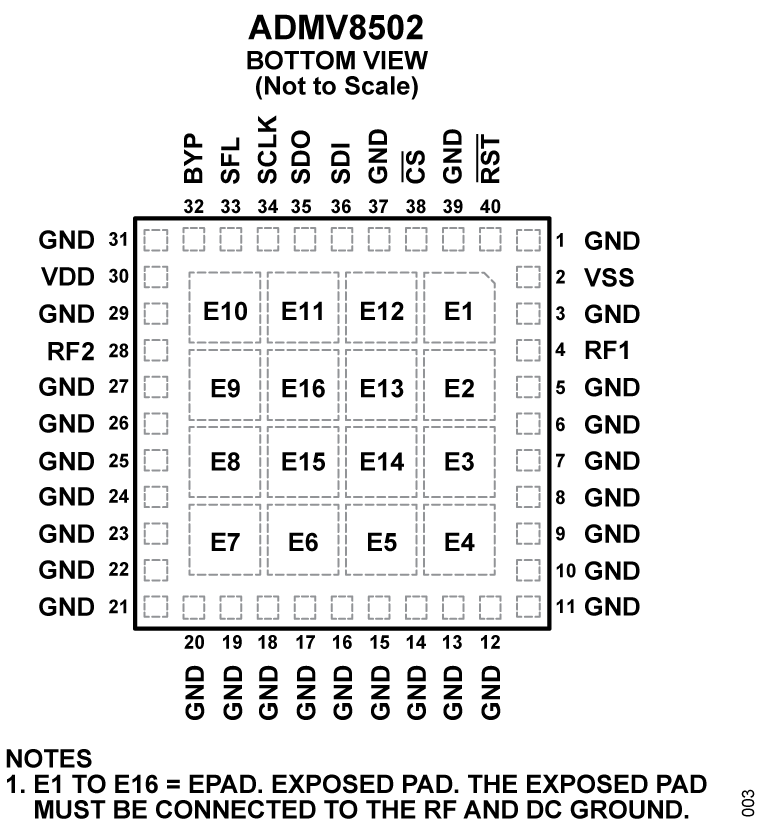

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV8502ACCZ	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADMV8502ACCZ-R7	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADMV8502 90 MHz to 225 MHz, Digitally Tunable, Band-Pass Filter

Buy Now View Details

Features and Benefits

Fully featured evaluation board for the ADMV8502
On-board system demonstration platform (SDP-S) connector for the SPI
Evaluation using on-board LDO regulators powered by the USB
ACE software interface for SPI control

Product Details

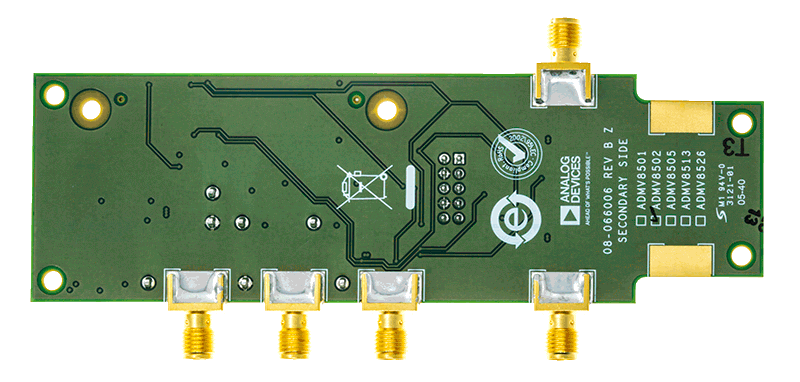

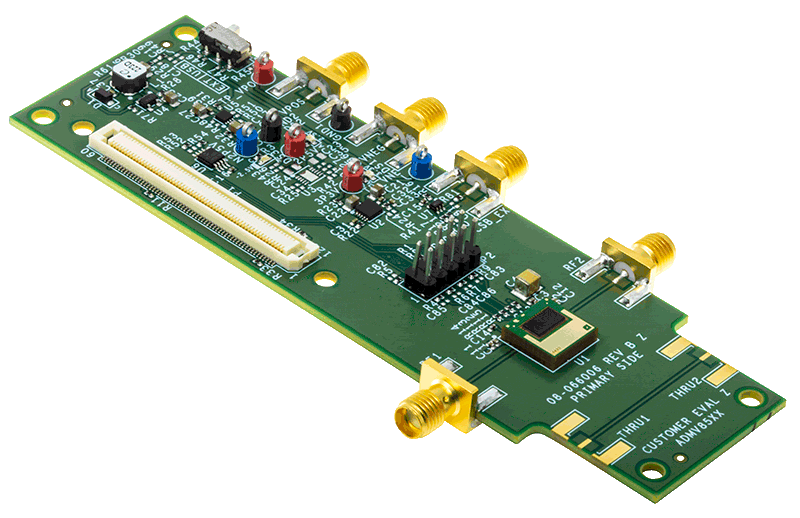

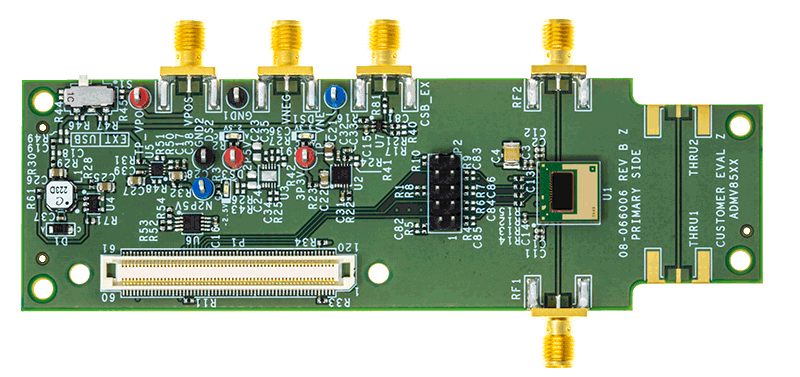

The ADMV8502-EVALZ is available for evaluating the ADMV8502 digitally tunable, band-pass filter (BPF). The ADMV8502-EVALZ incorporates the ADMV8502 chip, as well as a negative voltage generator, low dropout (LDO) regulators, and an interface to the EVAL-SDP-CS1Z (SDP-S) system demonstration platform (SDP) to allow simple and efficient evaluation. The negative voltage generator and LDO regulators allow the ADMV8502 to be powered by either the 5 V USB supply voltage from the PC via the SDP-S or by using two external power supplies.

The ADMV8502 is an IC that features a digitally selectable frequency of operation. The chip can be programmed using a 4-wire serial peripheral interface (SPI), and the SDP-S controller allows the user to interface with the SPI of the ADMV8502 through the Analog Devices, Inc., Analysis, Control Evaluation (ACE) software.

For full details on the ADMV8502, see the ADMV8502 data sheet, which must be consulted in conjunction with this user guide when using the ADMV8502-EVALZ.
