ADIS17001

Obsolete

Low Power, Small Form Factor Video Analytics Camera

Data Sheet (Rev. PrA) Product Selection Table

Viewing:

Part Details

Low power QVGA imager with logarithmic sensitivity
- 130dB dynamic range
- Edge detection and homography analytics algorithm for tracking and counting object motion
Low power ADSP Blackfin^® digital signal processing
- 512Mb LPDDR SRAM for advanced algorithms
Image Stabilization
- Dual axial digital gyroscope, up to ± 100°/s dynamic range
- Tri-axial digital accelerometer, up to ±16 g dynamic range
Autonomous operation and data collection
- Configurable boot-loader installed within flash memory
Factory calibrated optical focus and alignment
Conformal coated for environmental mitigation
Designed to be FCC recognized:
- FCC CFR 47 Part 15, Subpart B, class B
Programmable operation and control for custom video analytics firmware
Secure authentication option available
USB 2.0 compliant interface for data, supply, ground
Single-supply: 4.75V-5.25V via ruggedized USB 2.0
Operating temperature range: −40°C to +85°C
10kV ESD interface protection

Documentation

Data Sheet 1

ADIS17001: Low Power, Small Form Factor Video Analytics Camera Preliminary Data Sheet (Rev.PrA) 03/13/2017

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

OBSOLETE - ADIS1700x Vision Sensing Camera Module Eval Board

Buy Now View Details

Features and Benefits

Analog Devices ADSP-BF707 processor
USB 2.0 compliant interface
10kV ESD interface
Analog Devices ADVS200x low-power monochrome QVGA imager with logarithmic sensitivity

Product Details

The ADIS1700X line of products were discontinued prior to release, the ADIS17001AMLZ/DEV is no longer supported, or available. There are no recommended replacements.

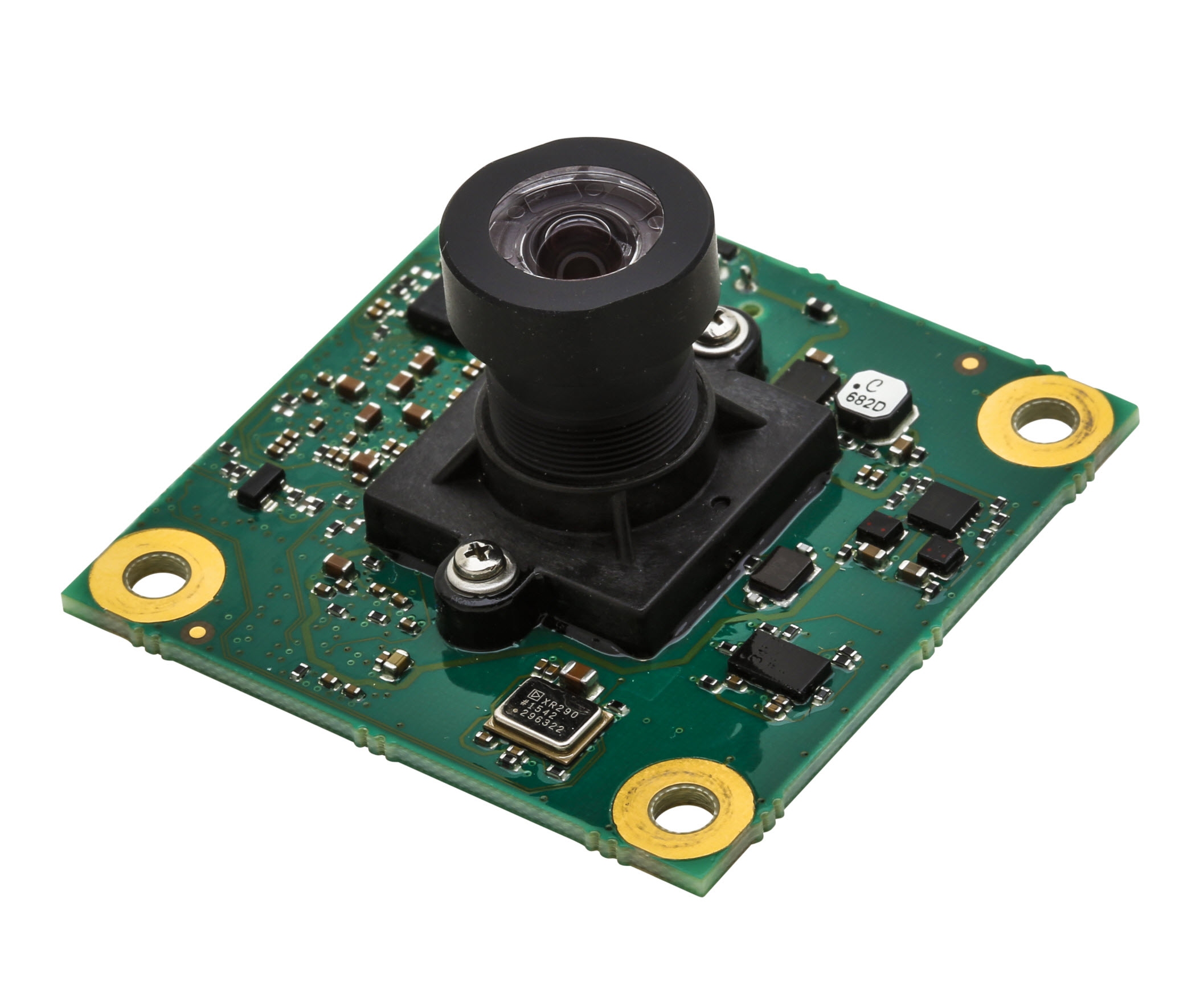

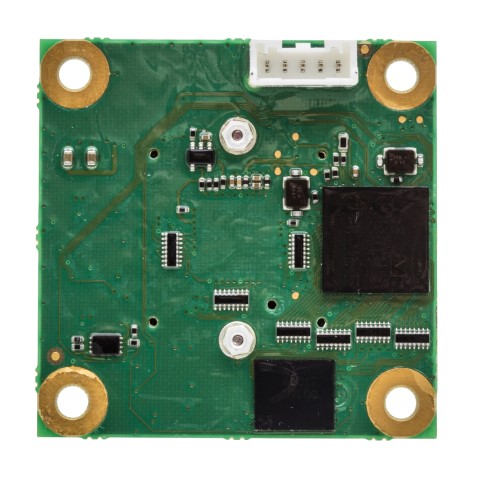

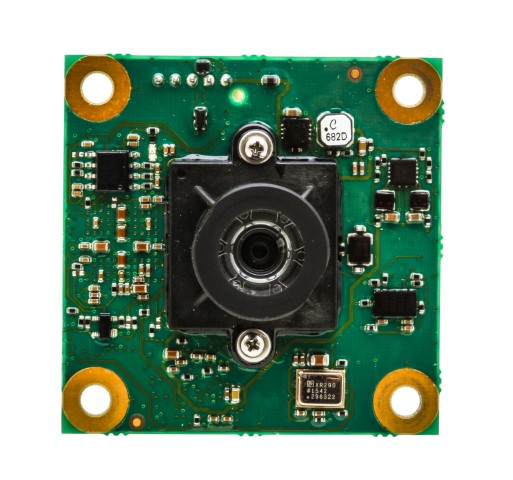

The ADIS1700x is a low-power vision-sensing camera module in a small form factor for interfacing to USB 2.0 HOST-compliant devices including single board computers. It includes a tri-axial accelerometer for image stabilization, tilt and impact detection. The ADIS1700x combines industry-leading logarithmic sensitive video imaging technology with digital signal processing and an accelerometer that optimizes video performance.

The ADSP-BF707 processor is a member of the Blackfin® family of products. The Blackfin+ processor combines a dual-MAC 16-bit state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture. New enhancements to the Blackfin+® core add 32-bit MAC and 16-bit complex MAC support, cache enhancements, branch prediction and other instruction set improvements—all while maintaining instruction set compatibility to previous Blackfin products.

The ADIS1700x Vision-Sensing Camera Module development kit is shipped with all of the necessary hardware - you can start the evaluation immediately. The package contains the standalone evaluation board, an interposer board to enable connection through a standard USB connector, USB cable, a 67 ° FOV and 110° HFOV lenses, a singleuser license of CrossCore Embedded Studio, and an ICE-1000 emulator for debugging.
