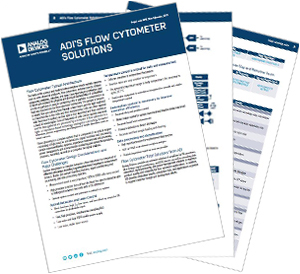

ADI’s Flow Cytometer Solutions

Flow Cytometer is a kind of medical and life sciences instrumentation using light or impedance-based technology employed in cell sorting, biomarker detection, protein engineering and diagnosis of the health disorders such as blood cancers. ADI provides a detail solution of this complex system especially the main signal chain to help and support customers for easy design and fast to market.

• Detail signal chain introduction and requirement of optical path, I/V conversion, signal conditioning and processing.
• High speed and high precision ADC
• low bias, high ZIN, low noise, and low offset op amps
• Fluidics/movement/pressure measurement
• Temperature monitoring and control
• Low noise, high quality power supply and management

Design Resources

Circuits from the Lab^®

•  A 16-Bit, 6 MSPS SAR ADC System with Low Power Input Drivers and Reference Optimized for Multiplexed Applications (CN-0307) — analog.com/en/circuits-from-the-lab/CN0307/vc
•  Extending the Capacitive Input Range of the AD7745/AD7746 Capacitance to Digital Converter (CN-0129) — analog.com/media/en/technical-documentation/application-notes/AN-1585.pdf
•  Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Synchronous Detectors (CN-0312) — analog.com/en/circuits-from-the-lab/CN0312/vc
•  High Accuracy Impedance Measurements Using 12-Bit Impedance (CN-0217) — analog.com/en/circuits-from-the-lab/CN0217/vc
•  Ultrahigh Sensitivity Femtoampere Measurement Platform (CN-0407) — analog.com/en/design-center/reference-designs/hardware-reference-design/circuits-from-the-lab/CN0407
•  Precision 24-Bit, 250 kSPS Single-Supply Σ-Δ ADC System for Industrial (CN-0310) — analog.com/static/imported-files/circuit_notes/CN0310.pdf
•  18-bit, 1.33 MSPS, 16-Channel Data Acquisition System (CN-0269) — analog.com/static/imported-files/circuit_notes/CN0269.pdf

Application Notes/Articles

•  ADA4530-1 Femtoampere Level Input Bias Current Measurement (AN-1373) — analog.com/media/en/technical-documentation/application-notes/AN-1373.pdf
•  High Speed Converters: An Overview of What, Why, and How (MS-2629) — analog.com/static/imported-files/tech_articles/High-Speed-Converters-MS-2629.pdf

Design Resources

ADC

•  VisualANALOG™ Software — analog.com/VisualANALOG
•  SPIController: ADC SPI Interface Software — analog.com/en/design-center/interactive-design-tools/spicontroller
•  Virtual Eval Tool—BETA Data Converter Tools — beta-tools.analog.com/virtualeval

DSP

•  Software Development Kit (SDK) — analog.com/en/processors-DSP/software-and-reference-designs/ content/software_development_kit_downloads/fca

Amplifier

•  Analog Photodiode Wizard: Photodiode Circuit Design Wizard — analog.com/photodiode
•  Analog Filter Wizard: Filter Circuit Design Wizard — analog.com/filterwizard
•  DiffAmpCalc™: Differential Amplifier Calculator — analog.com/diffampcalc

Circuit and Power Design Simulation

•  LTspice®: Circuit Design Simulation Tool — analog.com/ltspice
•  LTpowerCAD and LTpowerPlanner — analog.com/en/design-center/ltpowercad
•  ADIsimPower™: Voltage Regulator Design Tool — analog.com/adisimpower
