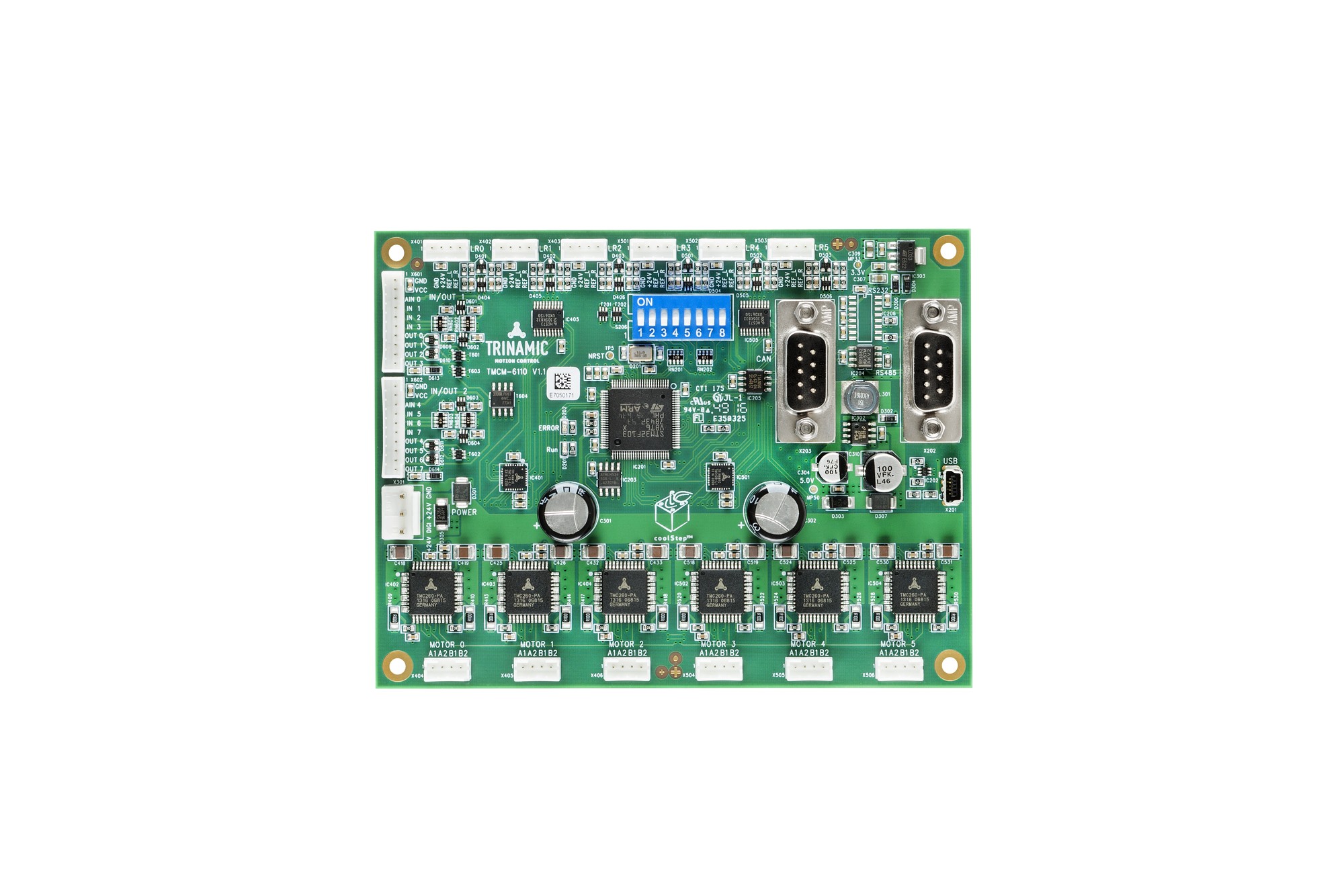

TMCM-6110

推荐新设计使用

6 Axes Stepper Controller / Driver 1.1A RMS / 24V DC USB, CAN, RS485 [or RS232]

产品选型表
产品模型
1
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

Motion controller

  • Motion profile calculation in real-time
  • On the fly alteration of motor parameters (e.g., position, velocity, acceleration)
  • High performance microcontroller for overall system control and serial communication protocol handling

Bipolar stepper motor driver

  • Up to 256 microsteps per full step
  • High-efficient operation, low power dissipation
  • Dynamic current control
  • Integrated protection
  • stallGuard2™ feature for stall detection
  • coolStep™ feature for reduced power consumption and heat dissipation

Interfaces

  • Up to 8 multi-purpose inputs (+24V compatible, incl. 2 dedicated analog inputs)
  • Up to 8 multi-purpose outputs (open-drain, incl. 2 outputs for currents up to 1A)
  • RS485 2-wire communication interface
  • USB 2.0 full speed (12Mbit/s) communication interface (mini-USB connector)
  • CAN 2.0B communication interface (9pin D-SUB)

Features

  • Uses TMC429 stepper motor controller for on-the-fly alteration of many motion specific parameters
  • Uses TMC260 advanced stepper motor driver IC
  • Up to 256 microsteps per fullstep
  • Integrated protection: overtemperature/undervoltage

Software

  • TMCL remote (direct mode) and standalone operation (memory for up to 2048 TMCL commands)
  • Fully supported by TMCL-IDE (PC based integrated development environment)

Electrical data

  • Supply voltage: +9V to +28V DC
  • Motor current: up to 1.1A RMS (programmable) per axis

Mechanical data

  • Board size: 130mm x 100mm, height 30mm max.
  • 4 mounting holes for M3 screws
TMCM-6110

6 Axes Stepper Controller / Driver 1.1A RMS / 24V DC USB, CAN, RS485 [or RS232]
