TMCM-1111
量产Stepper motor controller/driver module 10 to 30V, 2.8A, 256 µSteps, S-Shaped and SixPoint ramp controller, with USB, S/D and RS485 Interface, StallGuard, CoolStep
- 产品模型
- 1
产品详情
- Single axis controller/driver for 2-phase bipolar stepper motor
- S-shaped ramps + linear ramps
- Closed-loop operation with external encoder
- +10 to 30V DC supply voltage
- Up to 2.8A RMS motor current
- RS485 & USB interface
- multi-purpose inputs and outputs

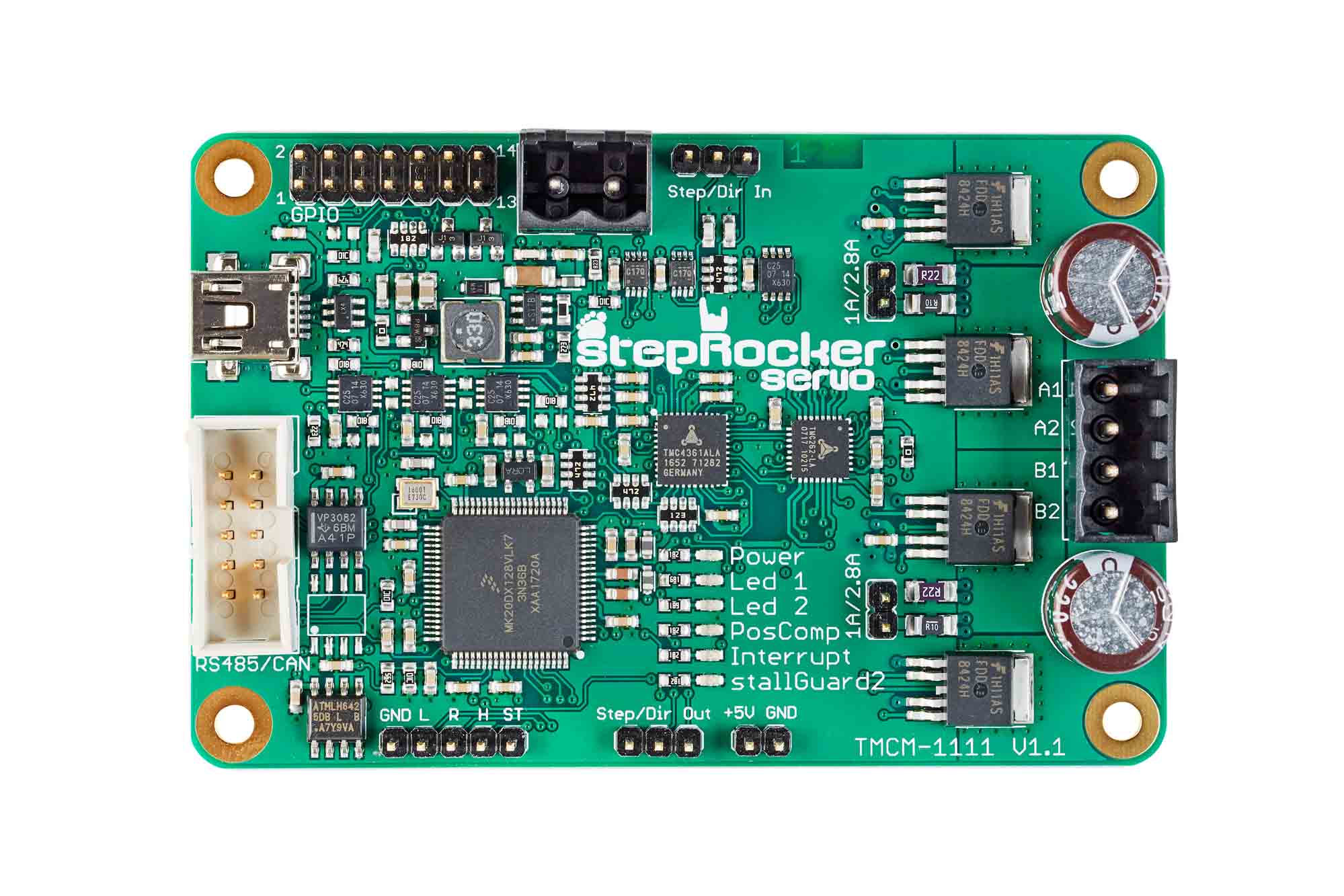

The TMCM-1111 is a single axis stepper motor controller/driver module for closed loop stepper motor servos. The device is powered by ADI Trinamic StallGuard2™, CoolStep™ and SpreadCycle™ chopper technology and has a S-shaped ramp generator. The TMCM-1111 is capable of driving up to 2.8A of current from each output. It is designed for an operating voltage of 10 to 30V. The device provides a RS485, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL communication.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS- Applications
- Laboratory Automation
- Manufacturing
- Robotics
- Factory Automation
- Test & Measurement
- Technology evaluation
- First experiences with stepper motors
- Hobby applications
