QSH6018
推荐新设计使用NEMA 24 stepper motor 1.1Nm, 2.8A
- 产品模型
- 7
产品详情
- NEMA 23 mounting configuration
- Flange max. 60.5mm * 60.5mm
- 7.5mm Axis diameter, 22.4mm axis length with 20mm D-cut of 0.5mm depth
- Step angle: 1.8˚
- Optimized for microstep operation
- Optimum fit for TMC239, TMC249 and TMC262 based driver circuits
- Up to 75V operating voltage
- CE approved
- Variants with encoder: 10000 lines/ 40000 counts

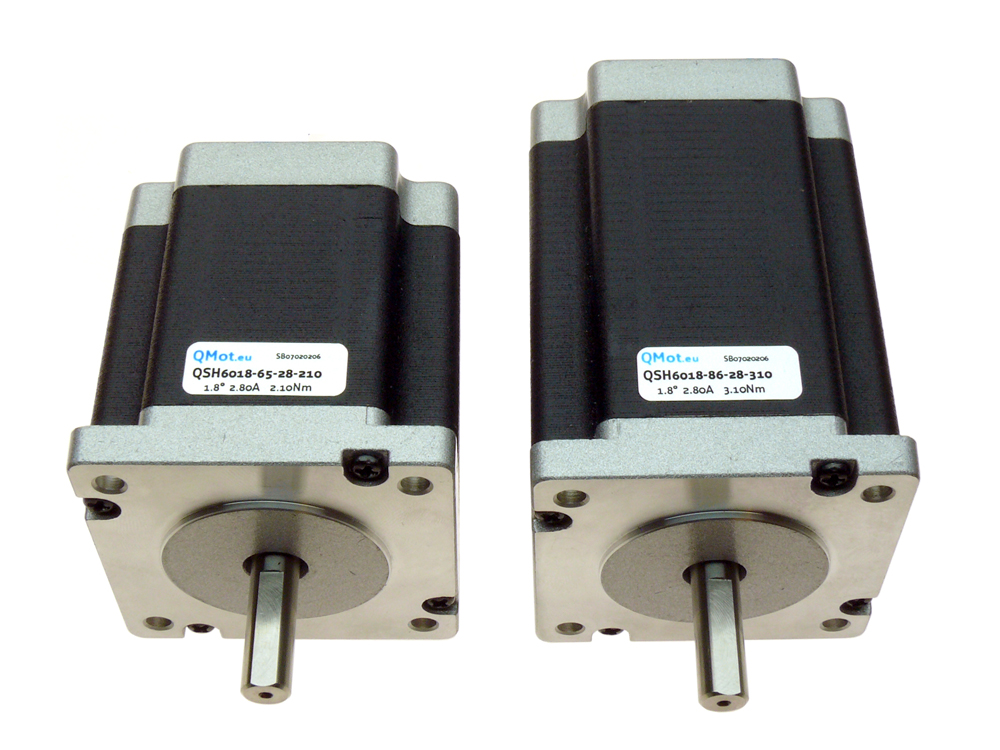

NEMA24 (60mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.
Variants include a small size optical incremental encoder kit. It comes with a resolution of 10000 lines (40000 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
Technical Details
| QSH6018-45-28-110 | QSH6018-56-28-165 | QSH6018-65-28-210 | QSH6018-86-28-310 | |
| Status | Active | Active | Active | Active |
| Flange NEMA | 24 | 24 | 24 | 24 |
| Flange | 60mm | 60mm | 60mm | 60mm |
| Holding Torque | 110Ncm | 165Ncm | 210Ncm | 310Ncm |
| Phase Current | 2.80A | 2.80A | 2.80A | 2.80A |
| Full Steps | 200 | 200 | 200 | 200 |
| Width | 60mm | 60mm | 60mm | 60mm |
| Height | 60mm | 60mm | 60mm | 60mm |
| Length | 45mm | 56mm | 65mm | 86mm |
| Weight | 600g | 770g | 1200g | 1400g |
