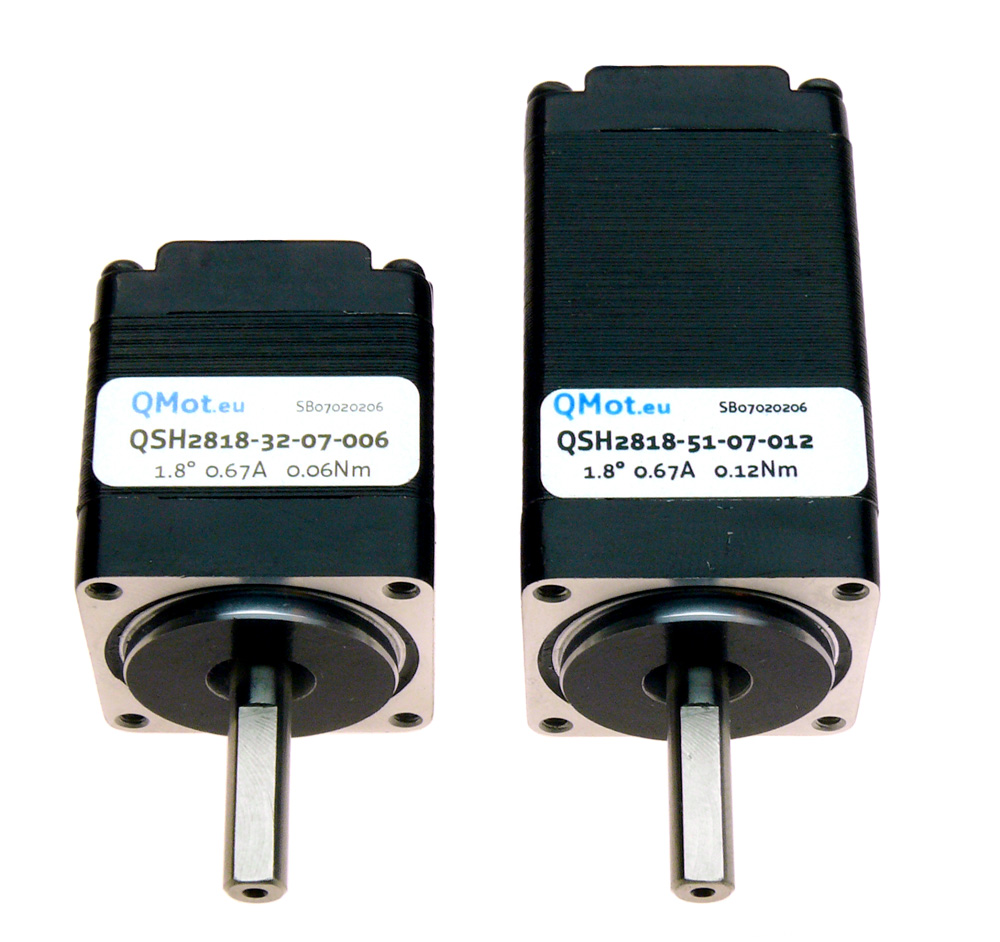

QSH2818
推荐新设计使用NEMA 11 stepper motor 6Ncm, 0.6A
- 产品模型
- 4
产品详情
- NEMA 11 mounting configuration
- Flange max. 28.0mm * 28.0mm
- 5mm Axis diameter, 20mm axis length
- Step angle: 1.8˚
- Optimized for microstep operation
- Optimum fit for TMC222 / TMC236 / TMC246 / TMC262 based driver circuits
- 4 Wire connection
- CE approved
- Variants with encoder: 10000 lines/ 40000 counts
NEMA11 (28mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.
Variants include small size optical incremental encoder kit. It comes with a resolution of 8192 lines (32768 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
Technical Details
| QSH2818-32-07-006 | QSH2818-51-07-012 | |
| Status | Active | Active |
| Flange NEMA | 11 | 11 |
| Flange | 28mm | 28mm |
| Holding Torque | 6Ncm | 12Ncm |
| Phase Current | 0.68A | 0.68A |
| Full Steps | 200 | 200 |
| Width | 28mm | 28mm |
| Height | 28mm | 28mm |
| Length | 32mm | 51mm |
| Weight | 110g | 200g |
参考资料
封装外形图 5
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| QSH2818-32-07-006 | N/A | ||
| QSH2818-32-07-006-8K | N/A | ||
| QSH2818-51-07-012 | N/A | ||
| QSH2818-51-07-012-8K | N/A |
这是最新版本的数据手册
硬件生态系统
| 部分模型 | 产品周期 | 描述 |
|---|---|---|
| 单轴步进电机模块 1 | ||
| TMCM-1021 | 推荐新设计使用 | Stepper motor controller/driver module 9 to 28V, 1.4A, 256 µSteps, with S/D and RS485 Interface, StallGuard, CoolStep and StealthChop |
