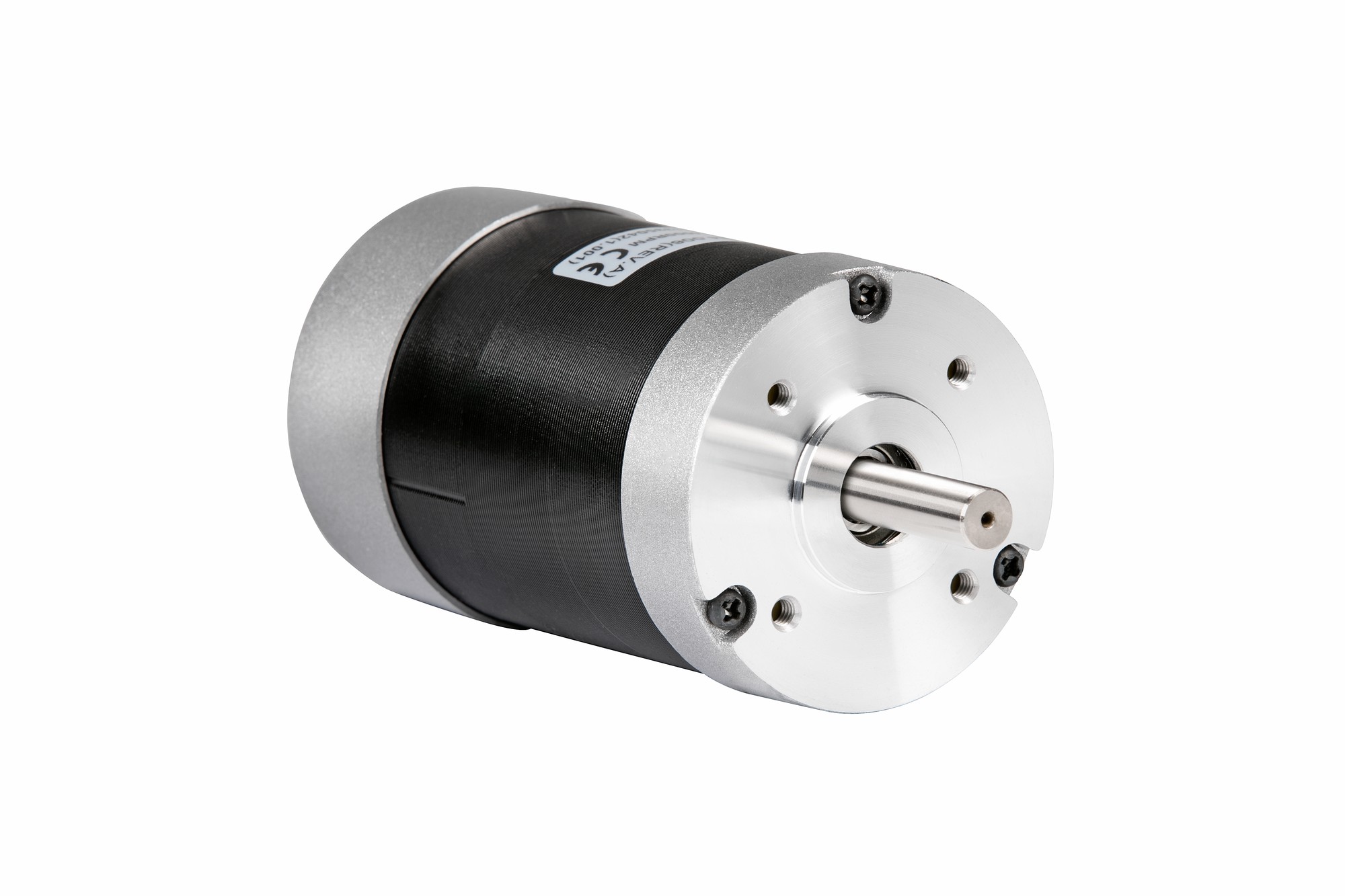

QBL5704
推荐新设计使用NEMA 23 BLDC motor 32Ncm, 4 poles, 4000RPM
- 产品模型
- 2
Viewing:
产品详情
- Hall Effect Angle: 120° electric angle
- Shaft run out: 0,025 mm
- Insulation Class: B
- Radial Play: 0,02 mm 450G load
- Max Radial Force: 75N (10mm from flange)
- Max Axial Force: 15N
- Dielectric Strength: 500 VDC For One Minute
- Insulation Resistance: 100M Ohm min. 500VDC
- Recommended Ambient Temp.: -20 to +40°C
- Bearing: Brushless motors fitted with ball bearings
Qmot 42mm 3-phase BDLC motors are quality motors with digital hall output for universal use. They feature a long life due to ball bearings and no wearing out parts. These BLDC motors give a good fit to the ADI Trinamic family of medium and high current BLDC motor modules.
Technical Details
| QBL5704-94-04-032 | QBL5704-116-04-042 | |
| Status | Active | Active |
| Flange | 57mm | 57mm |
| Torque | 32Ncm | 42Ncm |
| Phase Current | 5.08A | 6.68A |
| Pole Count | 4 | 4 |
| Rated Speed | 4000rpm | 4000rpm |
| Width | 57mm | 57mm |
| Height | 57mm | 57mm |
| Length | 94mm | 116mm |
| Weight | 1000g | 1250g |
参考资料
封装外形图 2
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| QBL5704-116-04-042 | N/A | ||
| QBL5704-94-04-032 | N/A |
这是最新版本的数据手册
