MAX40203

量产

超小尺寸、Nanopower、1A理想二极管,具有超低压降

电流开关/理想二极管节省空间,压降比肖特基二极管小10倍

产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

    较低压降,适合便携式应用
    • 14mV正向压降 @ 1mA (SOT封装)
    • 28mV正向压降 @ 100mA (SOT封装)
    • 100mV正向压降 @ 500mA (SOT封装)
    • 230mV正向压降 @ 1A (SOT封装)
  • 延长电池寿命
    • 利用VDD反偏时的漏流较小:
    • 10nA (典型值)
    • 低静态电流
    • 300nA (典型值)、500nA (最大值)
  • 占位面积小于肖特基二极管
    • 微小尺寸、0.77mm x 0.77mm、4焊球WLP封装
    • SOT23-5封装
  • 较宽电源电压范围:1.2V至5.5V
  • 自身热保护
  • -40°C至+125°C工作温度范围
MAX40203
超小尺寸、Nanopower、1A理想二极管,具有超低压降
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

硬件生态系统

部分模型 产品周期 描述
PowerPath、理想二极管和负载开关 1
MAX40200 量产 超小尺寸、微功耗、1A理想二极管,具有超低压降
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型


评估套件

eval board
AD-PQMON-SL

Power Quality Monitor Development Platform

特性和优点

  • Allows prototyping of high performance, polyphase energy meters
  • Modular hardware design:
    • Metering & compute base board
    • Add-on board for COMMS and HMI
  • The base board offers flexibility in input/output (I/O) interfacing through custom add-on boards
  • Industrial connectivity: 10BASE-T1L (ADIN1110), RS-485 (ADM2587E), Ethernet (WIZ82)
  • Long time data logging (SD card)
  • Standalone interface (display, LEDs, buttons)
  • I/O prototyping area (external control signals, GPS / GNSS)
  • Publicly available software for evaluation and prototyping
  • Embedded processing implementing the complete IEC 61000-4-30 class S power quality standard (using ADI proprietary ADSW-PQ-CLS library)
  • Open-source GUI (Scopy – Cross-platform Qt application)
  • Fully isolated design for safe operation
  • Industry standard form factor compatible with DIN rail mounts

产品详情

The AD-PQMON-SL provides a complete software and hardware platform for prototyping and evaluating high performance class S polyphase energy quality monitors. The design incorporates the ADE9430 high performance, polyphase energy monitoring IC that has an advanced metrology feature set (total and fundamental active power, volt amperes reactive (VAR), volt amperes (VA), watthour, VAR hour, VA hour, total and fundamental IRMS and VRMS, power factor) and the MAX32650 ultralow power ARM cortex-M4 with FPU-based microcontroller with 3 MB flash and 1 MB SRAM. The ADE9430 enables accurate energy monitoring over a wide dynamic range through its superior analog performance and digital signal processing (DSP) core. The ADE9430 simplifies the implementation and certification of energy and power quality monitoring systems by providing tight integration of acquisition and calculation engines. This solution can be used on a 3-phase system or up to three single-phase systems.

The design also features the MAX32650, which is a part of a new breed of low-power microcontrollers built to thrive in the rapidly evolving Internet of Things (IoT) named DARWIN. These MCUs are smart, with the biggest memories in their class and a massively scalable memory architecture. The MCU exposes all the necessary debug and programming features to enable a complete software development experience with the system. It is coupled with 512 Mb RAM and 64 Mb flash external memories to provide flexibility. The system's firmware is based on ADI's open-source no-OS framework and ADI proprietary ADSW-PQ-CLS library.

The solution has an on-board ADuM6424A Quad-Channel Isolator with Integrated DC-to-DC Converter. This DC-DC converter is used to supply all the components on the high voltage side. The ADUM6424A and the ADUM4152, which is a 5 kV, 7-Channel, SPIsolator™ Digital Isolator for SPI (with 1/2 Aux channel directionality), are used to isolate the connection between the ADE9430 and MAX32650.

The board can be supplied from the AC input through an isolated AC/DC converter or from the USB through the LTC3306, a 1.75 A Synchronous Step-Down Regulator. A logic based on several MAX40203, an Ultra-Tiny nanoPower, 1 A Ideal Diodes with Ultra-Low-Voltage Drop, selects based on availability the supply input with priority to the AC input.

The other 1.1 V and 1.8 V voltage rails needed by the MCU are converted from the 3.3 V input by the ADP225, a Dual, 300 mA Adjustable Output, Quick Output Discharge, Low Noise, High PSRR Voltage Regulator.

For high accuracy time keeping, the MAX31343 ±5 ppm, I2C Real-Time Clock with Integrated MEMS Oscillator is used.

The add-on board includes a standalone interface (a 64 x 4 display, 2 LEDs, and 5 buttons), an SD card for long time data logging, several industrial connectivity ports, and exposes an I/O prototyping area for I2C, SPI, GPIO, UART, 3V3, GND. The prototyping area can be also used for GPS / GNSS (e.g., Accurate Synchrophasor Measurement) or for external control signals.

For industrial connectivity, these are the following possibilities:

  • T1L through the ADIN1110, an ultralow power, single port, 10BASE-T1L transceiver design for industrial Ethernet applications
  • RS-485 implemented using the ADM2587E, a 2.5 kV Signal and Power Isolated, ±15 kV ESD Protected, Full/Half Duplex RS-485 Transceiver (500 kbps)
  • Ethernet

APPLICATIONS

  • Energy and power monitoring
  • Standards compliant power quality monitoring
  • Protective devices
  • Smart power distribution units
  • Polyphase energy meters
  • Intelligent buildings

MAX40203-W-EVKIT

MAX40203评估套件

特性和优点

  • 500mA时压降仅为43mV
  • 当从VDD反向偏置时,漏电流小于10nA
  • 电源电压范围:1.2V至5.5V
  • 低电源静态电流:300nA(典型值)、500nA(最大值)
  • 自身提供热保护
  • 温度范围:-40°C至+125°C
  • 评估MAX40203ANS+
  • 可容纳易于使用的元件
  • 经过验证的PCB布局
  • 装配完成且经过测试

产品详情

MAX40203 WLP评估套件设计可靠,用于评估MAX40203“理想二极管”。该评估套件演示了采用小型4引脚WLP封装的MAX40203 (MAX40203ANS+)。

MAX40203 WLP评估套件PCB已安装两个MAX40203ANS+器件。MAX40203器件是一款电流开关,其压降非常小,接近于“理想二极管”。



应用

  • 电池备用系统
  • 蜂窝电话
  • 电子玩具
  • 笔记本电脑和平板电脑
  • 便携式医疗设备
  • 电力线故障记录仪
  • USB供电型外设

eval board
MAX40203EVKIT

MAX40203 评估套件

特性和优点

  • 压降仅为100mV @ 500mA
  • 利用VDD反偏时的漏流小于10nA
  • 电源电压范围:1.2V至5.5V
  • 低静态电流:300nA (典型值)、500nA (最大值)
  • 自身热保护
  • -40 °C至+125 °C温度范围
  • 评估MAX40203AUK+
  • 便于元件安装
  • 经过验证的PCB布局
  • 完全装配并经过测试

产品详情

MAX40203评估套件(EV kit)提供经过验证的设计,用于评估MAX40203“理想二极管”。评估套件演示采用节省空间的5引脚SOT23封装的MAX40203 (MAX40203AUK+)。评估套件也可用于评估MAX40203AUK+。

MAX40203评估套件PCB已安装两片MAX40203AUK+器件。MAX40203器件为电流开关,压降非常低,接近于“理想二极管”。

MAX40203也可采用微小尺寸、0.8mm x 0.8mm、4焊球WLP封装,0.35mm焊距,具有较低压降。这些器件工作在-40°C至+125°C汽车级温度范围。

应用

  • 蜂窝电话
  • 电子玩具
  • 笔记本电脑和平板电脑
  • 便携式媒体播放器
  • 便携式/可穿戴医疗设备
  • USB供电外设

AD-PQMON-SL
Power Quality Monitor Development Platform
AD-PQMON-SL Board Photo Angle View AD-PQMON-SL Board Photo Top View AD-PQMON-SL Board Photo Bottom View AD-PQMON-SL Block Diagram
MAX40203-W-EVKIT
MAX40203评估套件
MAX40203EVKIT
MAX40203 评估套件

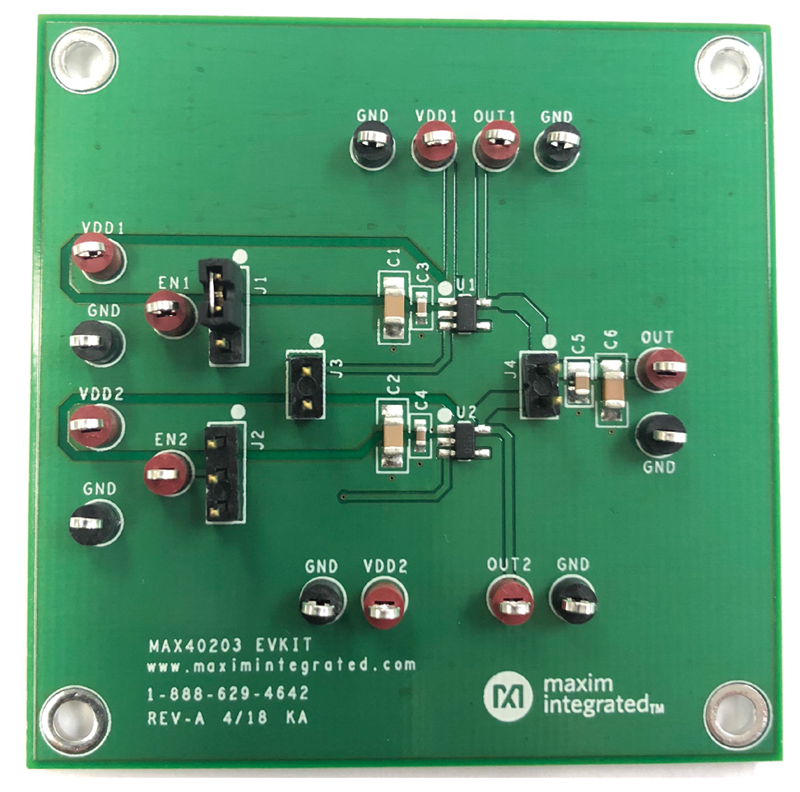

MAX40203EVKIT: Board Photo
