MAX34460A
量产PMBus 12-Channel Voltage Monitor and Sequencer
- 产品模型
- 2
产品详情
- 12 Channels of Power-Supply Management
- On-Board Nonvolatile Black Box Fault Logging and Default Configuration Setting
- Supports Complex Sequencing Requirements
- Dual Sequencing Groups
- Time- and Event-Based Sequencing
- Parallel/Cascaded Device Operation
- Programmable Up and Down Sequencing
- Watchdog Timer Function
- Easy to Program and Monitor
- PMBus™-Compatible Command Interface
- Easy-to-Use GUI
- Programmable Alarm Outputs
- Flexible Measurement and Monitoring Capability
- Reports Peak and Average Levels
- Four Remote Temperature Sensors
- One Internal Temperature Sensor
- Automatic Closed-Loop Margining Improves Accuracy
- Remote Ground Sensing Improves Measurement Accuracy
- Simplifies System-Level Design
- Up to 20 GPOs
- No External Clocking Required
- I2C/SMBus-Compatible Serial Bus with Bus Timeout Function
- Fast Minimum/Maximum Threshold-Excursion Detection
- 3.0V to 3.6V Supply Voltage

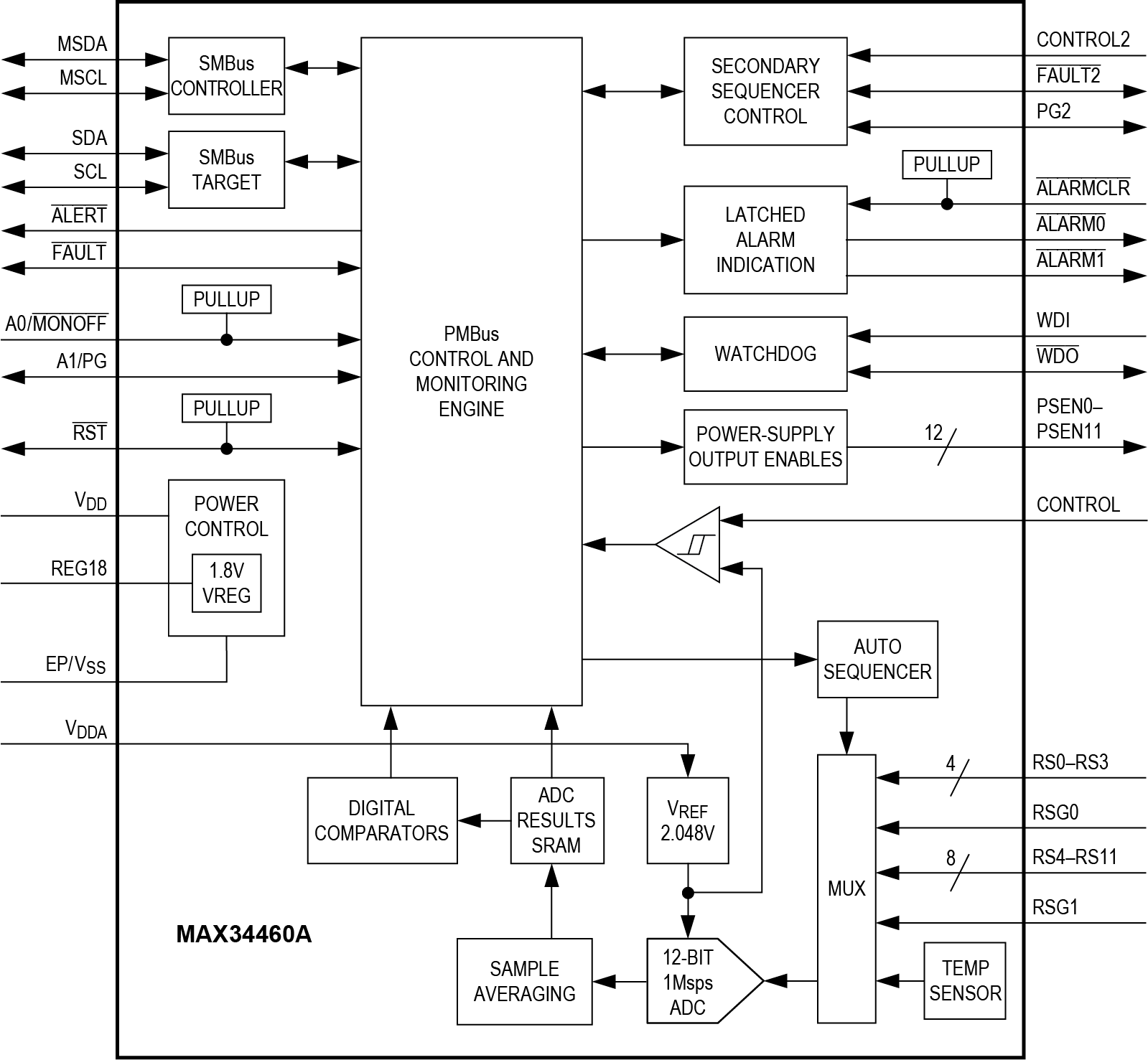

The MAX34460A is a system monitor that is capable of managing up to 12 power supplies. The power-supply manager monitors the power-supply output voltages and constantly checks for user-programmable overvoltage and undervoltage thresholds. If a fault is detected, the device automatically shuts down the system in an orderly fashion. The device can sequence the supplies in any order at both power-up and power-down. With the addition of external current DACs, the device has the ability to close-loop margin the power-supply output voltages up or down to a user-programmable level. The device contains an internal temperature sensor and can support up to four external remote temperature sensors. Once configured, the device can operate autonomously without any host intervention.
APPLICATIONS
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

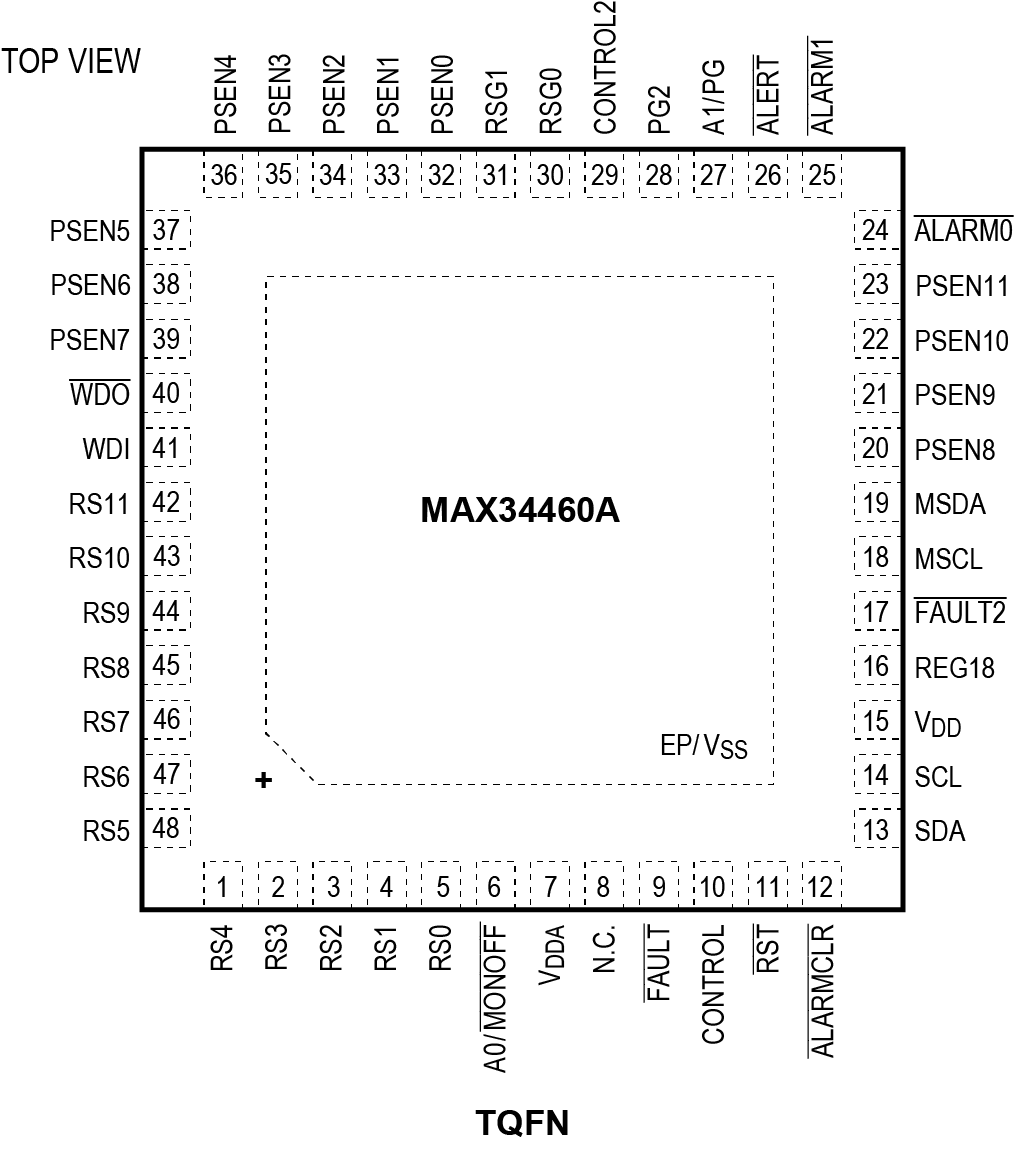

| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX34460AA00+ | 48-LFCSP-6X6X0.75 | ||
| MAX34460AA00+T | 48-LFCSP-6X6X0.75 |
这是最新版本的数据手册
