MAX30210

• Temperature Sensor
  • High Accuracy and Precision
    • ±0.1°C accuracy from +20°C to +50°C
    • ±0.15°C accuracy from -20°C to +85°C
  • Safety and Compliance
    • High and low temperature alarms
• Accelerometer
  • Built-in motion detection features make tap, double-tap, activity, inactivity, and free-fall detection trivial
  • Multipurpose accelerometer with 10- to 13-bit resolution for use in a wide variety of applications
• Inclinometer
  • Digital self-test function
  • Configurable alarm function
  • ±180 output format option

The EV-STRUCTURAL-ARDZ is a vibration sensor that uses the ADXL343 digital output MEMS accelerometer chip and the ADIS16203 programmable 360° inclinometer. Aside from providing vibration data, this sensor node also features the MAX30210 digital temperature sensor which gives the option to shut down sensitive machines and equipment for smart motor sensing applications.

The on-board inclinometer can be used to detect if the horizontal position of the sensor changes, which points towards a collapse of the structure where the sensor was deployed.

APPLICATIONS

• Structural health sensor
• Tilt sensing, inclinometers
• Platform control, stabilization, and leveling
• Motion/position measurement
• Monitor/alarm devices (security, medical, safety)

• Monitors the health and vitality of livestock in real-time, enabling farmers to quickly treat animals and prevent the spread of illness or disease.
• Tracks grazing animals to prevent loss and to identify grazing patterns.
• Gathers and analyzes historical data to identify trends in cattle health or to track the spread of illness.
• Monitors readiness to mate or give birth, preventing the loss of new calves and optimizing breeding practices.

The EV-CATTLETAG-ARDZ is an Arduino board with a fully integrated solution for harvesting energy from single-/multi-cell solar sources. The device includes battery chargers for small lithium-ion systems, and a digital temperature sensor for applications such as Wearables and IoT. The board has an on-board MAX20335 BMS device, a MAX30210 temperature sensor, and a buzzer with a vibration motor option.

APPLICATIONS

• Asset location
• Asset recovery
• Asset traceability
• Inventory management

• 灵活的 PCB 设计

  • 热质量低，响应时间快
  • 远离额外电路检测温度
• 容易到达测试点
• 完全组装和测试
• 与 Windows^® 7, 8, and 10 兼容的软件

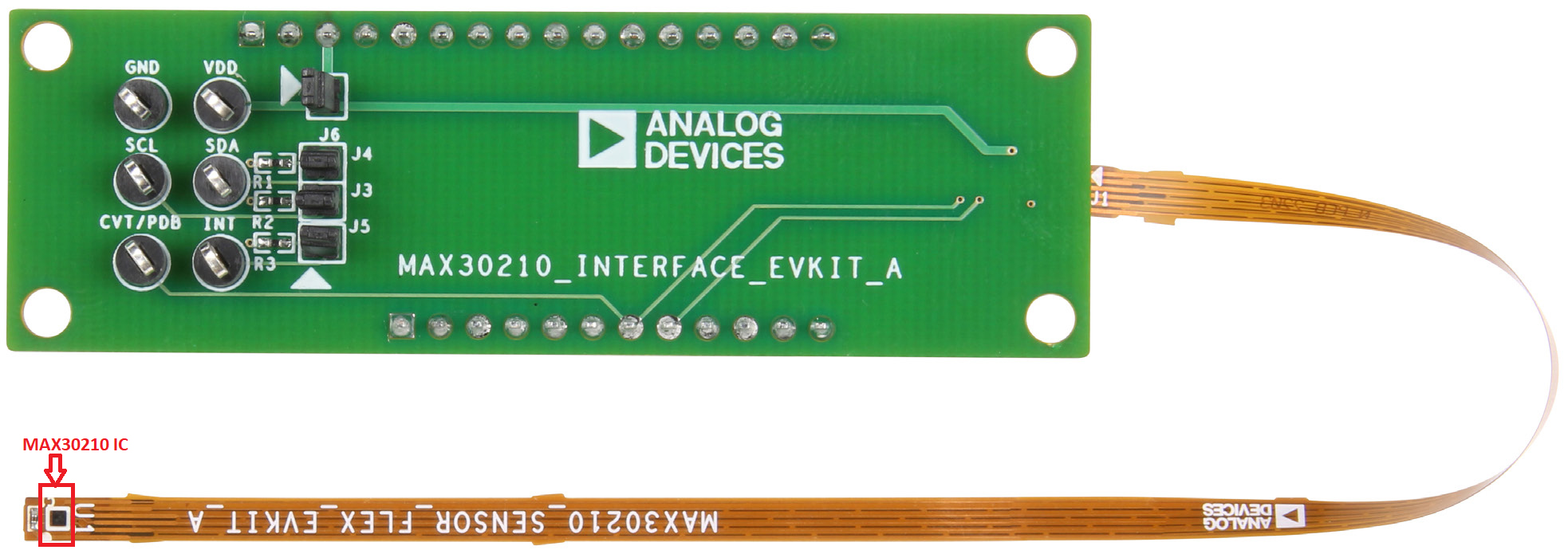

MAX30210 评估套件 (EV kit) 提供单一平台来评估 MAX30210，这是一款 ±0.1°C 精确温度传感器。评估板包括两块通过排针连接的电路板、一块 MAX32630FTHR 微控制器板和一块 MAX30210 接口板。评估套件还包含一块柔性 PCB，用于固定 MAX30210 IC。MAX32630FTHR 包含使用 PC GUI 程序所需的固件，并为 MAX30210 接口板供电。MAX30210 接口板出厂时预装了跳线，可以快速评估 MAX30210。
