LTC4236

推荐新设计使用

具电流监视器的双通道理想二极管 “或” 和单通道热插拔控制器

数据手册产品选型表

产品模型: 8

Viewing:

产品详情

用于冗余电源的理想二极管“或”和浪涌电流控制
功率肖特基二极管的低损耗型替代方案
可在带电背板上实现安全的电路板插拔操作
2.9V 至 18V 工作范围
电流监视器输出
控制 N 沟道 MOSFET
可在 ≤ 1μs 的时间里限制峰值故障电流
具折返的可调电流限制功能
可调启动和电流限制故障延迟
0.5μs 理想二极管接通和关断时间
无振荡的平滑切换
故障、电源良好和二极管状态输出
LTC4236-1：在发生故障之后执行锁断操作
LTC4236-2：在发生故障之后执行自动重试操作
28 引脚 4mm x 5mm QFN 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC4236CUFD-1#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236CUFD-1#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236CUFD-2#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236CUFD-2#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236IUFD-1#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236IUFD-1#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236IUFD-2#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4236IUFD-2#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

1月 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
		PCN21_0269_Form Material_Report Detailed Change Description Qualification Results Summary
LTC4236CUFD-1#PBF	量产
LTC4236CUFD-1#TRPBF	量产
LTC4236CUFD-2#PBF	量产
LTC4236CUFD-2#TRPBF	量产
LTC4236IUFD-1#PBF	量产
LTC4236IUFD-1#TRPBF	量产
LTC4236IUFD-2#PBF	量产
LTC4236IUFD-2#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
LTC4228	推荐新设计使用	双通道理想二极管和热插拔控制器
LTC4235	推荐新设计使用	具电流监视器的双通道 12V 理想二极管 “或” 和单通道热插拔控制器

工具及仿真模型

LTspice 1

LTC4236 - Power Monitor, Control, and Protection

LTspice中提供以下器件型号：

LTC4236-1
LTC4236-2

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

LTC4236-2 Demo Board | Dual Ideal Diode-OR & Single Hot Swap Controller with Current Monitor, Auto-Retry Version

立即购买更多内容

产品详情

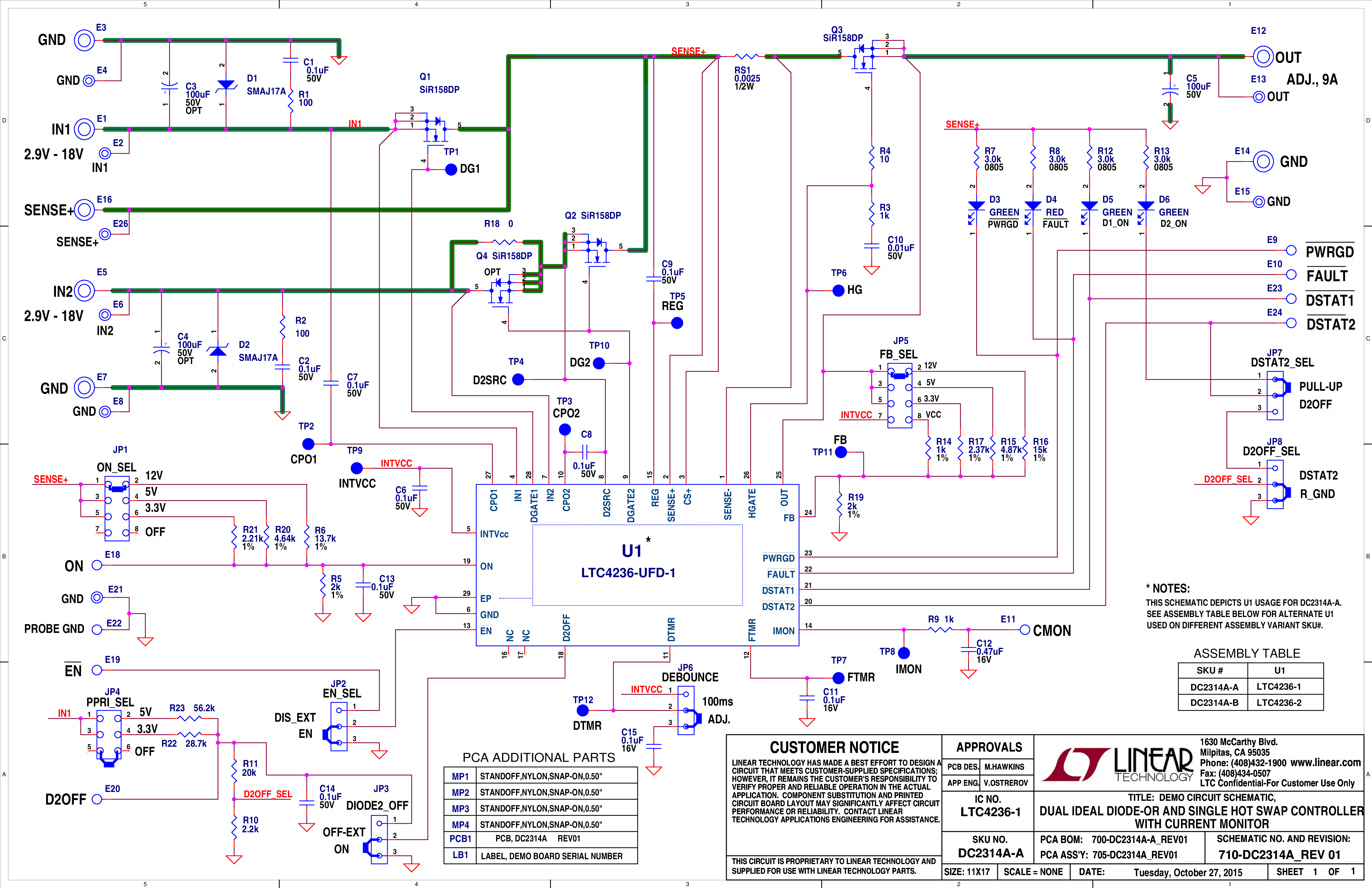

Demonstration circuit 2314A is intended to demonstrate the performance of the LTC4236-1/LTC4236-2 Dual Ideal Diode-OR and Single Hot Swap Controller with Current Monitor. The controller operates in redundant supply circuits, where each rail has an individual ideal diode, and the outputs are connected to the load through a single Hot Swap circuit. The controller enables monitoring of the load current by providing a signal that is 100× the sense resistor voltage.
