LT3048

量产

采用 2mm x 2mm DFN 封装的低噪声偏置发生器

数据手册 (Rev. B) 产品选型表

产品模型: 20

Viewing:

产品详情

可采用单节锂离子电池产生低噪声偏置电压
输出电流：高达 40mA
低输出纹波和噪声：<500μV_P-P
升压型稳压器
- 1MHz 运作 (LT3048)
- 2.2MHz 运作 (LT3048-XX)
- 集成型肖特基二极管
低压差线性稳压器
- 1.235V 反馈电压 (LT3048)
- 低噪声：<120μV_RMS (10Hz 至 100kHz)
- 0.1% 负载调整率
固定的 3.3V、5V、12V、15V 和可调输出选项
短路和热保护
停机模式中的负载断接

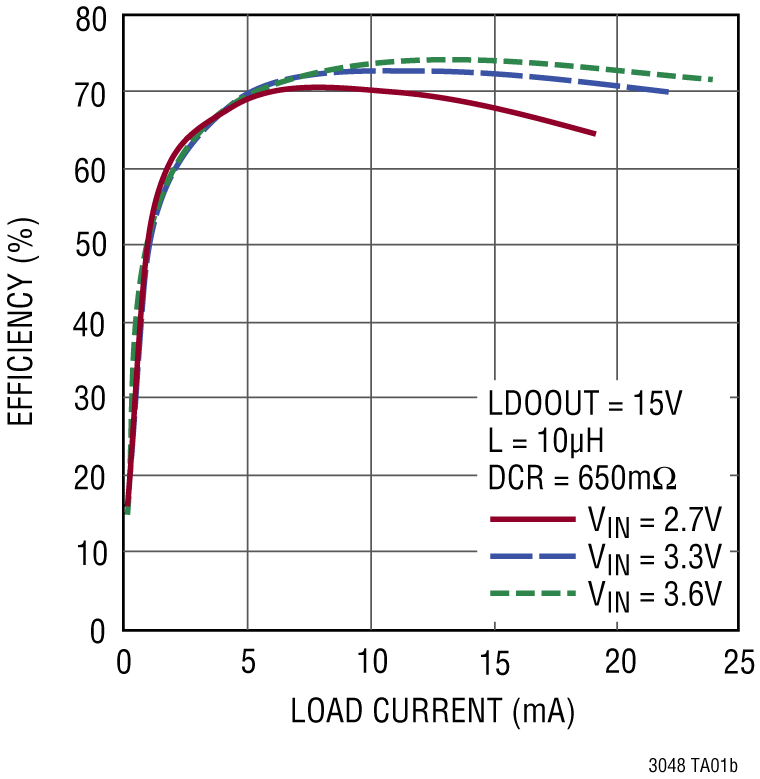

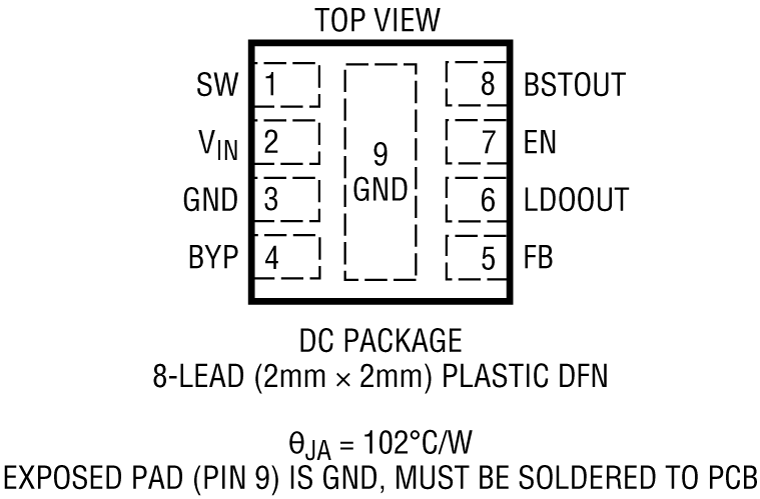

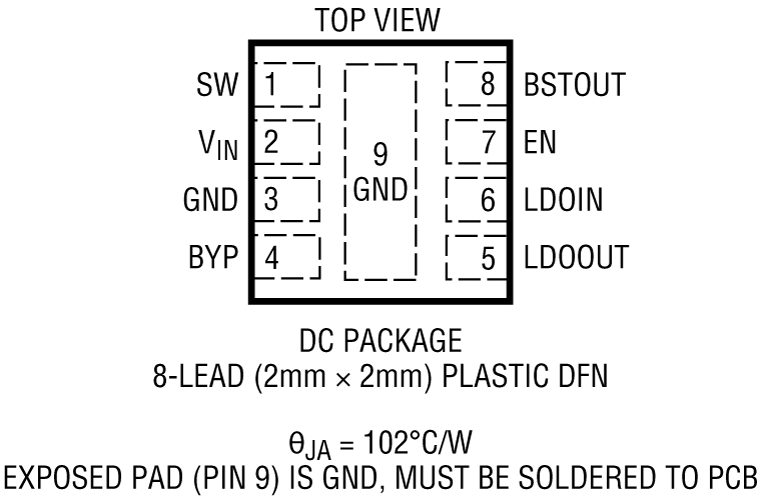

采用 2mm x 2mm DFN 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LT3048EDC#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-12#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-12#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-15#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-15#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-3.3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-3.3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048EDC-5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-12#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-12#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-15#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-15#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-3.3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-3.3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-5#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3048IDC-5#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
LT3095	量产	双通道低噪声偏置发生器

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

LT3048
LT3048-12
LT3048-15
LT3048-3.3
LT3048-5

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

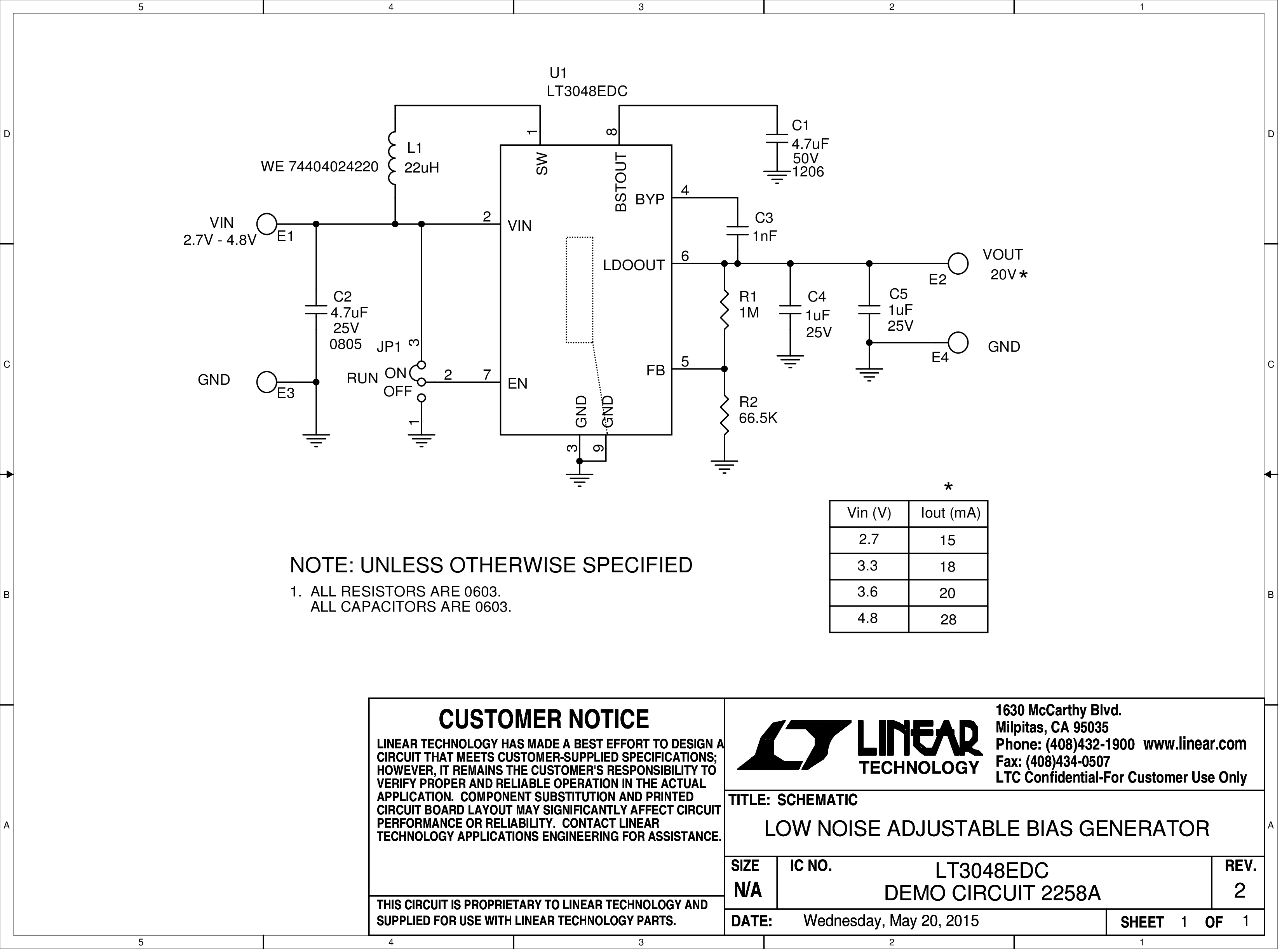

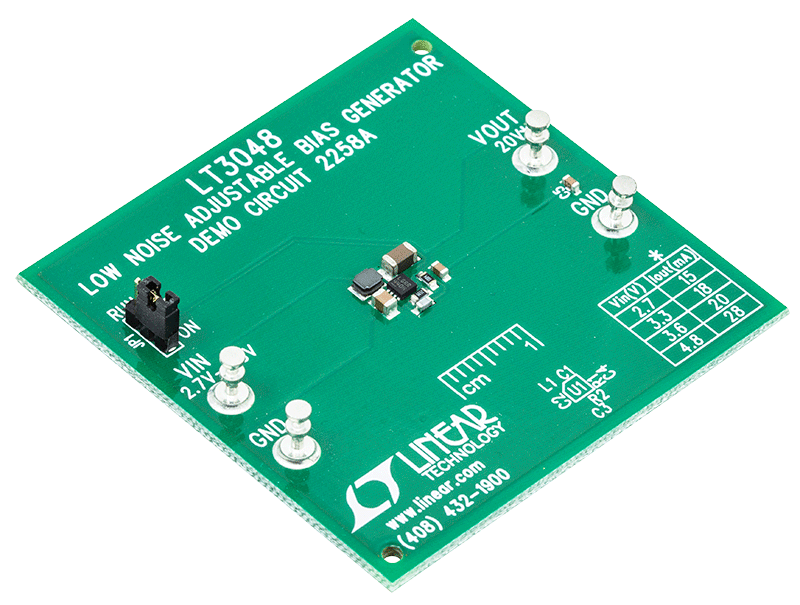

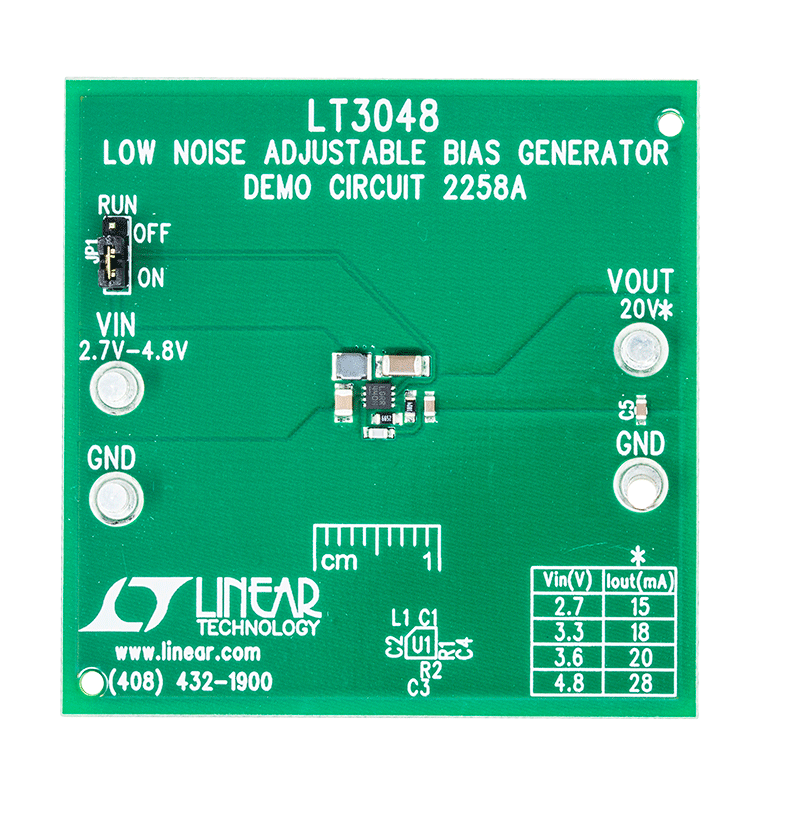

评估套件

LT3048-15 Demo Board | Boost with Integrated Schottky and Post-Regulator LDO, 2.7V ≤ VIN ≤ 4.8V, 15VOUT @ up to 35mA

立即购买更多内容

产品详情

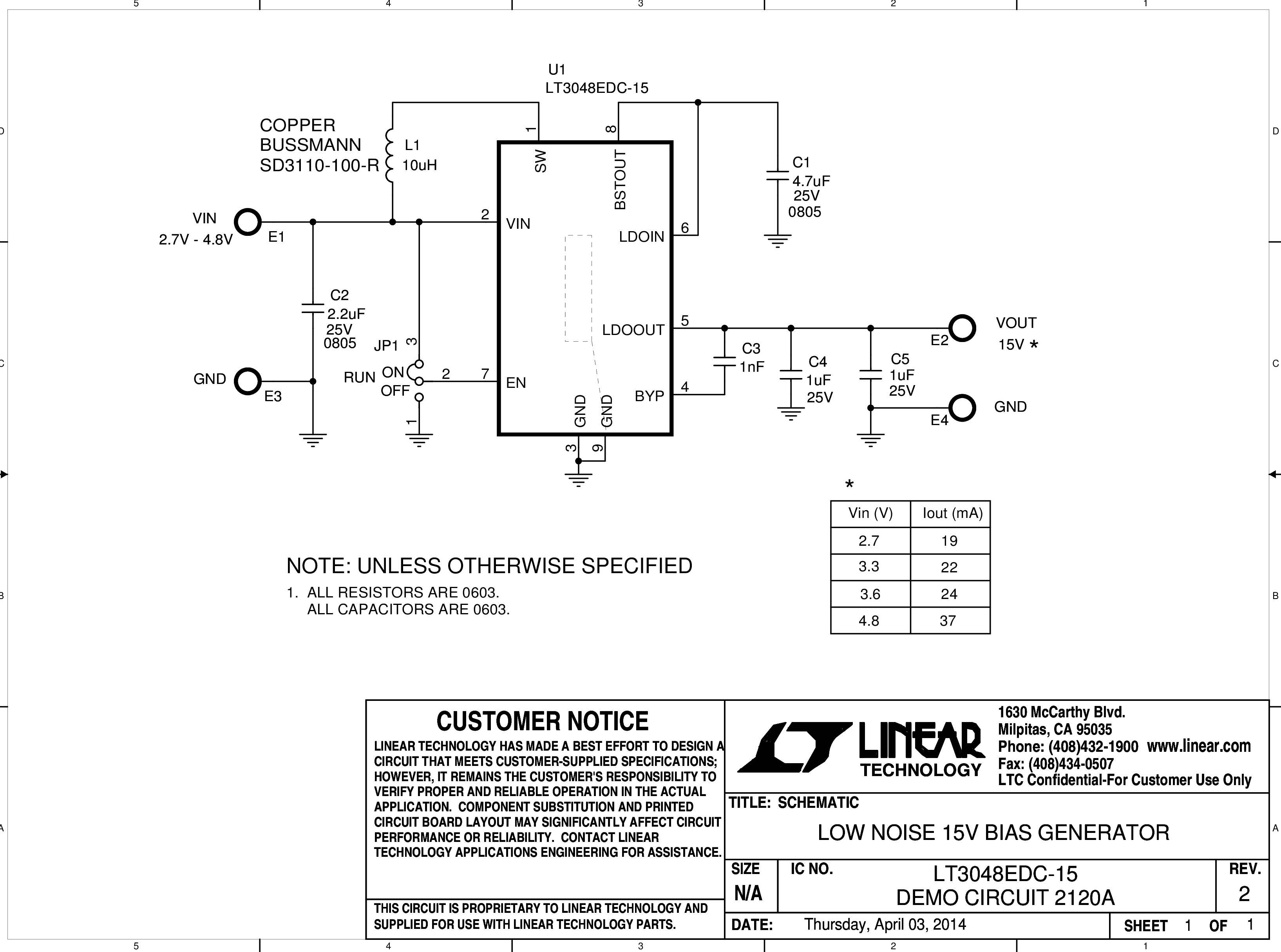

Demonstration circuit 2120A features the LT3048-15, a Boost DC/DC Converter with integrated Schottky diode and LDO in a 2mm × 2mm DFN package. This demo board is designed to convert a 2.7V to 4.8V input to a 15V output at 19mA to 35mA with low output ripple and noise. The LT3048-15 is programmed for 2MHz switching frequency.
