ADRF5476
预发布Flip-Chip, Silicon Digital Step Attenuator, 1 GHz to 72 GHz
- 产品模型
- 2
产品详情
- Usable frequency range: 1 GHz to 72 GHz
- Attenuation range: 4 dB steps to 12 dB
- Bidirectional operation
- Low insertion loss
- 0.9 dB up to 18 GHz
- 1.3 dB up to 40 GHz
- 2.1 dB up to 67 GHz
- 3.0 dB up to 72 GHz
- Typical step error
- ±0.50 dB up to 50 GHz
- ±0.75 dB up to 72 GHz
- High input linearity
- P0.1dB: >24 dBm typical
- IP3: >45 dBm typical
- High RF input power handling
- Through path: 24 dBm
- Hot switching: TBD dBm
- No low frequency spurious signals
- Parallel mode control, CMOS and LVTTL compatible
- RF switching speed (50% VCTRL to 10/90% of RF output): 10 ns

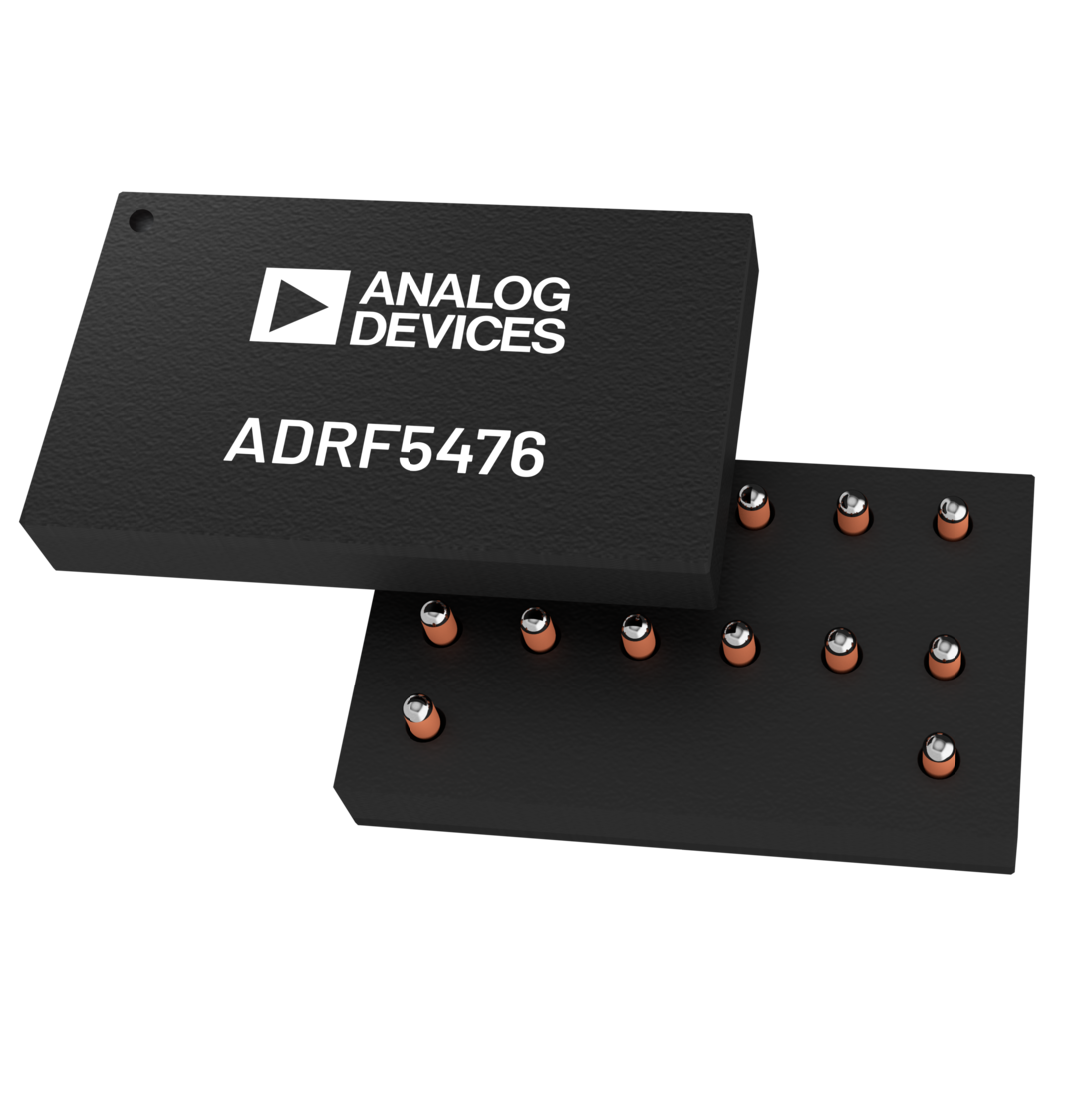

- 14-ball, 1.940 mm × 1.160 mm, bumped bare die sales
The ADRF5476 is a silicon, 2-bit digital attenuator with 12 dB attenuation control range in 4 dB steps.
The ADRF5476 is specified from 1 GHz to 72 GHz with less than 3.0 dB of insertion loss and with ±0.75 dB step error at 72 GHz. The device can operate bidirectionally, the ATTIN and ATTOUT ports of the ADRF5476 have an RF power handling capability of 24 dBm average and 24 dBm peak for all states.
The ADRF5476 draws a low current of 120 μA on the positive supply of +3.3 V and 520 μA on negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.
The ADRF5476 RF ports are designed to match a characteristic impedance of 50 Ω.
The ADRF5476 is a 14-ball, 1.940 mm × 1.160 mm, bumped bare die sales and can operate between −40°C to +105°C.
APPLICATIONS
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADRF5476BCDZ | BUMPED BARE DIE SALES | ||
| ADRF5476BCDZ-R7 | BUMPED BARE DIE SALES |
