ADI ToF系统使用VGA CCD，使得用户可以捕获640x480景深映射图像，进而提供比市场上许多其他TOF系统高4倍的分辨率。因此用户能够检测和测量与较小和更薄物体之间的距离，而这些物体本来在其他ToF系统中不可见。更多信息包含在我们的ToF技术页面中。

• 范围：<6m
• FoV：90° x 69.2°
• 波长 940nm
• 精度：1-2.5% 误差
• 帧速率：最大30 fps（取决于应用程序处理器、操作系统和主机接口）
• 分辨率：640 x 480 像素
• 连接至PC的多个接口选项（USB、ETH、WiFi）
• ToF特定API，用于系统控制和数据采集
• Linux、Windows、Mac操作系统
• 完整的开源软件框架：用于MATLAB^®、Python、RobotOS的包装器
• 平台支持软件/算法开发，同时可优化硬化
• 第三方网络有助于修改平台以满足各个生产需求

AD-96TOF1-EBZ 是经过实践检验的深度感知硬件平台。与 96Boards 生态系统中的处理器板配合使用时，可用于 3D 软件和算法开发。在开发软件和算法的同时，可以利用硬件设计实现产品化。ADI 可以推荐第三方开发商帮助定制该平台以满足各种应用需求。

根据客户偏好和开发经验的差异，可以使用不同的 96Boards 处理器板进行整体系统评估和定制开发。在夹层板上还可以使用树莓派 (Raspberry Pi) 接口，进一步提高客户灵活性。

该解决方案能够实现非常小巧和低功耗的特点，测量长达 6 米的深度，并具有出色的室外和室内性能以及 VGA 分辨率。

可用于如下应用：

• 机器人
• 工业自动化
• SLAM（同时定位和地图构建）
• 增强现实
• 虚拟现实
• 无人机
• 汽车检测

• 3D and 2D sensing
• AI Edge processing capability
• WiFi and Gigabit Ethernet connectivity
• Open Source SDK with Windows and Linux support

The AD-3DSMARTCAM1-PRZ is a 2D & 3D machine vision solution with AI edge processing capabilities. It can be used for implementing advanced machine vision applications for different industry segments including logistics, robotics, agriculture and people activity monitoring.

An open-source SDK that accompanies the hardware platform enables configuring the camera and extracting depth, IR and RGB data from the camera on the host system of your choice. Windows and Linux support are built into the SDK as well as sample code and wrappers for various languages including Python, C/C++ and MATLAB. The SDK also integrates with 3rd party technologies like OpenCV, Open3D and RoS.

APPLICATIONS

• Logistics
• Robotics
• Agriculture
• Building Management
• People Activity Monitoring

Specification Table

Camera
3D ToF sensor	FoV 90x60, Range: 4m, Resolution 640x480 @ 30fps
RGB sensor	FoV 128x68, Range 6m, Resolution 1920x1080 @ 30fps
Connectivity
WiFi	802.11a/b/g/n/ac, 867Mbps with dual stream in 802.11n, 2x2 Access Points with MIMO standard
Ethernet (optional)	1xRJ45 10M/100M/1G self-adaptive Ethernet port
Bluetooth 5.0	Bluetooth Class 1 or Class2 transmitter operation, Adaptive frequency hopping
Power supply
External power	12V DC @ 2A
Power over Ethernet (optional)	PoE+ IEEE802.3-2012, max 20W
Operating Conditions
Temperature Range	-25C to 60C
Operating Class	IP66
Computing Resources
CPU	Quad-core ARM A57 @ 1.43 GHz
GPU	128-core Maxwell
Memory	4 GB 64-bit LPDDR4 25.6 GB/s
Storage	16GB eMMC
Certifications
Safety, EMC, Environment	Eye safe and conforms to necessary regional standards

• 低失真、高分辨率源
  • DC至40kHz
  • 专有数字预失真(DPD)算法
  • –130dBc THD（1kHz，典型值）
  • 集成片上模式存储器的任意波形发生器(AWG)
  • 差分（平衡）输出高达3.6VRMS
• 多个存储波形之间的快速模式切换
• 小尺寸(60mm x 40mm)
• 低功耗、1W（典型值、静态）
• 用于集成到测试与测量系统中的SPI接口

ADMX1002是一款低失真正弦波和高分辨率任意波形发生器。此高性能模块展示了专有数字预失真算法，该算法将信号失真降低至可通过高性能数模转换器(DAC)和放大器实现的水平。其差分输出可设置为测试高性能模数转换器(ADC)、音频编解码器和其他音频IC和系统通常所需的共模电平。ADMX1002具有易于使用的SPI接口和小尺寸，可轻松嵌入到测试系统，或用于工作台进行测量和特性表征。

应用

• 高端音频测试
• 模数转换器特性表征和测试
• 传感器测试
• 频率响应和网络分析
• ATE

• Input voltage range: 2.7 V to 20 V
• Output current range: 0 mA to 200 mA
• Output voltage initial accuracy: ±0.8%
• Operating temperature range: −40°C to +125°C
• Adjustable output voltage via two external resistors from any fixed output voltage option

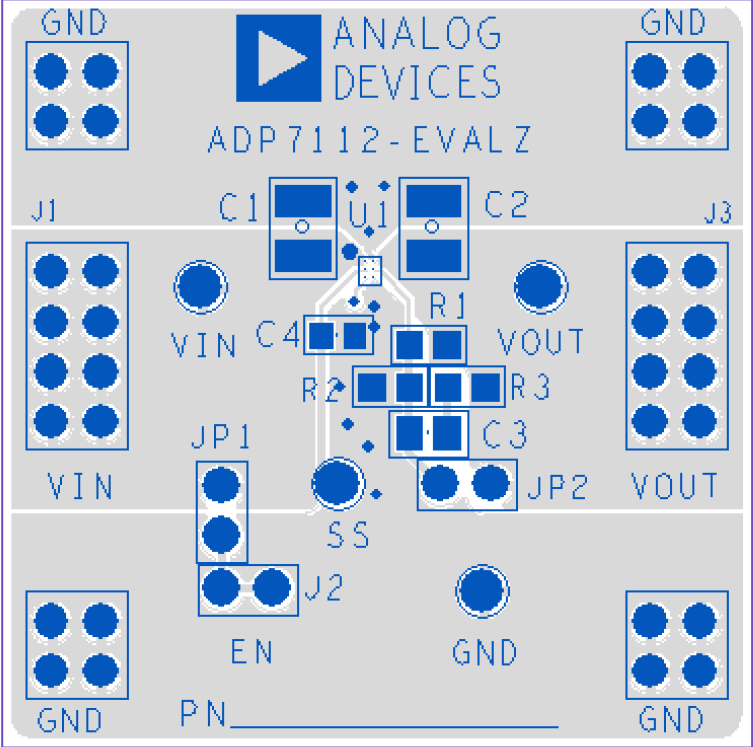

The ADP7112CB-EVALZ is an evaluation board used to demonstrate the functionality of the ADP7112 linear regulator.

Simple device measurements, such as line and load regulation, dropout voltage, and ground current, can be demonstrated with just a single voltage source, load resistors, and a voltmeter or an ammeter. For more details about the linear regulators, visit www.analog.com.

Complete specifications for the ADP7112 are available in the ADP7112 data sheet available from Analog Devices, Inc., and should be consulted in conjunction with this user guide when using the evaluation board.

• Ultra-low distortion, high-resolution source
  • DC, 50Hz to 40kHz Frequency Range
  • Proprietary digital pre-distortion (DPD) algorithm
  • –130dBc THD @ 1kHz (typ.)
  • Arbitrary waveform generation (AWG) with on-board pattern memory
  • Differential (balanced) output up to 3.5VRMS
  • Fast pattern switching between multiple stored waveforms
• Fully Differential input Acquisition Channel
• Small form-factor (60mm x 40mm)
• Low power, 1W typ. (quiescent)
• SPI interface for integration into test and measurement systems

The ADMX1001 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator with an acquisition channel. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. The signal generator and the acquisition channel can be individually controlled using separate, easy to use, SPI interfaces - combined with the module's small-form factor, the ADMX1001 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

• High-end audio test
• Analog-to-digital converter characterization and test
• Sensor and transducer test
• Frequency response and network analysis
• ATE
