ADL6316
推荐新设计使用适用于 RF DAC 和收发器的 500 MHz 至 1000 MHz 发射 VGA
- 产品模型
- 2
产品详情
- 提供从 RF DAC、收发器和 SoC 到功率放大器的接口的发射 VGA
- RF 输出频率范围:500 MHz 至 1000 MHz
- 采用偏置器提供 RF DAC 输出的内部平衡/不平衡转换器
- 使用片内 DAC 时的集成 VVA 衰减范围:20.5 dB
- 2 级高线性度放大器
- RF DSA 衰减范围:14 dB,步进分辨率为 0.45 dB
- 50 Ω 差分输入和 50 Ω 单端输出
- 可通过 4 线 SPI 完全编程
- 5 V 单电源
- 38 端子 10.5 mm × 5.5 mm LGA
ADL6316 是一款发射可变增益放大器 (VGA),它可提供从射频数模转换器 (RF DAC)、收发器和片内系统 (SoC) 到功率放大器的接口。集成式平衡/不平衡转换器和混合耦合器可以在 500 MHz 至 1000 MHz 的频率范围内实现高性能 RF 能力。
为了优化性能与功率水平,ADL6316 包含了电压可变衰减器 (VVA)、高线性度放大器和数字分级衰减器 (DSA)。集成到 ADL6316 中的所有套件都可以通过 4 线串行端口接口 (SPI) 进行编程。
ADL6316 采用高级硅锗 (SiGe)、双极互补金属氧化物半导体 (BiCMOS) 工艺制成。
应用
- FDD/TDD 宽带通信系统中的 2G/3G/4G/长期演进 (LTE)
参考资料
数据手册 1
用户手册 1
产品选型指南 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号,脚注和 3D模型 |
---|---|---|---|
ADL6316ACCZ | 38-Lead LGA (10.5mm x 5.5mm x 0.98mm w/ dual EP) | ||
ADL6316ACCZ-R7 | 38-Lead LGA (10.5mm x 5.5mm x 0.98mm w/ dual EP) |
这是最新版本的数据手册
软件资源
API Device Drivers 1
Device Application Programming Interface (API) C code drivers provided as reference code that allows the user to quickly configure the product using high-level function calls. The library acts as an abstraction layer between the application and the hardware. The API is developed in C99 to ensure agnostic processor and operating system integration. Customers can port this application layer code to their embedded systems by integrating their platform-specific code base to the API HAL layer.
To request this software package, go to the Software Request Form signed in with your MyAnalog account and under “Target Hardware” select “High Speed RF Products” and choose the desired API product package. You will receive an email notification once the software is provided to you.
Evaluation Software 0
工具及仿真模型
S-参数 1
IBIS 模型 1
ADIsimRF
ADIsimRF是一款简单易用的RF信号链计算工具。可以计算和导出多达50级的信号链级联增益、噪声、失真和功耗并绘制其曲线。ADIsimRF还包括丰富的ADI射频和混合信号元件的器件模型数据库。

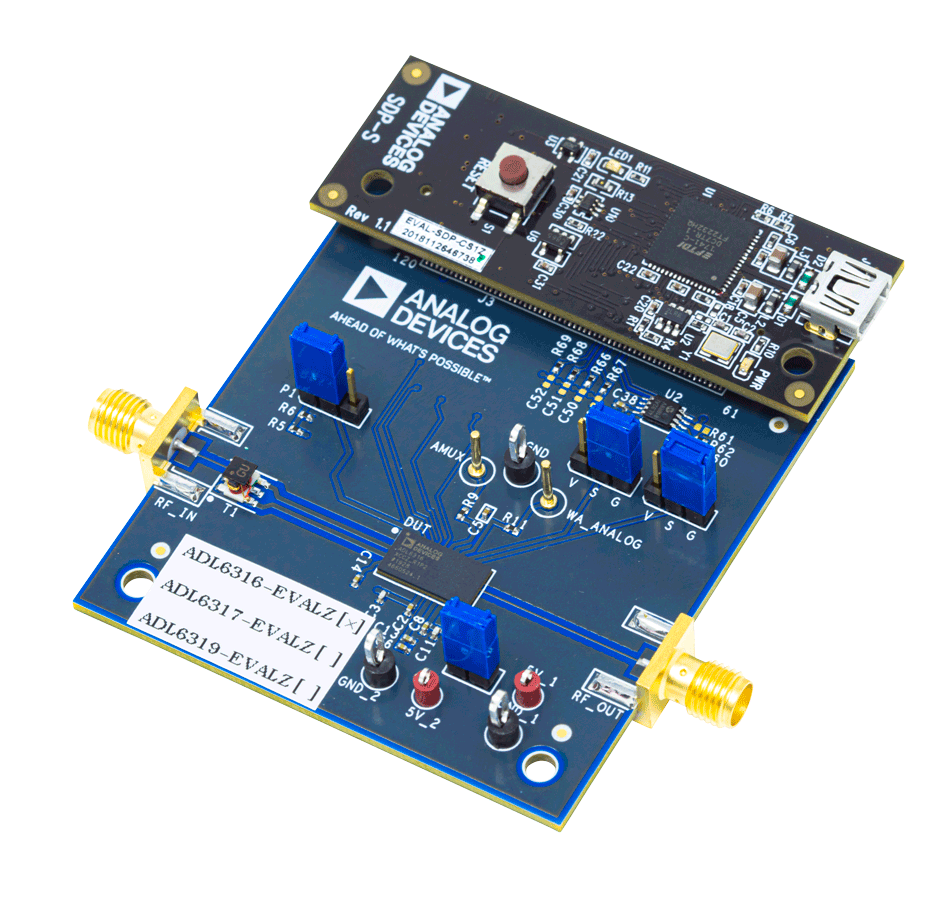

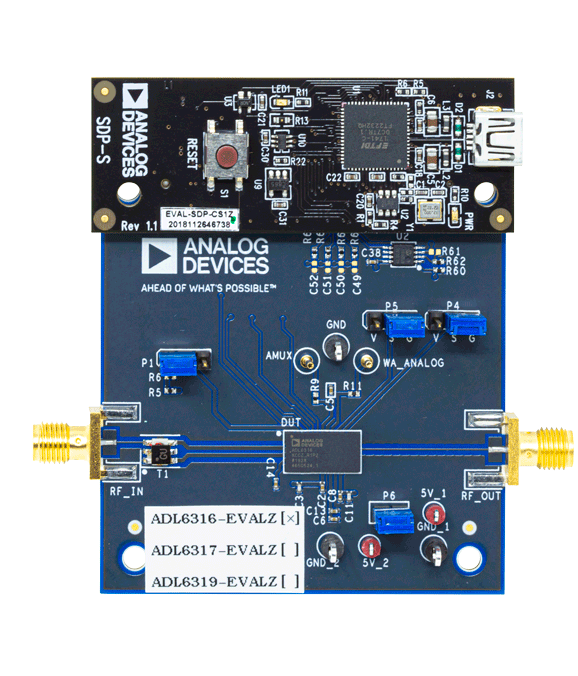

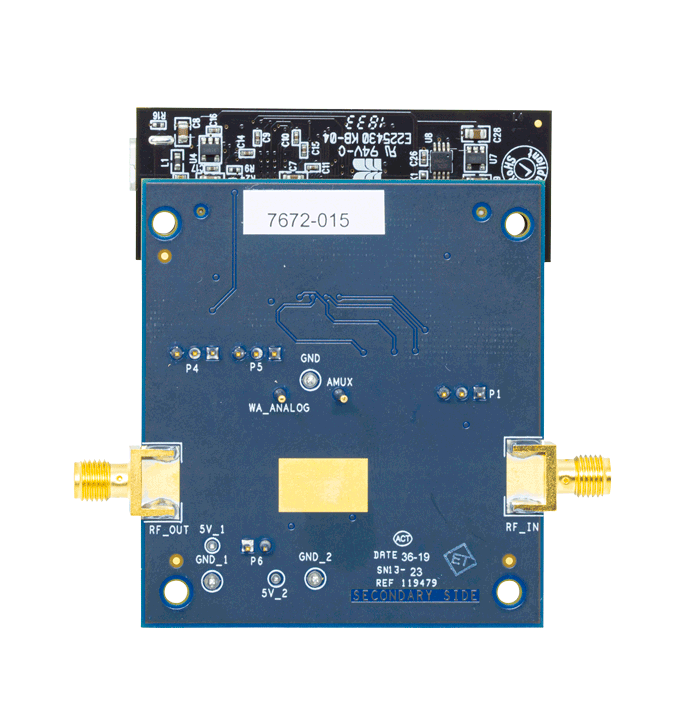

打开工具评估套件
