ADH747S
推荐新设计使用Aerospace, Fast Rise Time D-Type Flip-Flop with Programmable Output Voltage & Positive Supply, 14 Gbps
- 产品模型
- 1
产品详情
- Differential & Single-Ended Operation
- Low Power Consumption: 264 mW typ.
- Programmable Differential
- Output Voltage Swing: 700 mV – 1300 mV
- Propagation Delay: 105 ps
- Fast Rise and Fall Times: 22/20 ps
- Single Supply: +3.3V Typ.

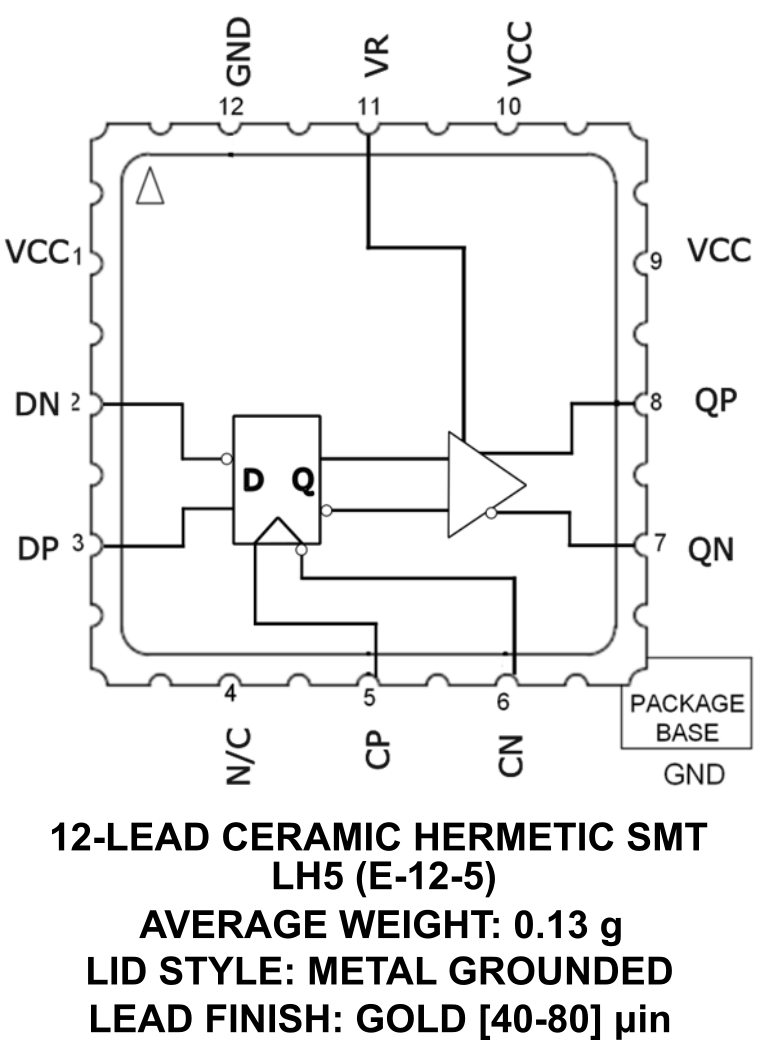

- 12 -Lead Hermetic SMT package
- Screened in accordance with MIL-PRF-38535, Class Level B
The ADH747S is a D-Type Flip-Flop designed to support data transmission rates of up to 14 Gbps, and clock frequencies as high as 14 GHz. During normal operation, data is transferred to the outputs on the positive edge of the clock. Reversing the clock inputs allows for negative-edge triggered applications. The ADH747S also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.
All input and output signals to the ADH747S are terminated with 50 Ω to VCC on-chip and may be either AC or DC coupled. Inputs and outputs can be connected directly to a 50 Ω to VCC terminated system, while DC blocking capacitors may be used if the terminating system is 50 Ω to ground. The ADH747S operates from a single +3.3V DC supply and is available in a 12 Lead hermetic SMT package.
Applications
- RF Applications
- Serial Data Transmission up to 14 Gbps
- Digital Logic Systems up to 14 GHz
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC7121LH5 | 12-Lead LCC (5.08mmm x 5.08mm) |
